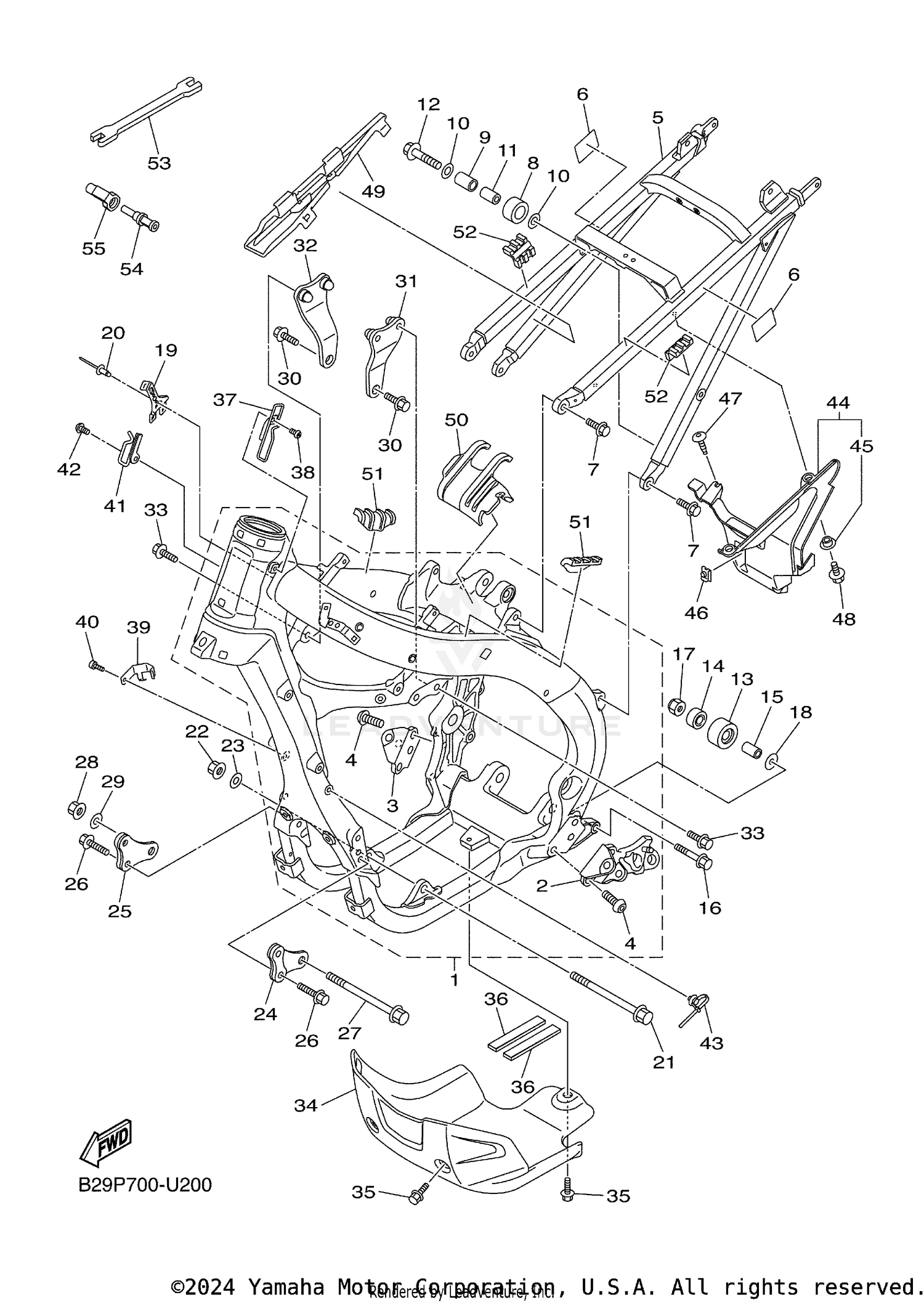

| Ref | Part Number | Description |
|---|
| 1 |
2GC-21101-01-00 |
FRONT FRAME COMP. Price: $2,502.99 |
| 2 |
2GB-21447-00-00 |
BRACKET, FOOTREST Price: $152.99 |
| 3 |
17D-21448-00-00 |
BRACKET, FOOTREST Price: $41.99 |
| 4 |
90149-10033-00 |
SCREW This part replaces 90149-10031-00. Price: $6.49 |
| 5 |
1SL-21190-10-00 |
REAR FRAME COMP. Price: $530.99 |
| 6 |
33D-23472-00-00 |
PROTECTOR Price: $5.99 |
| 7 |
90105-08230-00 |
BOLT, FLANGE Price: $4.65 |
| 8 |
30X-22178-00-00 |
TENSIONER Price: $38.99 |
| 9 |
4V4-22184-00-00 |
BUSH Price: $4.80 |
| 10 |
90201-08045-00 |
WASHER, PLATE Price: $6.49 |
| 11 |
90387-08041-00 |
COLLAR Price: $9.49 |
| 12 |
95024-08040-00 |
BOLT, FLANGE This part replaces 95022-08040-00. Price: $9.49 |
| 13 |
3JD-22178-20-00 |
TENSIONER Price: $47.99 |
| 14 |
93300-60804-00 |
BEARING This part replaces 93300-60839-00. Price: $13.49 |
| 15 |
90387-086N4-00 |
COLLAR Price: $10.49 |
| 16 |
90105-08133-00 |
BOLT, FLANGE Price: $5.49 |
| 17 |
95617-08100-00 |
NUT, U This part replaces 90185-08009-00. Price: $10.49 |
| 18 |
90201-08043-00 |
WASHER, PLATE Price: $8.49 |
| 19 |
2GB-21149-00-00 |
BRACKET, BATTERY BOX Price: $8.49 |
| 20 |
90267-32146-00 |
RIVET, BLIND Price: $8.49 |
| 21 |
90105-10456-00 |
BOLT, FLANGE Price: $18.49 |
| 22 |
90179-10658-00 |
NUT Price: $10.49 |
| 23 |
90201-10045-00 |
WASHER, PLATE Price: $9.49 |
| 24 |
B29-21417-00-00 |
BRACKET, FRONT LOWER 1 Price: $21.99 |
| 25 |
B29-21418-00-00 |
BRACKET, FRONT LOWER 2 Price: $21.99 |
| 26 |
90105-08143-00 |
BOLT, FLANGE Price: $8.49 |
| 27 |
90105-10176-00 |
BOLT, FLANGE Price: $13.49 |
| 28 |
90179-10658-00 |
NUT Price: $10.49 |
| 29 |
90201-10045-00 |
WASHER, PLATE Price: $9.49 |
| 30 |
90105-10189-00 |
BOLT, FLANGE Price: $10.49 |
| 31 |
B29-21425-00-00 |
BRACKET, REAR UPPER 1 Price: $39.99 |
| 32 |
B29-21426-00-00 |
BRACKET, REAR UPPER 2 Price: $39.99 |
| 33 |
90105-08143-00 |
BOLT, FLANGE Price: $8.49 |
| 34 |
1DX-2147A-01-00 |
GUARD, ENGINE 1 This part replaces 1DX-2147A-00-00. Price: $156.99 |
| 35 |
90119-06166-00 |
BOLT, WITH WASHER Price: $6.49 |
| 36 |
90520-04011-00 |
DAMPER, PLATE Price: $3.15 |
| 37 |
1SL-21163-01-00 |
HOLDER, CLUTCH CABLE Price: $19.99 |
| 38 |
92012-06010-00 |
BOLT, BUTTON HEAD Price: $4.65 |
| 39 |
1SM-21335-01-00 |
CLAMP, WIRE HARNESS 1 Price: $24.99 |
| 40 |
91312-05008-00 |
BOLT, HEXAGON SOCKET HEAD Price: $8.49 |
| 41 |
B29-21163-00-00 |
HOLDER, CLUTCH CABLE Price: $13.49 |
| 42 |
92012-06010-00 |
BOLT, BUTTON HEAD Price: $4.65 |
| 43 |
90464-31002-00 |
CLAMP Price: $4.82 |
| 44 |
2GB-2171E-01-00 |
COVER, SIDE 5 This part replaces 2GB-2171E-00-00. Price: $22.99 |
| 45 |
90387-065T2-00 |
COLLAR Price: $9.49 |
| 46 |
90183-06069-00 |
NUT, SPRING Price: $7.49 |
| 47 |
97702-60016-00 |
SCREW, TAPPING Price: $2.35 |
| 48 |
90110-06152-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 49 |
2GB-2171X-00-00 |
COVER, SIDE 6 Price: $9.49 |
| 50 |
2GB-24181-00-00 |
DAMPER, LOCATING 1 Price: $25.99 |
| 51 |
33D-24182-00-00 |
DAMPER, LOCATING 2 Price: $17.99 |
| 52 |
33D-24183-00-00 |
DAMPER, LOCATING 3 Price: $14.49 |
| 53 |
5ET-28166-10-00 |
WRENCH, HEXAGON Price: $35.99 |
| 54 |
18P-2467E-00-00 |
CAP Price: $7.49 |
