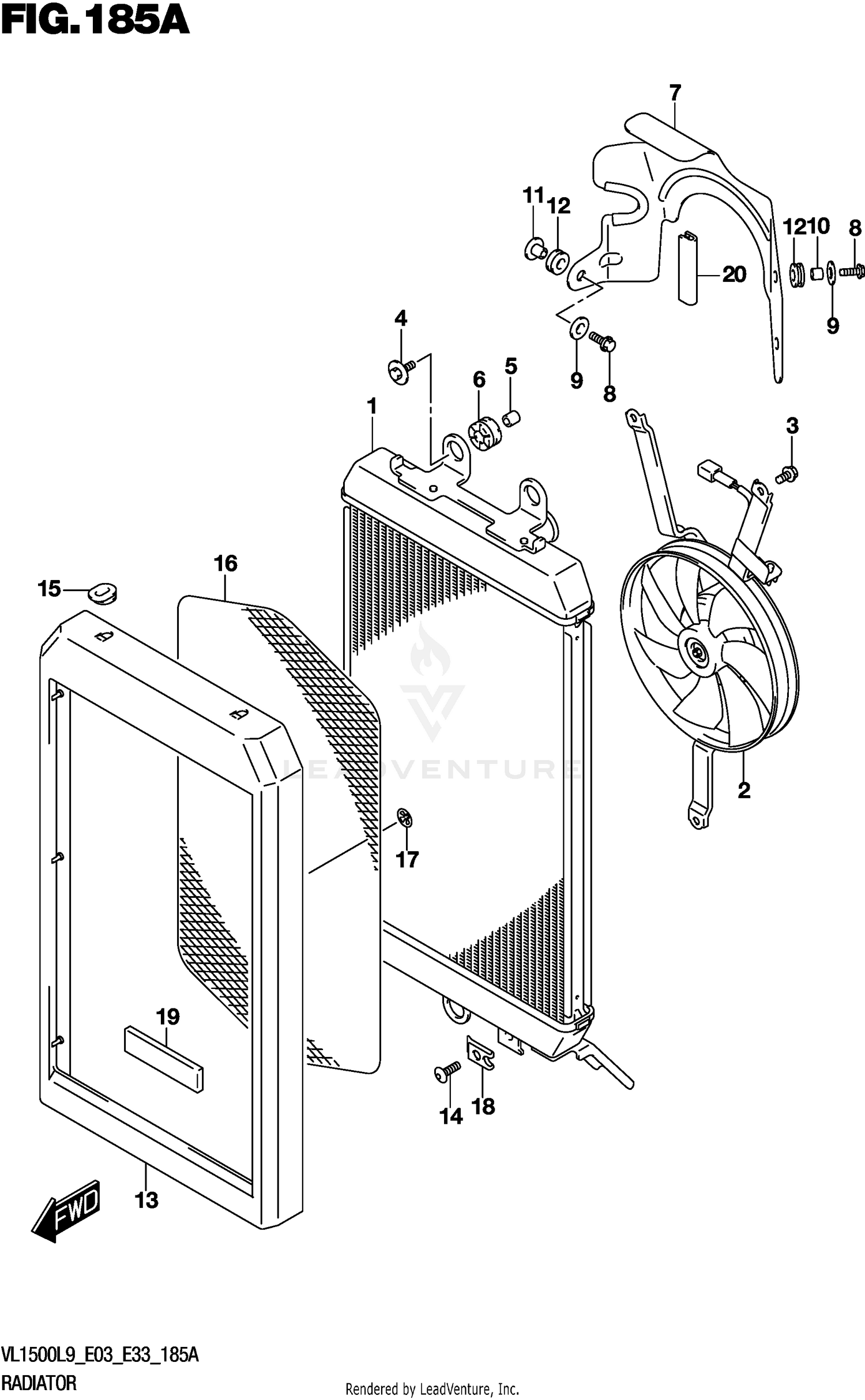

RADIATOR
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 17710-40H10 | RADIATOR ASSY Price: $1,230.66 |
| 2 | 17800-40H00 | FAN ASSY Price: $754.52 |
| 3 | 17711-40H00 | BOLT Price: $4.23 |
| 4 | 09118-06097 | BOLT (6X25) Price: $3.02 |
| 5 | 09180-06290 | SPACER (6.5X10X12) Price: $2.45 |
| 6 | 09320-10051 | CUSHION Price: $3.80 |
| 7 | 17771-40H10 | SHIELD Price: $90.01 |
| 9 | 09160-06152 | WASHER (6.5X20X1.2) Price: $2.48 |
| 12 | 09320-08083 | CUSHION Price: $8.33 |
| 13 | 17760-40H00 | COVER Price: $63.81 |
| 14 | 09139-06039 | SCREW (6X16) Price: $2.58 |
| 16 | 17765-40H00 | NET Price: $89.95 |
| 17 | 09148-03010 | NUT Price: $2.77 |
| 18 | 09148-06021 | NUT Price: $4.53 |
| 19 | 92141-43EU0 | CUSHION Price: $4.45 |
