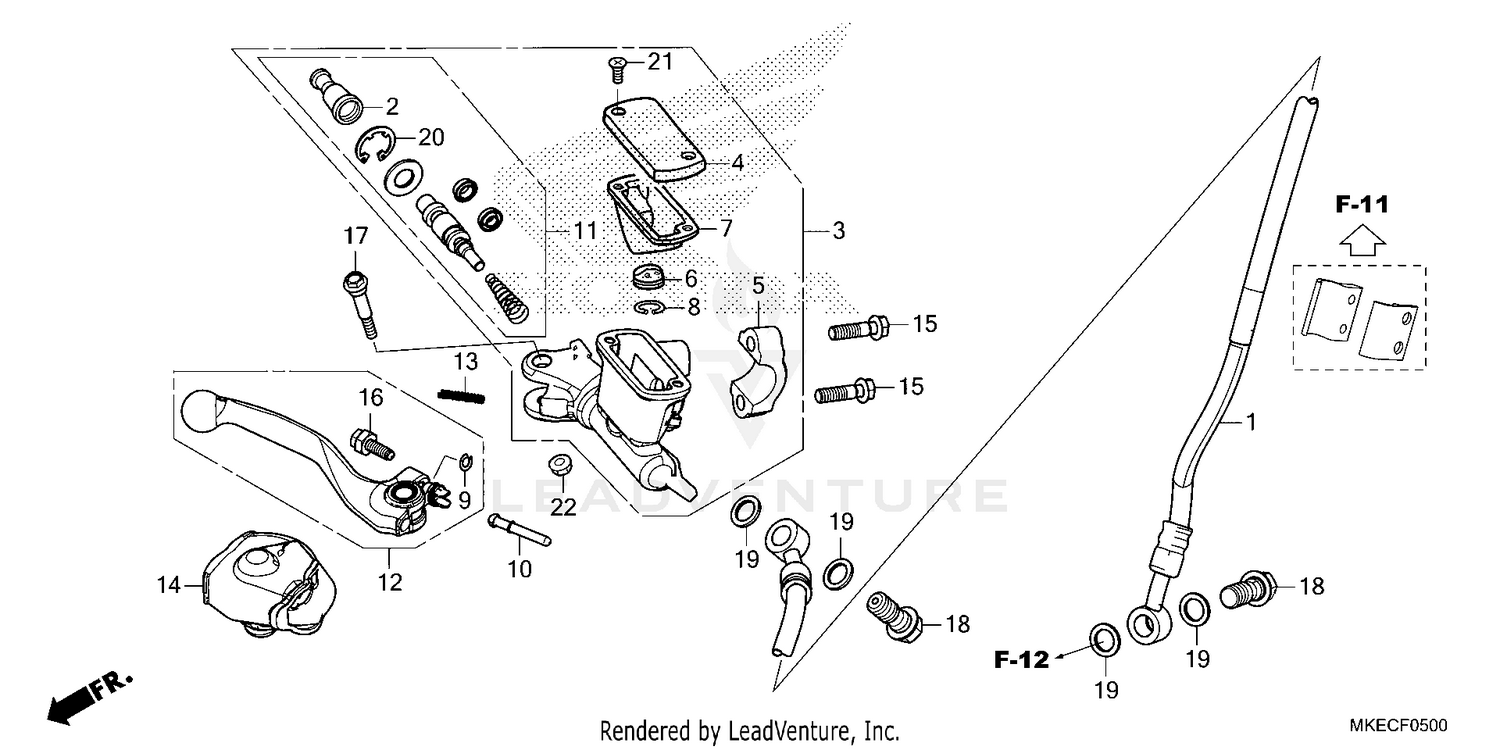

| Ref | Part Number | Description |
|---|
| 1 |
45125-MKE-A71 |
HOSE, FR. BRAKE Price: $150.09 |
| 2 |
45504-MEN-J01 |
BOOT Price: $10.51 |
| 3 |
45510-KRN-A91 |
MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) Price: $242.16 |
| 4 |
45513-KCE-671 |
CAP, MASTER CYLINDER Price: $27.89 |
| 5 |
45517-GW0-751 |
HOLDER, MASTER CYLINDER Price: $15.04 |
| 6 |
45518-MEN-J01 |
SEPARATOR Price: $8.20 |
| 7 |
45520-KA3-731 |
DIAPHRAGM Price: $16.44 |
| 8 |
45523-KA3-731 |
RING Price: $3.35 |
| 9 |
45523-MEB-003 |
RING Price: $1.07 |
| 10 |
45525-MEN-J01 |
ROD, PUSH Price: $9.73 |
| 11 |
45530-MEN-J01 |
PISTON SET, MASTER CYLINDER Price: $48.07 |
| 12 |
53171-MEN-J01 |
LEVER, R. HANDLEBAR Price: $46.05 |
| 13 |
53174-KN5-006 |
SPRING, BRAKE LEVER Price: $3.73 |
| 14 |
53176-MEN-J01 |
COVER, R. HANDLE LEVER Price: $10.20 |
| 15 |
90020-GHB-670 |
BOLT, FLANGE (6X22) Price: $2.65 |
| 16 |
90111-MEB-003 |
BOLT SET, ADJUSTING Price: $4.42 |
| 17 |
90114-MEN-J01 |
BOLT, HANDLE LEVER Price: $5.13 |
| 18 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 19 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 20 |
90651-MA5-671 |
CIRCLIP Price: $3.35 |
| 21 |
93600-04012-0G |
SCREW, FLAT (4X12) Price: $0.95 |
