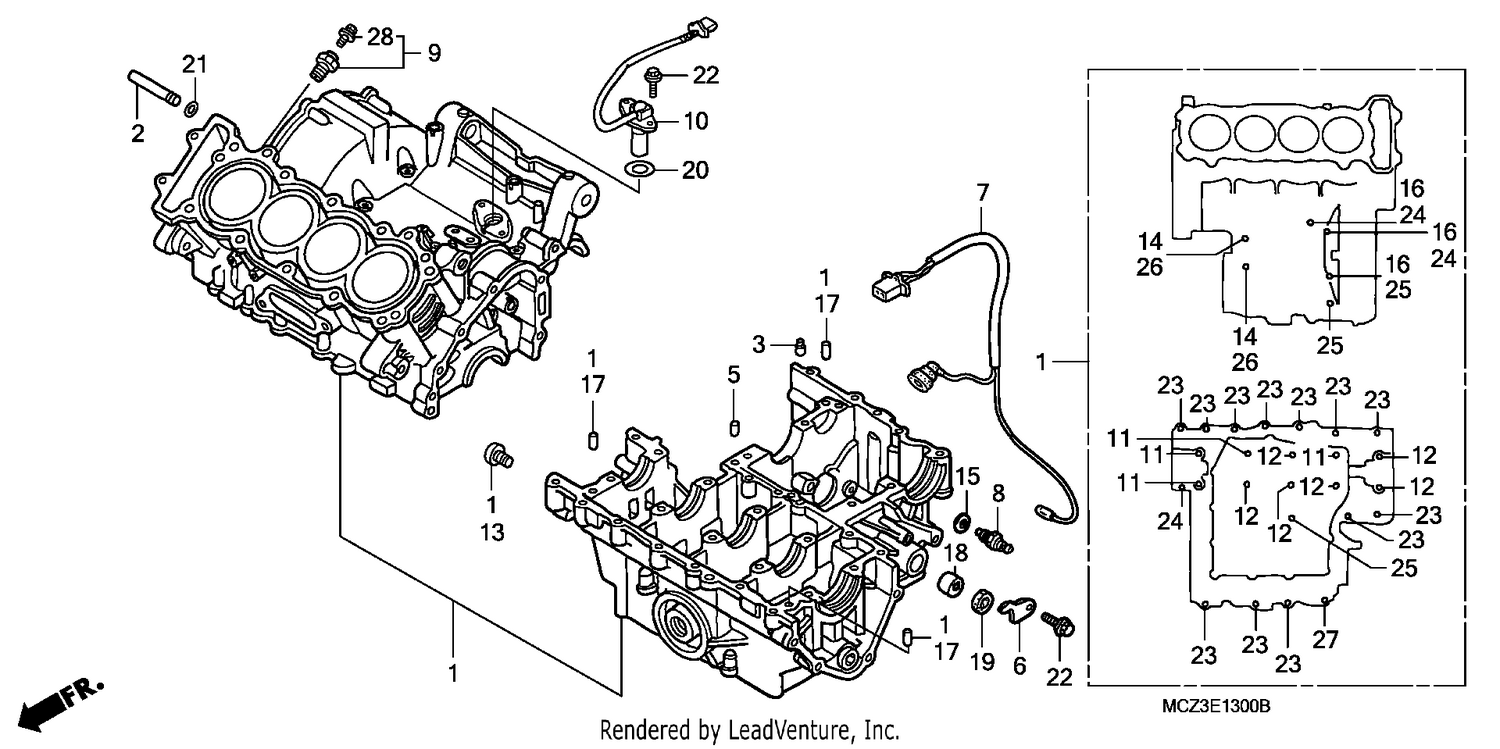

CRANKCASE

CRANKCASE

Parts (26)

RefPart NumberDescription
1 11000MCZ000 CRANKCASE SET Price: Call Us
2 11103MAT000 PLUG, SEALING Price: Call Us
3 11104MW0000 ORIFICE, 1.2MM Price: Call Us
5 15515KT8000 ORIFICE, 1.2MM Price: Call Us
6 24612MAL600 PLATE, SPINDLE Price: Call Us
7 32101MCZ000 SUB CORD, ENGINE Price: Call Us
8 35600KE8003 SWITCH ASSY., NEUTRAL (TOYO) Price: Call Us
9 37240P13013 SWITCH ASSY., OIL PRESSURE (DENSO) Price: Call Us
10 37700MCZ000 SENSOR ASSY., SPEED Price: Call Us
11 90014MASE00 BOLT, FLANGE, 9X90 Price: Call Us
12 90015MAT000 BOLT, FLANGE, 9X110 Price: Call Us
13 90048ME5000 BOLT, SEALING, 20MM Price: Call Us
14 90442028000 WASHER, SEALING, 8MM Price: Call Us
15 90443MJ6000 WASHER, NEUTRAL Price: Call Us
16 90463ML7000 WASHER, SEALING, 6.5MM Price: Call Us
17 90701MV9670 DOWEL PIN, 10X16 Price: Call Us
18 91106KM1013 BEARING, NEEDLE, 14X22X16 Price: Call Us
19 91203KA4771 OIL SEAL, 14X22X5 (NOK) Price: Call Us
20 91302MAL601 O-RING, 18.1X3.6 Price: Call Us
21 91315PN1000 O-RING, 5.2X1.9 Price: Call Us
22 957010601400 BOLT, FLANGE, 6X14 Price: Call Us
23 957010603500 BOLT, FLANGE, 6X35 Price: Call Us
24 957010605500 BOLT, FLANGE, 6X55 Price: Call Us
25 957010606500 BOLT, FLANGE, 6X65 Price: Call Us
26 957010806500 BOLT, FLANGE, 8X65 Price: Call Us
27 957011006500 BOLT, FLANGE, 10X65 Price: Call Us
