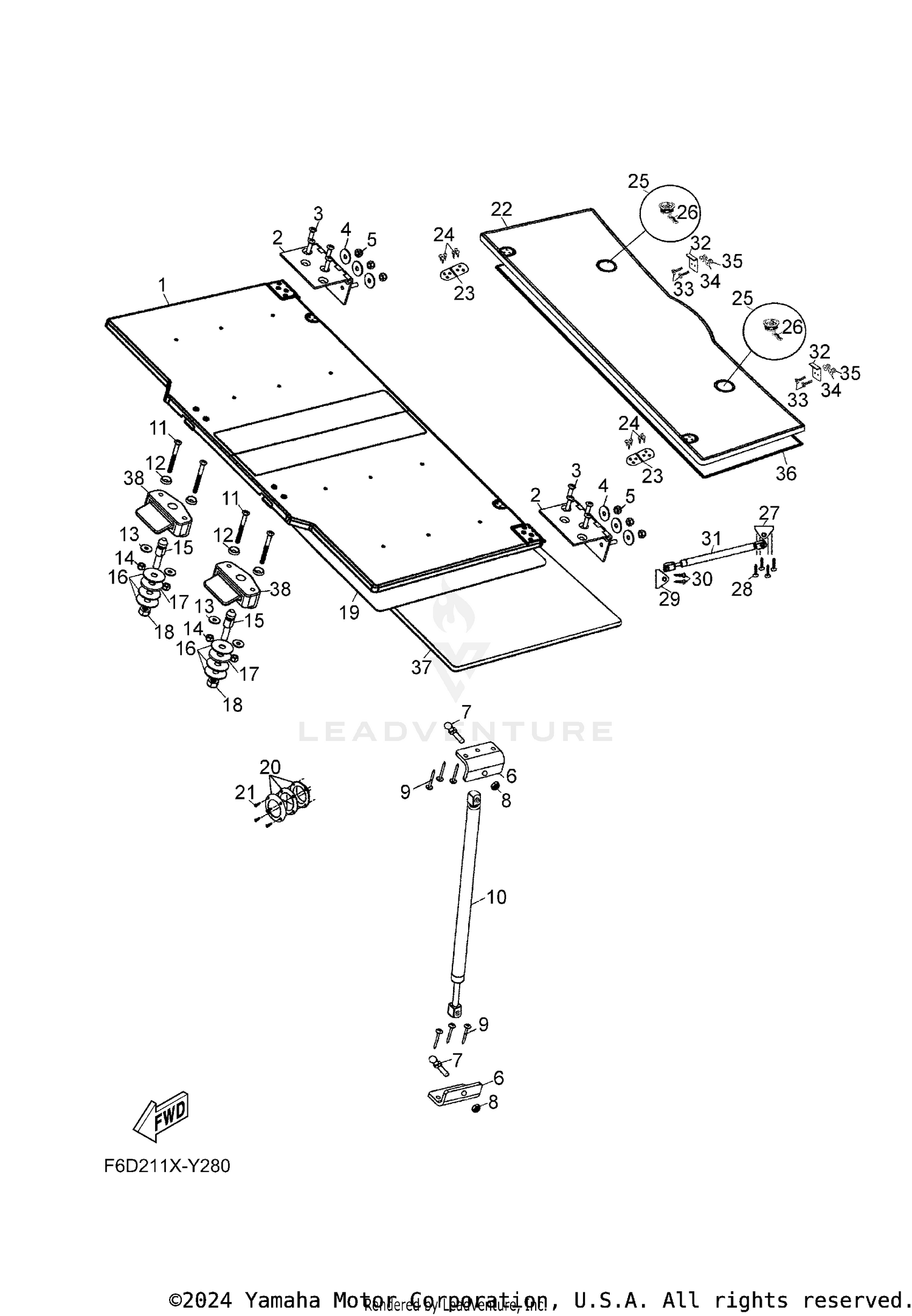

| Ref | Part Number | Description |
|---|
| 2 |
F4Y-U2816-00-00 |
HINGE 1 Price: $151.99 |
| 3 |
90152-14S16-00 |
SCREW, OVAL HEAD Price: $0.50 |
| 4 |
90209-14SA2-00 |
WASHER Price: $1.99 |
| 5 |
90185-14S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 6 |
F4A-U2899-00-00 |
BRACKET, HATCH SUPPORT 2 Price: $58.99 |
| 7 |
F3M-U146E-00-00 |
STUD, JOINT BALL Price: $17.99 |
| 8 |
90185-15S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 9 |
90167-14S24-00 |
SCREW, TAPPING Price: $4.99 |
| 10 |
F4Y-U2896-00-00 |
SUPPORT, HATCH 2 Price: $222.99 |
| 11 |
90151-14S36-00 |
SCREW, COUNTERSUNK Price: $5.99 |
| 12 |
90209-14SA6-00 |
WASHER Price: $5.99 |
| 13 |
90201-14S00-00 |
WASHER, PLATE Price: $6.99 |
| 14 |
90179-14SA2-00 |
NUT Price: $3.99 |
| 15 |
GP1-U3774-01-00 |
PIN Price: $29.99 |
| 16 |
90209-17SA5-00 |
WASHER Price: $5.99 |
| 17 |
GP1-U5194-01-00 |
WASHER, SPECIAL Price: $17.99 |
| 18 |
95680-10100-00 |
NUT, U Price: $6.99 |
| 19 |
F4Y-U3262-41-00 |
SEAL This part replaces F4Y-U3262-20-00. Price: $107.99 |
| 20 |
F5K-U273A-00-00 |
PLATE 2 ASSY Price: $57.99 |
| 21 |
90161-08SA4-00 |
SCREW, TAPPING Price: $4.99 |
| 23 |
F2A-U2826-00-00 |
HINGE 5 Price: $44.99 |
| 24 |
90161-08SA4-00 |
SCREW, TAPPING Price: $4.99 |
| 25 |
F3H-U5540-10-00 |
LOCK ASSY. Price: $42.99 |
| 26 |
F3H-U2844-10-00 |
LEVER, HATCH LOCK Price: $5.49 |
| 27 |
F1C-U2899-00-00 |
BRACKET, HATCH SUPPORT 2 Price: $11.99 |
| 28 |
90167-10S08-00 |
SCREW, #10 X 1/2" Price: $4.99 |
| 29 |
F3F-U2899-00-00 |
BRACKET, HATCH SUPPORT 2 Price: $11.99 |
| 30 |
90167-10S08-00 |
SCREW, #10 X 1/2" Price: $4.99 |
| 31 |
F1C-U2896-10-00 |
SUPPORT, HATCH 2 Price: $62.99 |
| 32 |
GP1-U4848-01-00 |
CATCH Price: $17.99 |
| 33 |
90157-10S12-00 |
SCREW, PAN HEAD Price: $4.99 |
| 34 |
90201-10S00-00 |
WASHER, PLATE Price: $4.99 |
| 35 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 36 |
F4Y-U3262-30-00 |
SEAL Price: $57.99 |
| 37 |
F4Y-U5164-10-00 |
SOUND-PROOF 1 Price: $138.99 |
