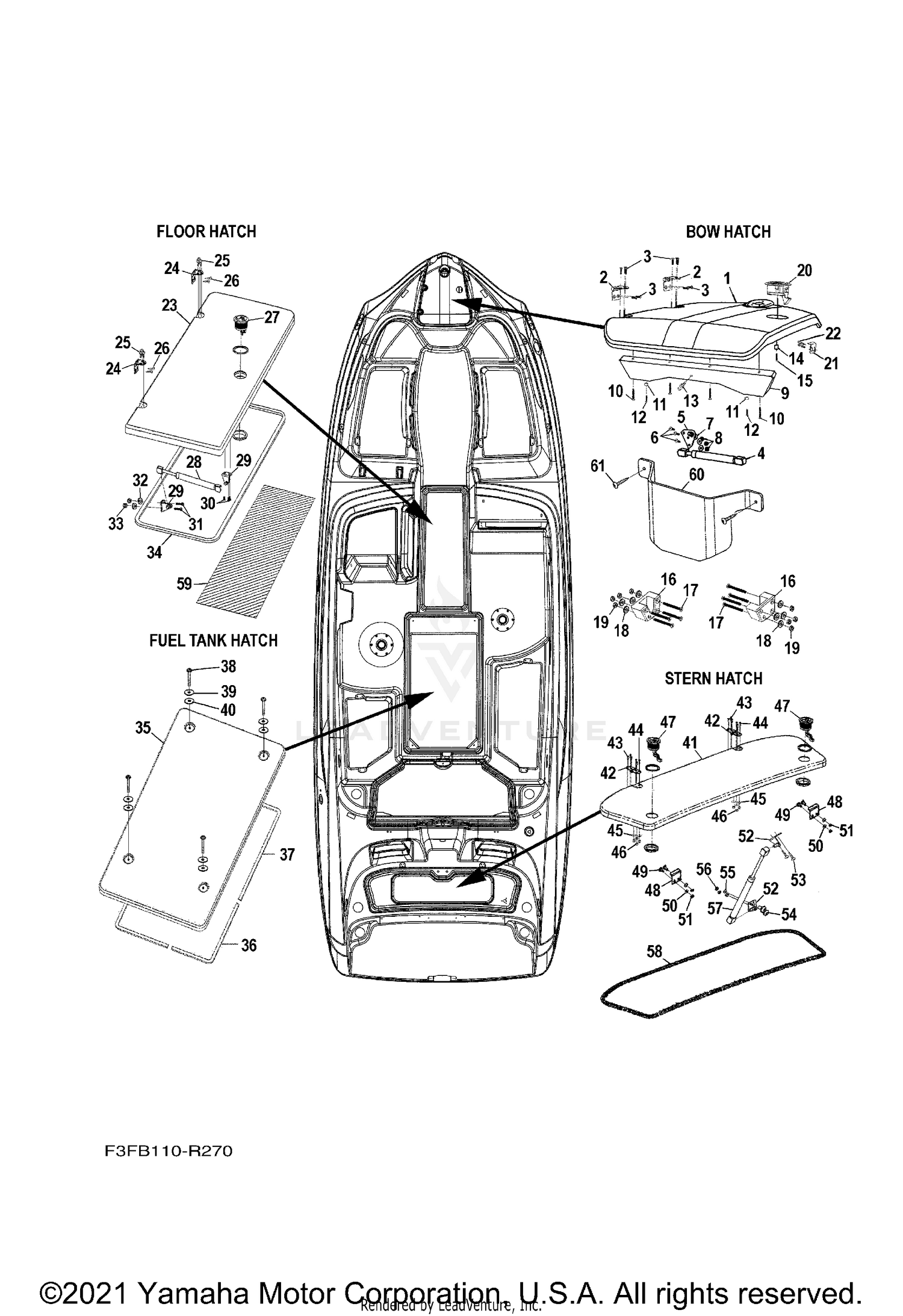

| Ref | Part Number | Description |
|---|
| 1 |
F3F-U476A-00-00 |
LID,LOCKER BOW Price: $655.99 |
| 2 |
F3F-U2826-10-00 |
HINGE 5 Price: $31.99 |
| 3 |
90161-08SA4-00 |
SCREW, TAPPING Price: $4.99 |
| 4 |
F3R-U2896-00-00 |
SUPPORT, HATCH 2 Price: $28.99 |
| 5 |
F1C-U288B-00-00 |
BASE, HATCH SUPPORT Price: $11.99 |
| 6 |
90157-10S12-00 |
SCREW, PAN HEAD Price: $4.99 |
| 7 |
90201-10S00-00 |
WASHER, PLATE Price: $4.99 |
| 8 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 9 |
F3F-U474B-00-00 |
BRKT., LOCKER UNDER Price: $66.99 |
| 10 |
90162-12S24-00 |
SCREW, TAPPING Price: $4.99 |
| 11 |
F1C-U5741-01-00 |
CUSHION, RUBBER Price: $5.99 |
| 12 |
90167-06S10-00 |
SCREW, TAPPING Price: $5.99 |
| 13 |
F1C-U515H-00-00 |
SHAFT A Price: $19.99 |
| 14 |
GP1-U8368-00-00 |
CLAMP Price: $3.99 |
| 15 |
90161-06S12-00 |
SCREW, COUTERSUNK Price: $5.99 |
| 16 |
F3F-U4949-00-00 |
BRACKET Price: $24.99 |
| 17 |
90151-14S40-00 |
SCREW, COUNTERSUNK Price: $0.70 |
| 18 |
90201-14S00-00 |
WASHER, PLATE Price: $6.99 |
| 19 |
90185-14S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 20 |
F3F-U5540-00-00 |
LOCK ASSY. Price: $154.99 |
| 21 |
F3F-U4848-00-00 |
CATCH Price: $10.99 |
| 22 |
90167-08S08-00 |
SCREW, TAPPING Price: $4.99 |
| 23 |
F2D-U5111-10-00 |
HATCH, FLOOR Price: $858.99 |
| 24 |
F3F-U2826-10-00 |
HINGE 5 Price: $31.99 |
| 25 |
90162-10S10-00 |
SCREW, TAPPING Price: $5.99 |
| 26 |
90162-10S10-00 |
SCREW, TAPPING Price: $5.99 |
| 27 |
F3H-U5540-00-00 |
LOCK ASSY. Price: $42.99 |
| 28 |
F3F-U2896-20-00 |
SUPPORT, HATCH 2 Price: $27.99 |
| 29 |
F1C-U2899-00-00 |
BRACKET, HATCH SUPPORT 2 Price: $11.99 |
| 30 |
90167-10S08-00 |
SCREW, #10 X 1/2" Price: $4.99 |
| 31 |
90157-10S12-00 |
SCREW, PAN HEAD Price: $4.99 |
| 32 |
90201-10S00-00 |
WASHER, PLATE Price: $4.99 |
| 33 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 34 |
F2D-U266C-00-00 |
PACKING 4 Price: $71.99 |
| 35 |
F3F-U5106-00-00 |
HATCH COMP. Price: $1,315.99 |
| 36 |
F3F-U266C-00-00 |
PACKING 4 Price: $42.99 |
| 37 |
F3F-U266C-10-00 |
PACKING 4 Price: $17.99 |
| 38 |
90111-08832-00 |
BOLT,HEX. SOCKET BUTTON Price: $6.99 |
| 39 |
90209-15SA3-00 |
WASHER Price: $4.10 |
| 40 |
GP1-U5194-01-00 |
WASHER, SPECIAL Price: $17.99 |
| 41 |
F2D-U518A-10-00 |
STERN HATCH ASSY Price: $816.99 |
| 42 |
F2A-U2826-00-00 |
HINGE 5 Price: $44.99 |
| 43 |
90162-10S10-00 |
SCREW, TAPPING Price: $5.99 |
| 44 |
90152-10S18-00 |
SCREW, COUNTERSUNK Price: $5.99 |
| 45 |
90201-10S00-00 |
WASHER, PLATE Price: $4.99 |
| 46 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 47 |
F3H-U5540-10-00 |
LOCK ASSY. Price: $42.99 |
| 48 |
GP1-U4848-01-00 |
CATCH Price: $17.99 |
| 49 |
90157-10S12-00 |
SCREW, PAN HEAD Price: $4.99 |
| 50 |
90209-10SB1-00 |
WASHER Price: $5.99 |
| 51 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 52 |
F1C-U2899-00-00 |
BRACKET, HATCH SUPPORT 2 Price: $11.99 |
| 53 |
90167-10S08-00 |
SCREW, #10 X 1/2" Price: $4.99 |
| 54 |
90157-10S12-00 |
SCREW, PAN HEAD Price: $4.99 |
| 55 |
90201-10S00-00 |
WASHER, PLATE Price: $4.99 |
| 56 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 57 |
F1C-U2896-10-00 |
SUPPORT, HATCH 2 Price: $62.99 |
| 58 |
F2J-U3262-00-00 |
SEAL Price: $20.99 |
| 59 |
F2A-U3844-00-00 |
MAT Price: $135.99 |
| 60 |
F3F-U166D-00-00 |
PLATE, ANCHOR STOPPER Price: $92.99 |
