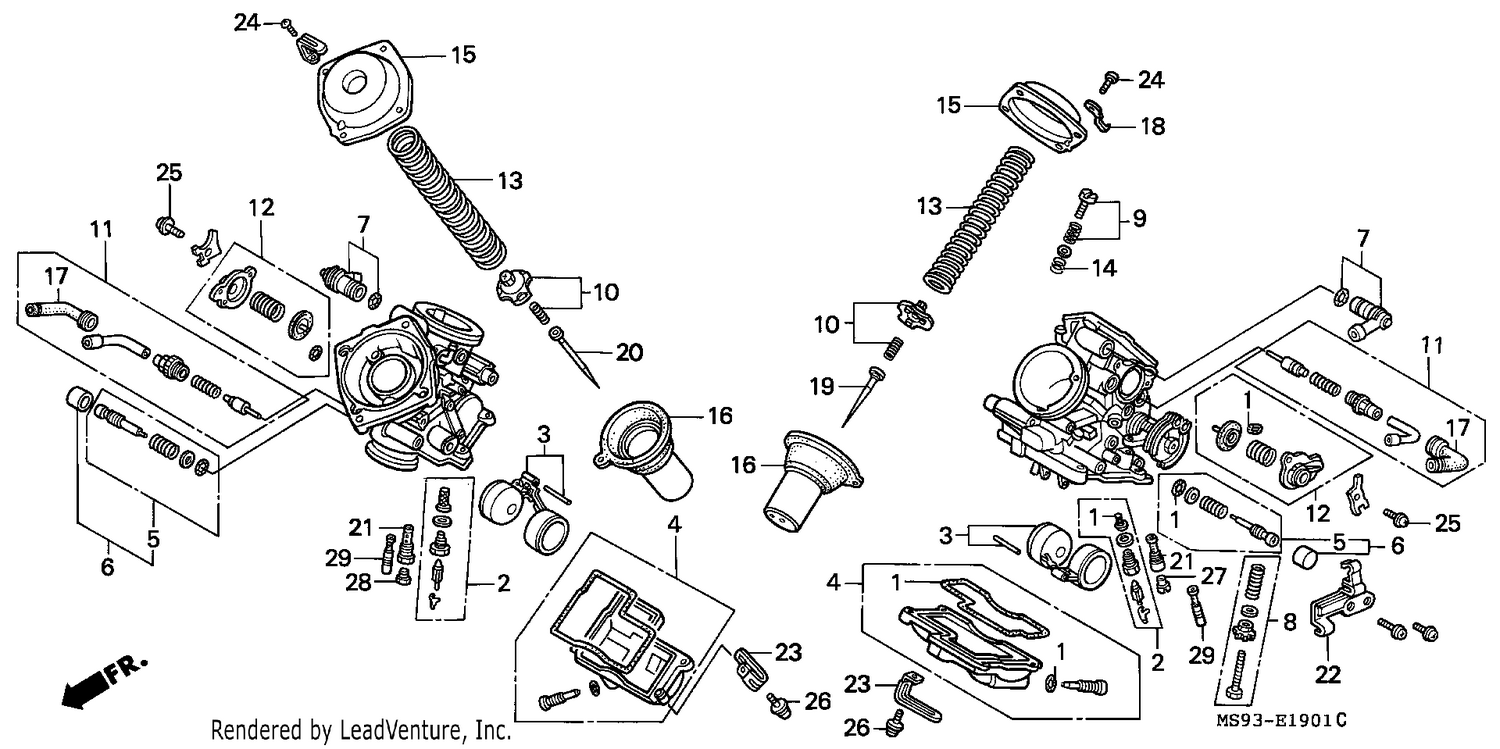

CARBURETOR (COMPONENT PARTS)

CARBURETOR (COMPONENT PARTS)

Parts (26)

RefPart NumberDescription
1 16010MR1691 GASKET SET Price: Call Us
2 16011MR6671 VALVE SET, FLOAT Price: Call Us
3 16013ML7004 FLOAT SET Price: Call Us
4 16015MN8014 CHAMBER SET, FLOAT Price: Call Us
6 16016MS8681 SCREW SET A Price: Call Us
8 16028MN8910 SCREW SET Price: Call Us
9 16029MN4003 SCREW SET Price: Call Us
10 16037MN9004 PLATE SET, VALVE Price: Call Us
11 16046MN8004 VALVE SET, STARTER Price: Call Us
12 16048MR1691 VALVE SET, AIR CUT Price: Call Us
13 16050MS9004 SPRING Price: Call Us
14 16052ME9672 SPRING Price: Call Us
15 16107MM8004 TOP COMP. Price: Call Us
16 16111MW6650 PISTON COMP., VACUUM Price: Call Us
17 16118ME9671 CAP, CABLE SEALING Price: Call Us
18 16119KM4004 BINDER Price: Call Us
19 16151MW6650 NEEDLE COMP., RR. JET Price: Call Us
20 16131MW6650 NEEDLE COMP., FR. JET Price: Call Us
21 16165MS9004 HOLDER, NEEDLE JET Price: Call Us
22 16169MM9621 STAY COMP., WIRE Price: Call Us
23 16179ME9751 BINDER Price: Call Us
24 93500040101A SCREW, PAN, 4X10 Price: Call Us
25 938920401210 SCREW-WASHER, 4X12 Price: Call Us
26 938920401610 SCREW-WASHER, 4X16 Price: Call Us
27 991013931320 JET, MAIN, #132 Price: Call Us
28 991013931280 JET, MAIN, #128 Price: Call Us
