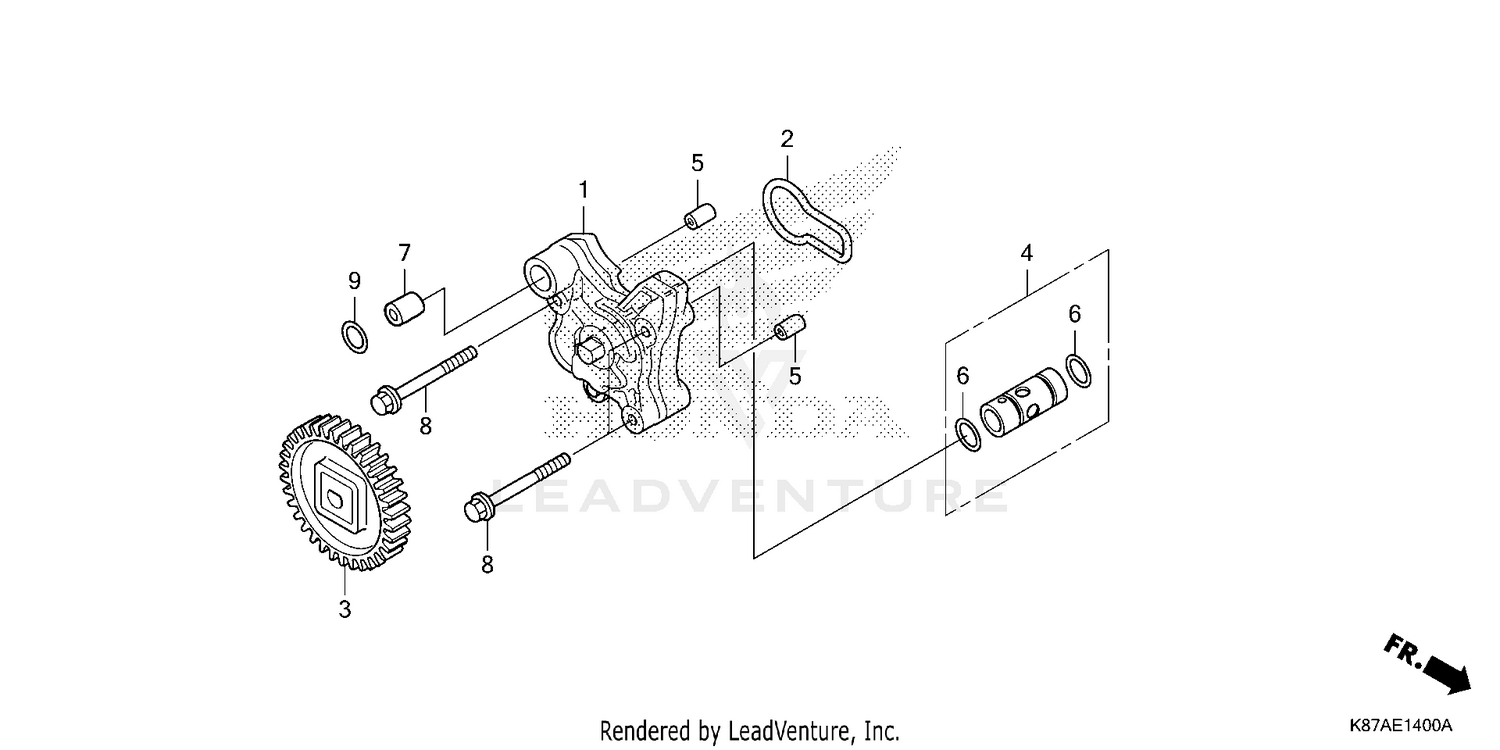

OIL PUMP
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 15100-KYJ-900 | PUMP ASSY., OIL Price: $98.71 |
| 2 | 15119-KYJ-710 | GASKET, OIL PUMP Price: $0.33 |
| 3 | 15130-K0A-DB0 | GEAR, OIL PUMP (32T) Price: $6.96 |
| 4 | 15220-KYJ-900 | VALVE ASSY., RELIEF Price: $35.09 |
| 5 | 90702-KFM-900 | PIN, DOWEL (8X12) Price: $0.76 |
| 6 | 91301-KYJ-901 | O-RING (11.8X1.9) Price: $0.51 |
| 7 | 94301-12160 | PIN A, DOWEL (12X16) Price: $2.58 |
| 8 | 95701-06045-07 | BOLT, FLANGE (6X45) This part replaces 95701-06045-00. Price: $2.27 |
