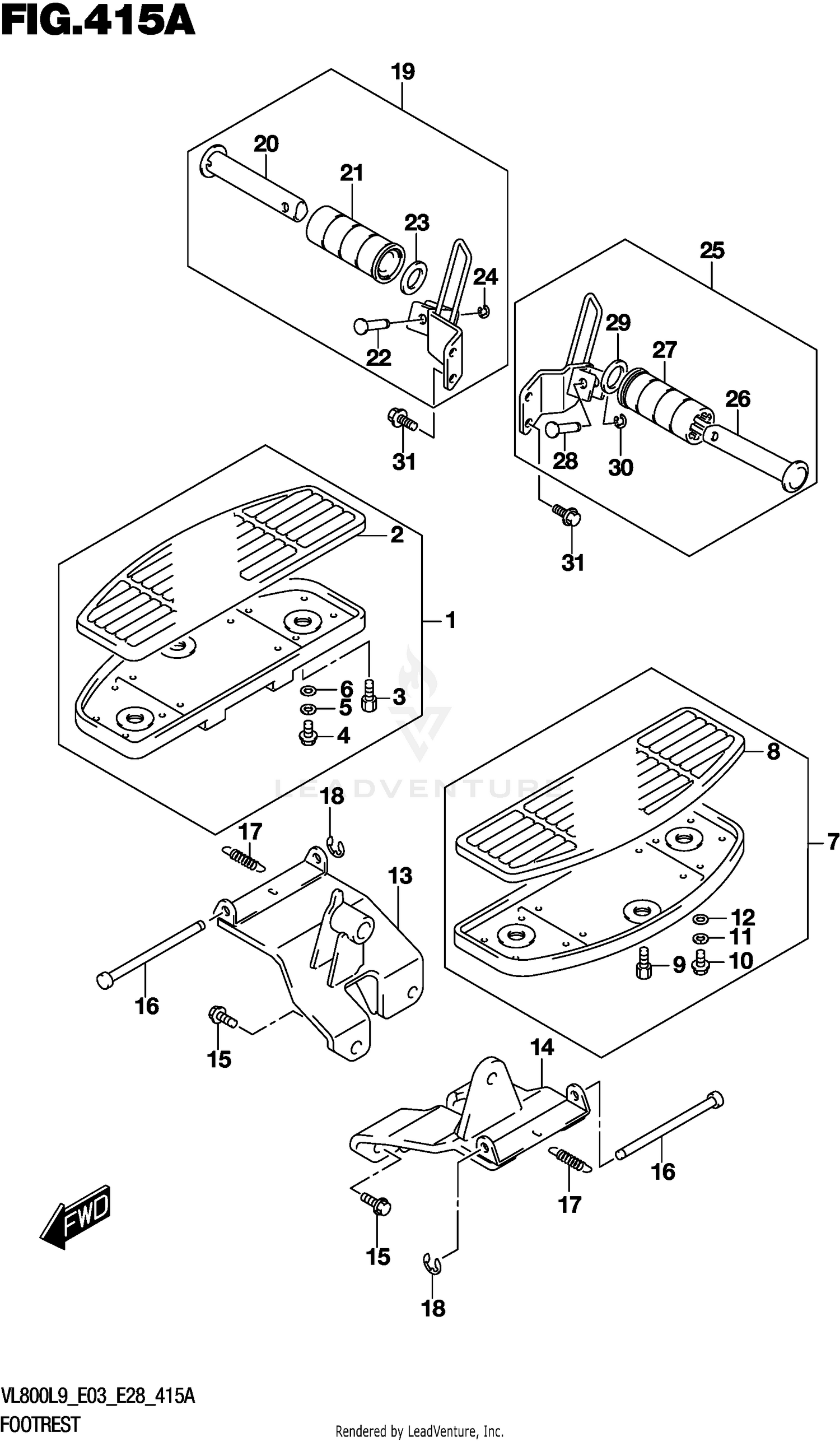

FOOTREST
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 43501-10F12 | FOOTREST ASSY,FRONT RH This part replaces 43501-10F11. Price: $223.69 |
| 4 | 01550-0610A | BOLT Price: $2.37 |
| 7 | 43502-10F12 | FOOTREST ASSY,FRONT LH This part replaces 43502-10F11. Price: $223.69 |
| 10 | 01550-0610A | BOLT Price: $2.37 |
| 13 | 43510-41F30 | BRACKET,FR FOOTREST RH Price: $104.50 |
| 14 | 43520-41F30 | BRACKET,FR FOOTREST LH Price: $108.03 |
| 15 | 01580-1030B | BOLT Price: $5.45 |
| 16 | 43539-10F00 | PIN,FRONT FOOTREST Price: $10.32 |
| 17 | 09443-11033 | SPRING Price: $5.49 |
| 18 | 08332-1106A | E RING Price: $1.73 |
| 19 | 43600-41F60 | FOOTREST ASSY,PILLION RH Price: $86.15 |
| 23 | 09160-19024 | WASHER (19.5X32X2) Price: $3.12 |
| 24 | 08332-1104B | E-RING Price: $2.18 |
| 25 | 43700-41F60 | FOOTREST ASSY,PILLION LH Price: $86.15 |
| 29 | 09160-19024 | WASHER (19.5X32X2) Price: $3.12 |
| 30 | 08332-1104B | E-RING Price: $2.18 |
