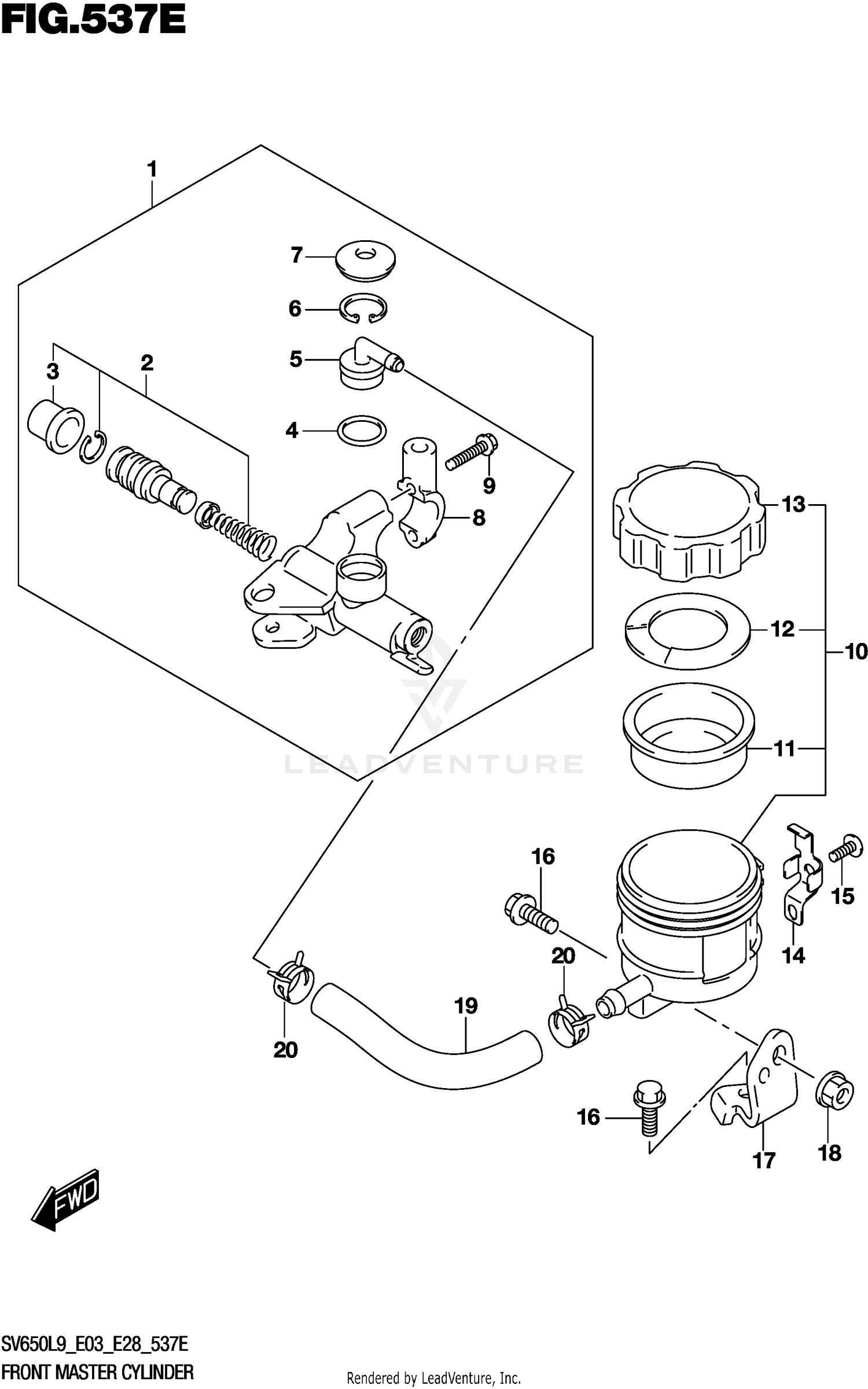

FRONT MASTER CYLINDER (SV650XAL9 E28)
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 59600-18G10 | CYLINDER ASSY,FRONT MASTER Price: $292.81 |
| 10 | 59740-47H10 | TANK ASSY,FR RESERVOIR Price: $60.54 |
| 14 | 59743-17C00 | PLATE,RESERVOIR TANK CAP Price: $11.50 |
| 15 | 02142-0410A | SCREW Price: $1.48 |
| 16 | 09103-06526 | BOLT,CONNECTOR (6X16) Price: $1.87 |
| 17 | 59751-18K00 | BRACKET,FR RESERVOIR TANK Price: $14.16 |
| 18 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 19 | 59731-47H00 | HOSE, RESERVOIR TANK This part replaces 59731-01H00. Price: $20.41 |
