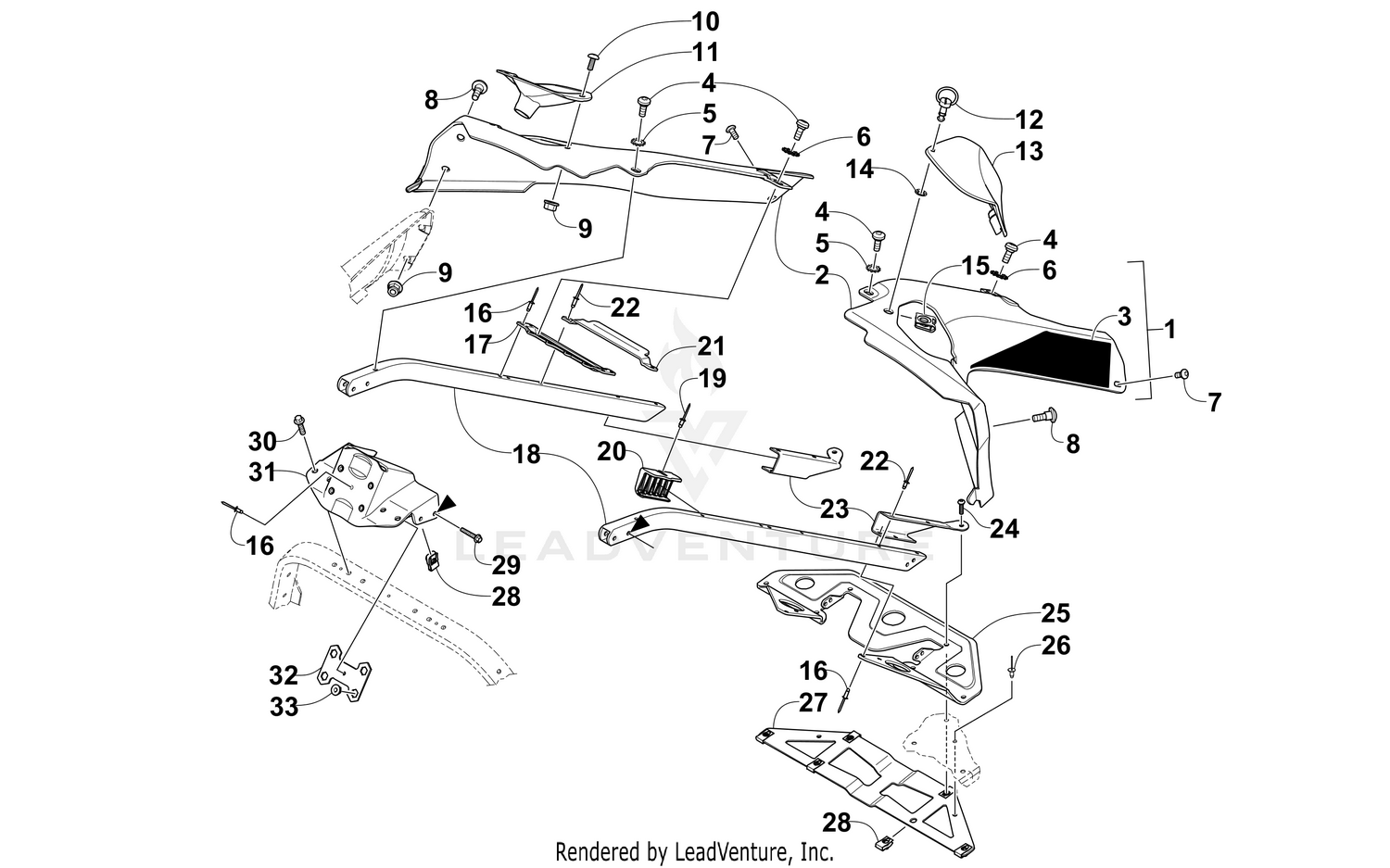

SEAT SUPPORT ASSEMBLY [103157]

Parts (34)

Ref	Part Number	Description
2	5706-554	Spar, Rear - Right - Blue Price: $216.95
2	5706-555	Spar, Rear - Left - Blue Price: $540.95
3	9611-208	Decal, Rear Spar - Right Price: $10.44
3	9611-209	Decal, Rear Spar - Left Price: $0.57
4	0423-396	Screw, Self-Tapping Price: $3.38
5	8053-212	Washer, Lock Price: $0.23
6	8053-242	Washer, External Tooth Lock Price: $1.53
7	8470-510	Screw, Machine Price: $0.71
8	0423-355	Screw, Shoulder Price: $1.08
9	8427-602	Nut, Hex Price: $0.23
10	0423-419	SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK Price: $1.08
11	5606-161	Cup, Recoil Price: $19.95
12	1623-746	Pin, Retaining Price: $7.23
13	6606-631	Cover, Access - Oil Price: $63.95
14	1623-747	Nut, Push Price: $3.14
15	1623-748	Clip, Retaining Price: $6.06
16	8060-488	Rivet, Blind Price: $0.48
17	4606-329	Bracket, Crossover Price: $4.09
18	5606-092	Tube, Support - Right Price: $90.95
18	5706-049	Tube, Support - Non-Adjustable - Left Hand Mach. Price: $67.95
19	8061-508	Rivet Price: $1.53
20	6606-271	Spacer, Alignment Price: $7.81
21	6606-096	Bracket, Crossover - Seat-Base Price: $18.13
22	8060-484	Rivet Price: $0.46
23	5606-096	Bracket, Adjustable - Right Price: $35.95
23	5606-097	Bracket, Adjustable - Left Price: $35.95
24	8470-520	Screw, Machine Price: $0.48
25	5606-094	Plate, Support - Lower Price: $64.75
26	8060-686	Rivet - Zinc Price: $0.46
28	1623-637	Clip, U-Nut Price: $2.61
29	8408-535	Screw, Cap Price: $2.30
30	8408-625	Screw, Cap Price: $0.59
31	4606-328	Plate, Support - Upper Price: $285.95
32	0605-948	Bracket, Nut Holder Price: $3.39
