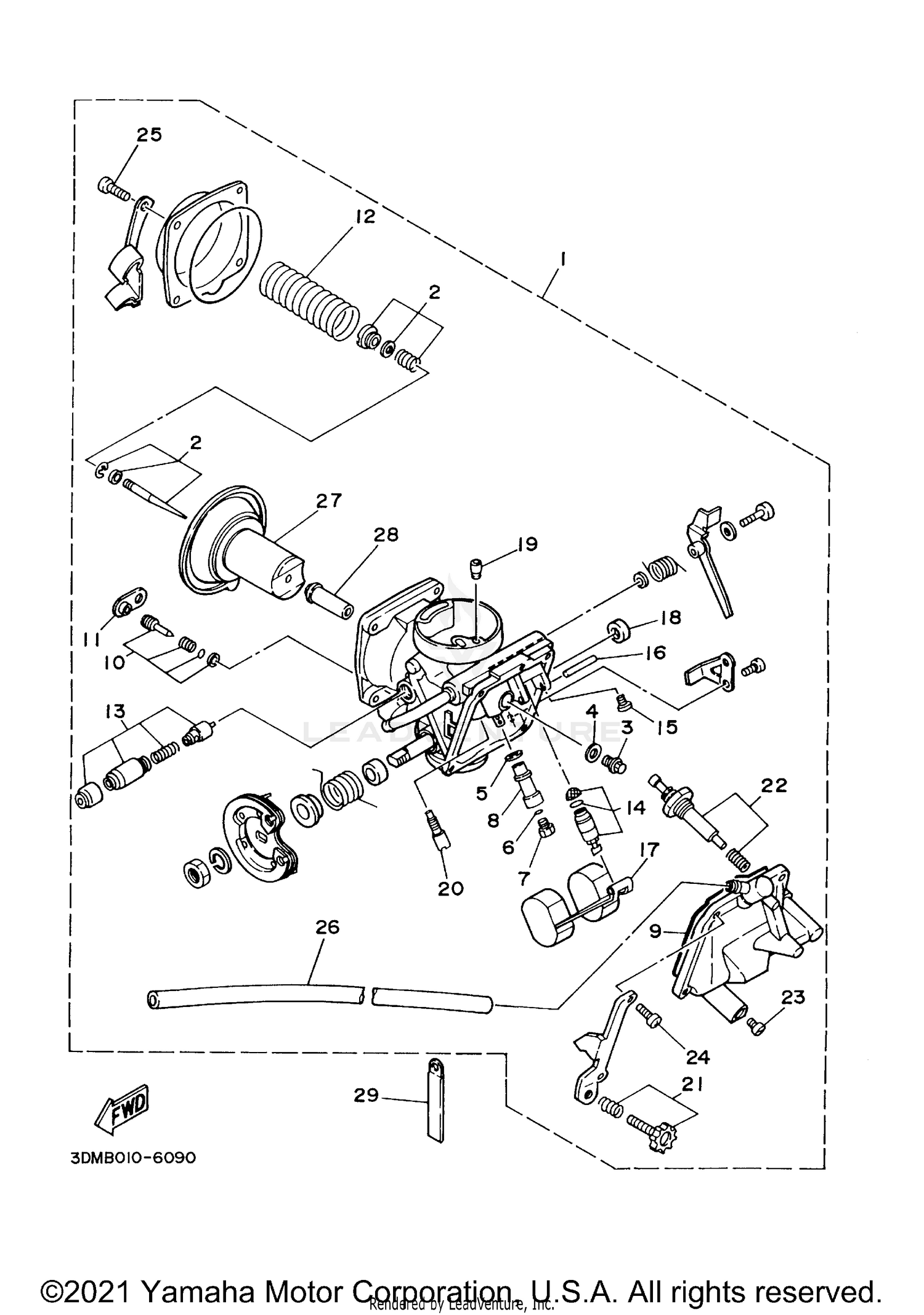

| Ref | Part Number | Description |
|---|
| 1 |
2UJ-14900-01-00 |
CARBURETOR ASSY Price: $1,091.99 |
| 2 |
3BG-1490J-00-00 |
NEEDLE SET Price: $33.99 |
| 3 |
1HX-14565-00-00 |
SCREW Price: $22.99 |
| 4 |
137-14153-00-00 |
WASHER, MAIN JET Price: $8.49 |
| 5 |
1AE-14237-00-00 |
GASKET Price: $8.49 |
| 6 |
1AE-14227-00-00 |
O-RING Price: $10.99 |
| 7 |
620-14231-22-A0 |
JET, MAIN (110) This part replaces 620-14231-22-00. Price: $14.49 |
| 8 |
1AE-14261-00-00 |
HOLDER Price: $33.99 |
| 9 |
1HX-14147-00-00 |
O-RING Price: $19.99 |
| 10 |
12R-14105-00-00 |
PILOT SCREW SET Price: $18.99 |
| 11 |
3F9-14118-00-00 |
CAP Price: $9.49 |
| 12 |
1HX-14933-00-00 |
SPRING, DIAPHRAGM Price: $35.99 |
| 13 |
3DM-1410A-10-00 |
STARTER SET This part replaces 3DM-1410A-01-00. Price: $100.99 |
| 14 |
3CF-14107-10-00 |
NEEDLE VALVE SET Price: $39.99 |
| 15 |
1FN-14565-00-00 |
SCREW Price: $8.49 |
| 16 |
353-14186-00-00 |
PIN, FLOAT Price: $8.49 |
| 17 |
1HX-14985-00-00 |
FLOAT Price: $91.99 |
| 18 |
256-14997-00-00 |
SEAL Price: $12.49 |
| 19 |
1HX-14231-31-00 |
JET, MAIN (#155) Price: $12.99 |
| 20 |
22F-14142-17-00 |
JET, PILOT (# 17.5) Price: $10.99 |
| 21 |
1HX-14103-00-00 |
THROTTLE SCREW SET Price: $24.99 |
| 22 |
3DM-14504-01-00 |
ROD SET Price: $60.99 |
| 23 |
12R-14191-00-00 |
PLUG, DRAIN Price: $17.99 |
| 24 |
98580-04014-00 |
SCREW, PAN HEAD This part replaces 98501-04014-00. Price: $3.30 |
| 25 |
98517-04012-00 |
SCREW,PANHEAD This part replaces 98501-04012-00. Price: $4.20 |
| 26 |
50H-14987-00-00 |
HOSE This part replaces 2LH-14197-00-00. Price: $45.99 |
| 27 |
3BG-14940-00-00 |
DIAPHRAGM ASSY Price: $250.99 |
| 28 |
3DM-14141-30-00 |
MAIN NOZZLE (0-0) Price: $41.99 |
