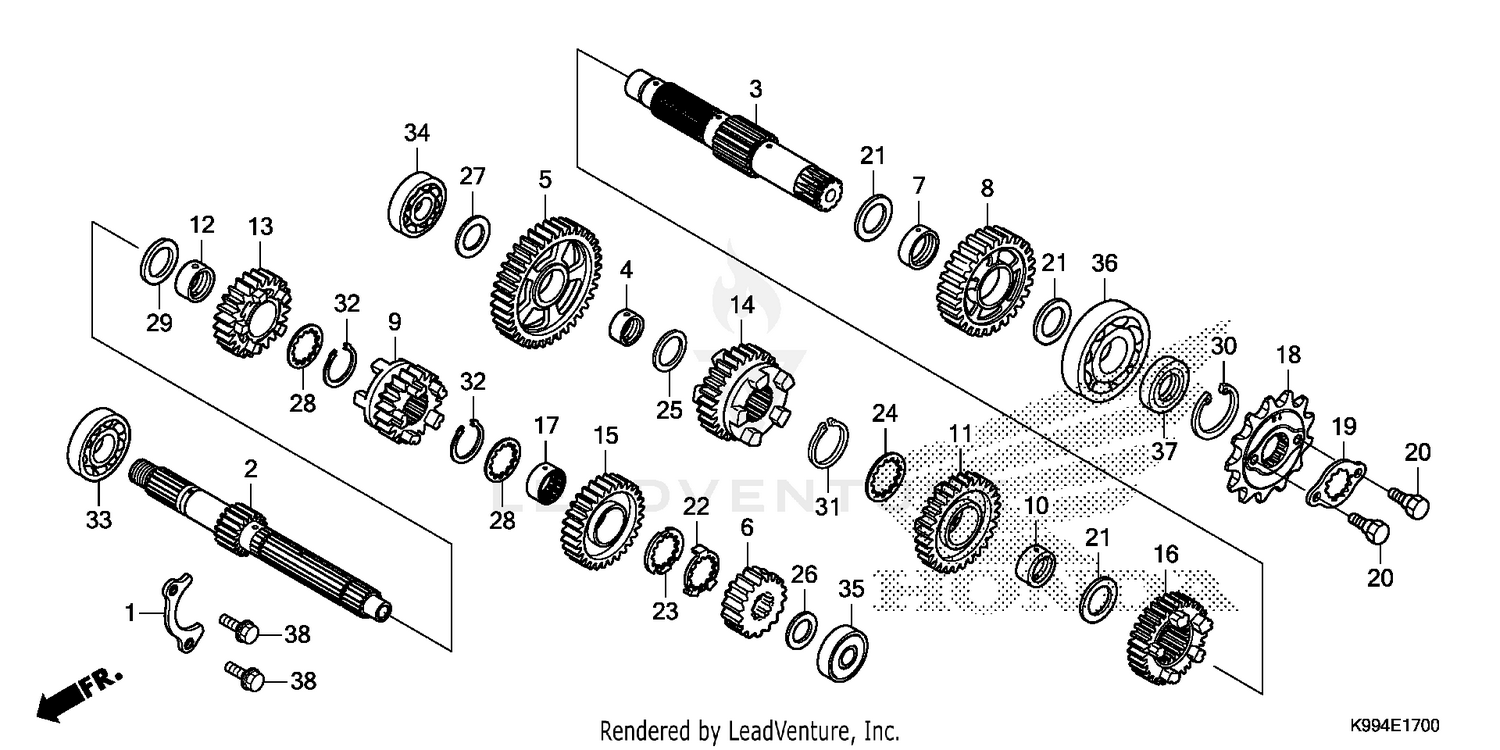

| Ref | Part Number | Description |
|---|
| 1 |
11215-K31-900 |
PLATE, BEARING SETTING Price: $3.96 |
| 2 |
23211-K99-A00 |
MAINSHAFT (13T) Price: $41.00 |
| 3 |
23221-K99-A00 |
COUNTERSHAFT (21T) Price: $46.13 |
| 4 |
23412-K31-900 |
COLLAR (18X21X10) Price: $12.25 |
| 5 |
23421-K99-A00 |
GEAR, COUNTER FIRST (37T) Price: $30.16 |
| 6 |
23431-K99-A00 |
GEAR, MAINSHAFT SECOND (20T) Price: $17.05 |
| 7 |
23432-KCZ-000 |
BUSH (22X25X10) Price: $10.25 |
| 8 |
23441-K99-A00 |
GEAR, COUNTERSHAFT SECOND (38T) Price: $25.98 |
| 9 |
23451-K99-A00 |
GEAR, MAINSHAFT THIRD (20T) Price: $34.98 |
| 10 |
23452-KVK-900 |
BUSH (22X25X13.1) Price: $17.80 |
| 11 |
23461-K99-A00 |
GEAR, COUNTER THIRD (28T) Price: $27.06 |
| 12 |
23462-KVK-900 |
BUSH (20X23X17.4) Price: $26.65 |
| 13 |
23471-K99-A00 |
GEAR, MAINSHAFT FOURTH (24T) Price: $27.93 |
| 14 |
23481-K99-A00 |
GEAR, COUNTER FOURTH (26T) Price: $34.48 |
| 15 |
23491-K99-A00 |
GEAR, MAINSHAFT FIFTH (29T) Price: $28.73 |
| 16 |
23501-K99-A00 |
GEAR, COUNTERSHAFT FIFTH (26T) Price: $31.98 |
| 17 |
23502-KVK-900 |
COLLAR, SPLINE (23MM) Price: $25.16 |
| 18 |
23801-KPF-305 |
SPROCKET (13T Price: $63.53 |
| 19 |
23802-KYJ-900 |
PLATE, FIXING Price: $2.93 |
| 20 |
90084-041-000 |
BOLT, DRIVE SPROCKET FIXING Price: $5.80 |
| 21 |
90401-KE7-000 |
WASHER, THRUST (22.2MM) Price: $4.80 |
| 22 |
90401-KVK-900 |
WASHER, LOCK (20X19X1.0) Price: $4.05 |
| 23 |
90402-KVK-900 |
WASHER, THRUST (20X19X1.0) Price: $4.18 |
| 24 |
90404-KW3-000 |
WASHER, THRUST INVOLUTE (22X21X1) Price: $4.42 |
| 25 |
90452-701-000 |
WASHER, THRUST (18MM) Price: $2.67 |
| 26 |
90452-K31-900 |
WASHER (15X25X1.0) Price: $5.65 |
| 27 |
90453-K31-900 |
WASHER (17X28X1.0) Price: $3.76 |
| 28 |
90453-KRM-840 |
WASHER, SPLINE (20MM) Price: $1.44 |
| 29 |
90454-KPS-900 |
WASHER B, THRUST (20MM) Price: $0.91 |
| 30 |
90601-K31-900 |
CIRCLIP (INNER) (37MM) Price: $4.13 |
| 31 |
90602-360-000 |
SET-RING, COUNTER SECOND Price: $11.04 |
| 32 |
90605-KVS-900 |
SET-RING (20MM) Price: $2.35 |
| 33 |
91003-K31-901 |
BEARING, RADIAL BALL (6204) (NSK) Price: $18.33 |
| 34 |
91004-K31-901 |
BEARING, RADIAL BALL (6203) (U) (NSK) Price: $15.84 |
| 35 |
91005-K31-901 |
BEARING, RADIAL BALL (6202U) (FAG) Price: $21.31 |
| 36 |
91005-KYJ-901 |
BEARING, RADIAL BALL (63/22) Price: $25.55 |
| 37 |
91207-KYJ-711 |
OIL SEAL (22X36X5) Price: $6.00 |
