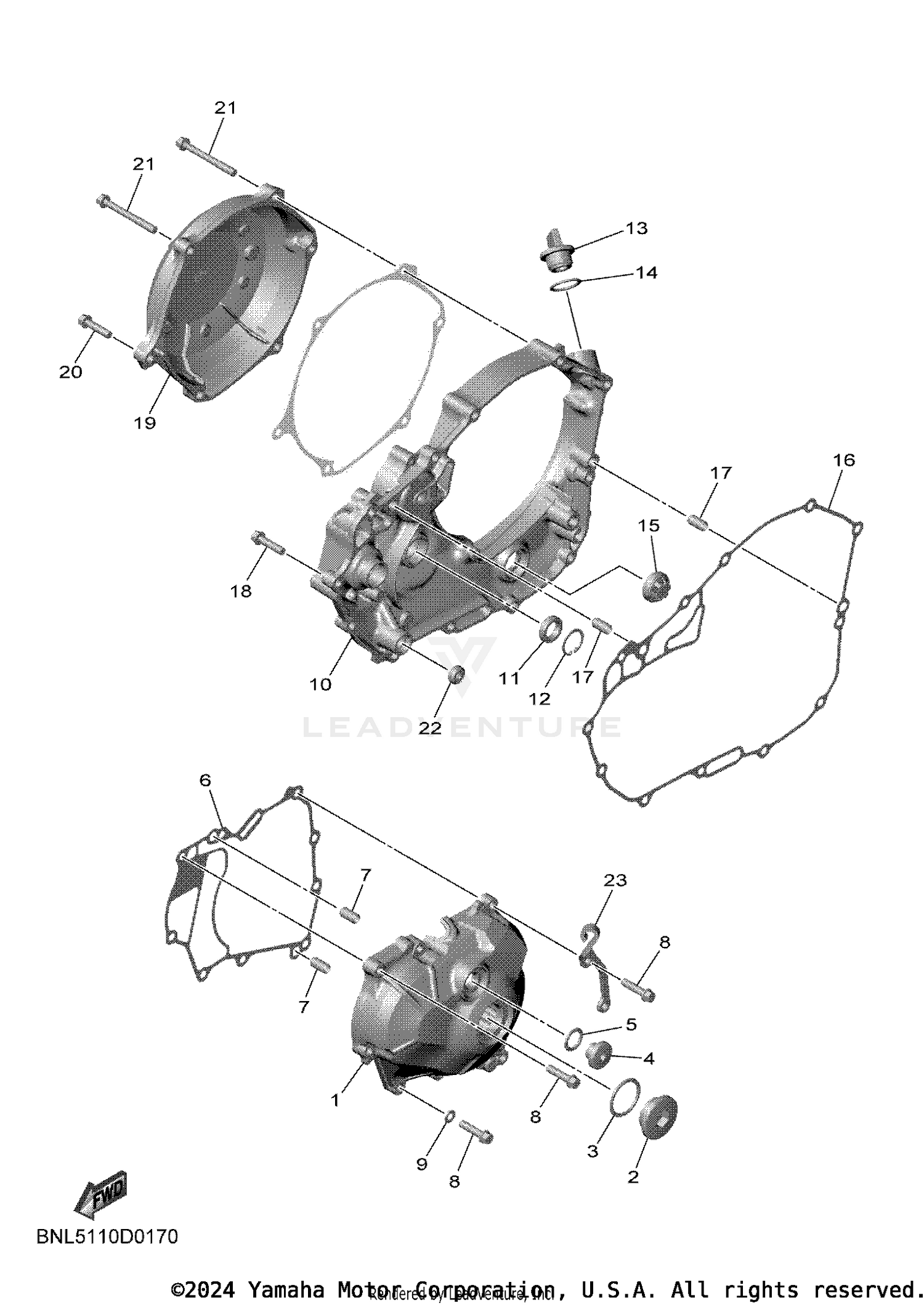

| Ref | Part Number | Description |
|---|
| 1 |
BHR-15411-00-00 |
COVER, CRANKCASE 1 Price: $156.99 |
| 2 |
90340-27009-00 |
PLUG, STRAIGHT SCREW Price: $41.99 |
| 3 |
93210-27778-00 |
O-RING This part replaces 93210-27370-00. Price: $9.49 |
| 4 |
90340-14021-00 |
PLUG, STRAIGHT SCREW Price: $34.99 |
| 5 |
93210-14369-00 |
O-RING Price: $8.49 |
| 6 |
BHR-15451-00-00 |
GASKET, CRANKCASE COVER 1 Price: $11.49 |
| 7 |
91808-16023-00 |
PIN, DOWEL This part replaces 99530-08016-00. Price: $7.99 |
| 8 |
95E32-06025-00 |
BOLT, FLANGE DEEP RECESS Price: $0.50 |
| 9 |
90430-06014-00 |
GASKET Price: $8.60 |
| 10 |
BHR-15431-00-00 |
COVER, CRANKCASE 3 Price: $174.99 |
| 11 |
93101-14164-00 |
OIL SEAL Price: $12.49 |
| 12 |
99009-22500-00 |
CIRCLIP Price: $9.49 |
| 13 |
3Y1-15363-10-00 |
PLUG, OIL Price: $19.99 |
| 14 |
93210-19123-00 |
O-RING Price: $8.99 |
| 15 |
3Y1-15361-00-00 |
GAUGE, LEVEL Price: $33.99 |
| 16 |
BHR-15462-00-00 |
GASKET, CRANKCASE COVER 3 Price: $25.99 |
| 17 |
91808-16023-00 |
PIN, DOWEL This part replaces 99530-08016-00. Price: $7.99 |
| 18 |
95E32-06025-00 |
BOLT, FLANGE DEEP RECESS Price: $0.50 |
| 19 |
BHR-15415-00-00 |
COVER, 1 Price: $269.99 |
| 20 |
95E32-06025-00 |
BOLT, FLANGE DEEP RECESS Price: $0.50 |
| 21 |
95E32-06055-00 |
BOLT, FLANGE DEEP RECESS Price: $1.60 |
| 22 |
583-13113-00-00 |
SEAT, CHECK BALL Price: $25.99 |
