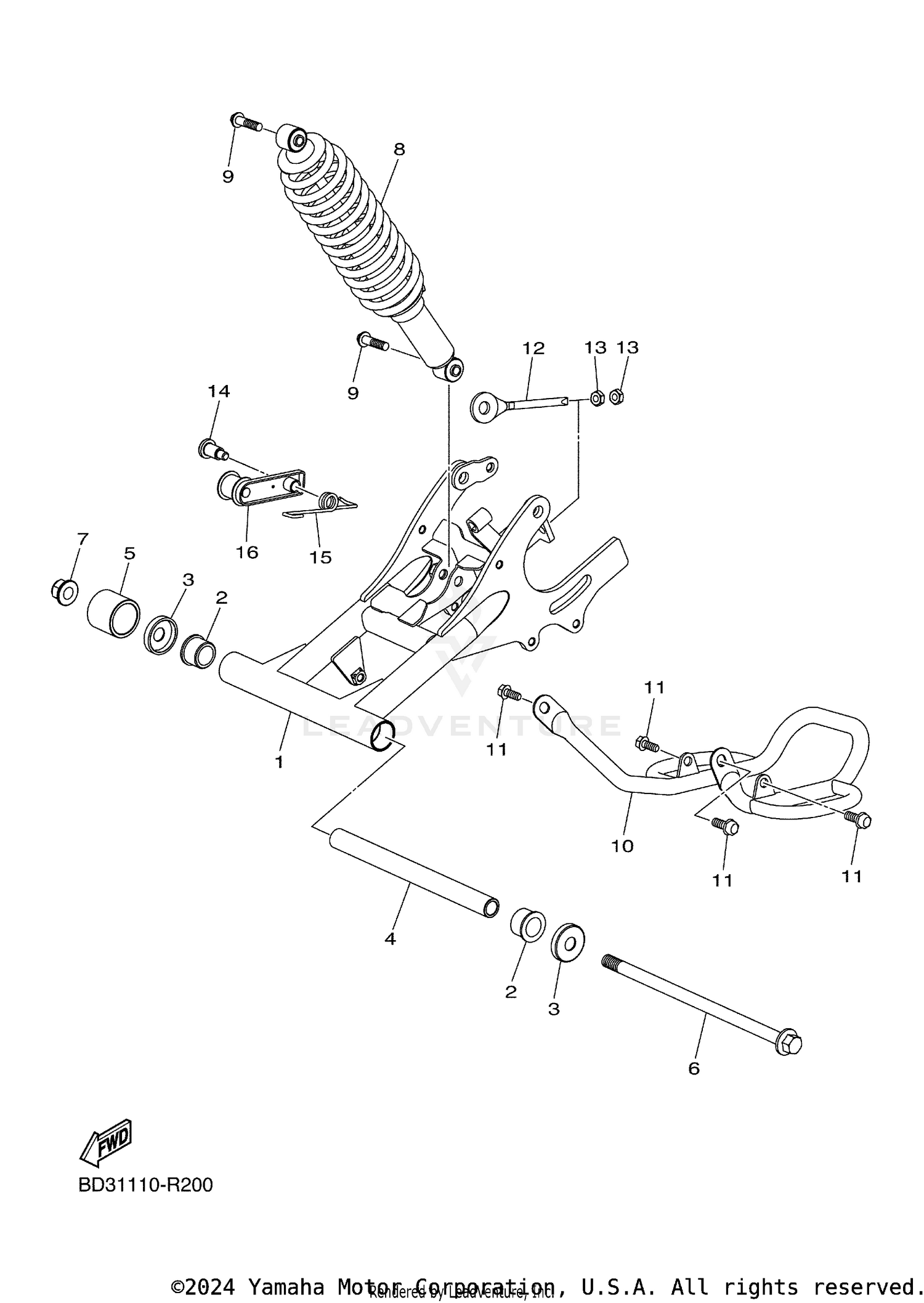

REAR ARM
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BYS-F2110-00-00 | REAR ARM COMP. This part replaces BD3-F2110-00-00. Price: $317.99 |
| 2 | BD3-F2123-00-00 | BUSH 1 Price: $11.49 |
| 3 | BD3-F2128-00-00 | COVER, THRUST 1 Price: $11.49 |
| 4 | BD3-F2126-00-00 | COLLAR, DISTANCE Price: $37.99 |
| 5 | BD3-F2151-00-00 | SEAL, GUARD Price: $8.49 |
| 6 | BD3-F1722-10-00 | BOLT 2 Price: $81.99 |
| 7 | BD3-F1535-10-00 | NUT 1 Price: $17.49 |
| 8 | BD3-F2210-20-00 | SHOCK ABSORBER ASS Price: $339.99 |
| 9 | BD3-F4834-10-00 | BOLT Price: $9.49 |
| 10 | BD3-F2361-10-00 | GUARD 1 This part replaces BD3-F2361-00-00. Price: $49.99 |
| 11 | BD3-F3876-10-00 | BOLT Price: $5.49 |
| 12 | BD3-F5388-10-00 | PULLER, CHAIN 1 Price: $17.49 |
| 13 | BD3-F1536-10-00 | NUT 2 Price: $2.85 |
| 14 | BD3-F3769-10-00 | BOLT Price: $14.49 |
| 15 | BD3-F2169-00-00 | SPRING, TENSIONER Price: $15.49 |
