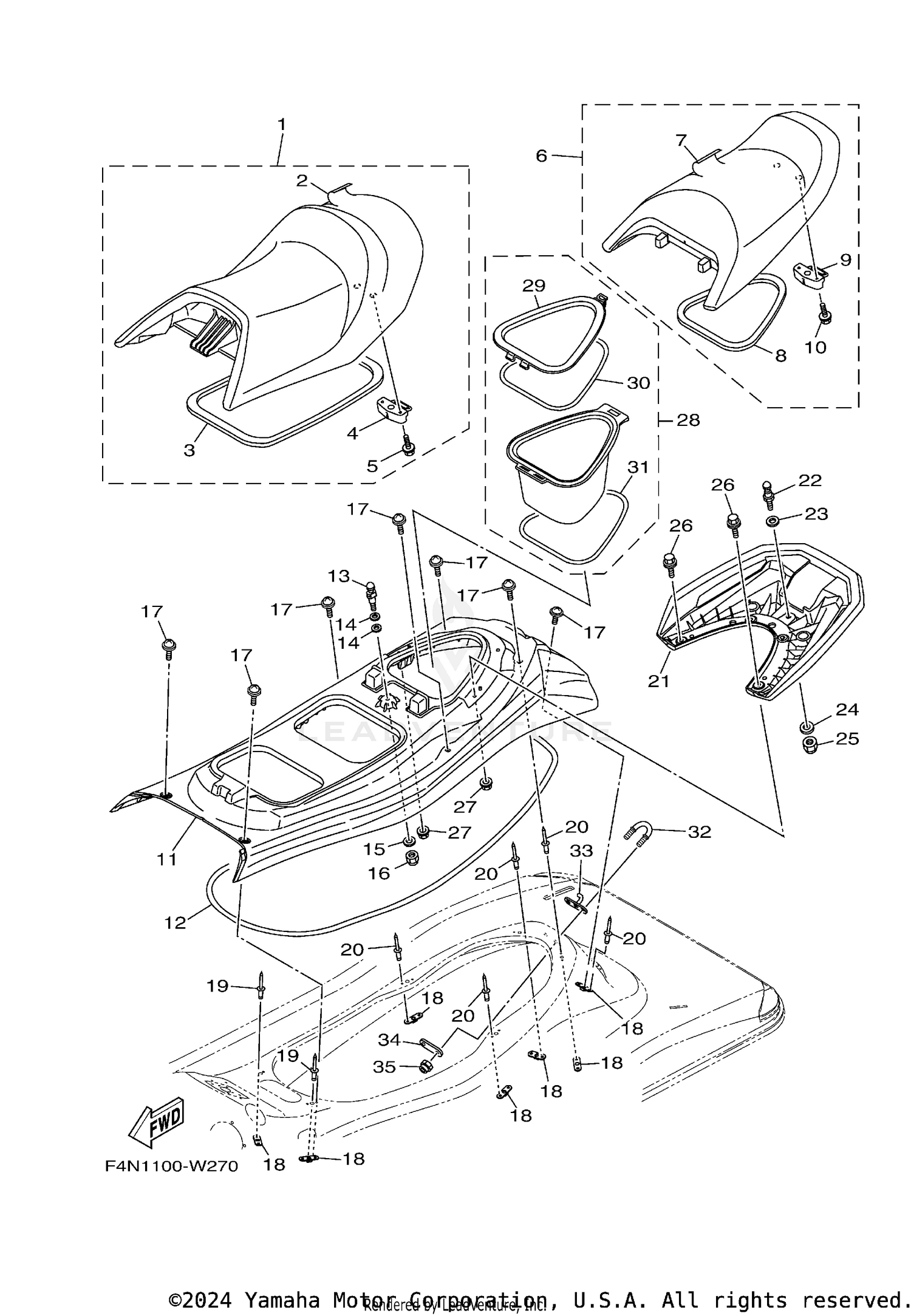

| Ref | Part Number | Description |
|---|
| 1 |
F4N-U371A-00-00 |
DOUBLE SEAT ASSY Price: $784.99 |
| 3 |
F4P-U2664-00-00 |
PACKING Price: $45.99 |
| 4 |
F2C-U3850-00-00 |
SEAT LOCK ASSY Price: $34.99 |
| 5 |
90119-06808-00 |
BOLT, WITH WASHER This part replaces 90119-069UP-00. Price: $3.90 |
| 6 |
F4N-U372A-00-00 |
SINGLE SEAT ASSY Price: $647.99 |
| 8 |
F4P-U266D-00-00 |
PACKING 5 Price: $82.99 |
| 9 |
F1B-U3850-02-00 |
SEAT LOCK ASSY Price: $12.99 |
| 10 |
90119-06808-00 |
BOLT, WITH WASHER This part replaces 90119-069UP-00. Price: $3.90 |
| 11 |
F4P-U3743-00-00 |
BASE, SEAT 2 Price: $152.99 |
| 12 |
F4P-U266B-00-00 |
PACKING 3 Price: $48.99 |
| 13 |
GH1-U3774-00-00 |
PIN Price: $28.99 |
| 14 |
90201-109U6-00 |
WASHER, PLATE Price: $5.99 |
| 15 |
9299R-10200-00 |
WASHER Price: $5.99 |
| 16 |
9572R-10300-00 |
NUT, FLANGE Price: $8.99 |
| 17 |
F3Y-U491K-02-00 |
BOLT, SPECIAL Price: $6.99 |
| 18 |
F2C-U826C-00-00 |
BRACKET Price: $8.99 |
| 19 |
F4P-U516R-01-00 |
RIVET 1 Price: $10.99 |
| 20 |
90267-48938-00 |
RIVET, BLIND This part replaces 90267-489U1-00. Price: $5.49 |
| 21 |
F4N-U271B-00-00 |
GRIP, HAND Price: $95.99 |
| 22 |
GH1-U3774-00-00 |
PIN Price: $28.99 |
| 23 |
90201-109U6-00 |
WASHER, PLATE Price: $5.99 |
| 24 |
9299R-10200-00 |
WASHER Price: $5.99 |
| 25 |
9572R-10300-00 |
NUT, FLANGE Price: $8.99 |
| 26 |
90119-08829-00 |
BOLT, WITH WASHER Price: $8.99 |
| 27 |
F3Y-U142L-00-00 |
NUT, LOCK Price: $6.99 |
| 28 |
F4P-U591A-00-00 |
CASE ASSY 1 Price: $113.99 |
| 29 |
F4P-U591C-00-00 |
CAP,CASE Price: $23.99 |
| 30 |
F4P-U591D-00-00 |
PACKING,CASE Price: $90.99 |
| 31 |
F4P-U266E-00-00 |
PACKING,6 Price: $12.99 |
| 32 |
F2N-U1628-02-00 |
STERN EYE Price: $8.99 |
| 33 |
F4G-U372G-00-00 |
EYELET Price: $20.99 |
| 34 |
GP7-U4953-10-00 |
PLATE A Price: $8.99 |
