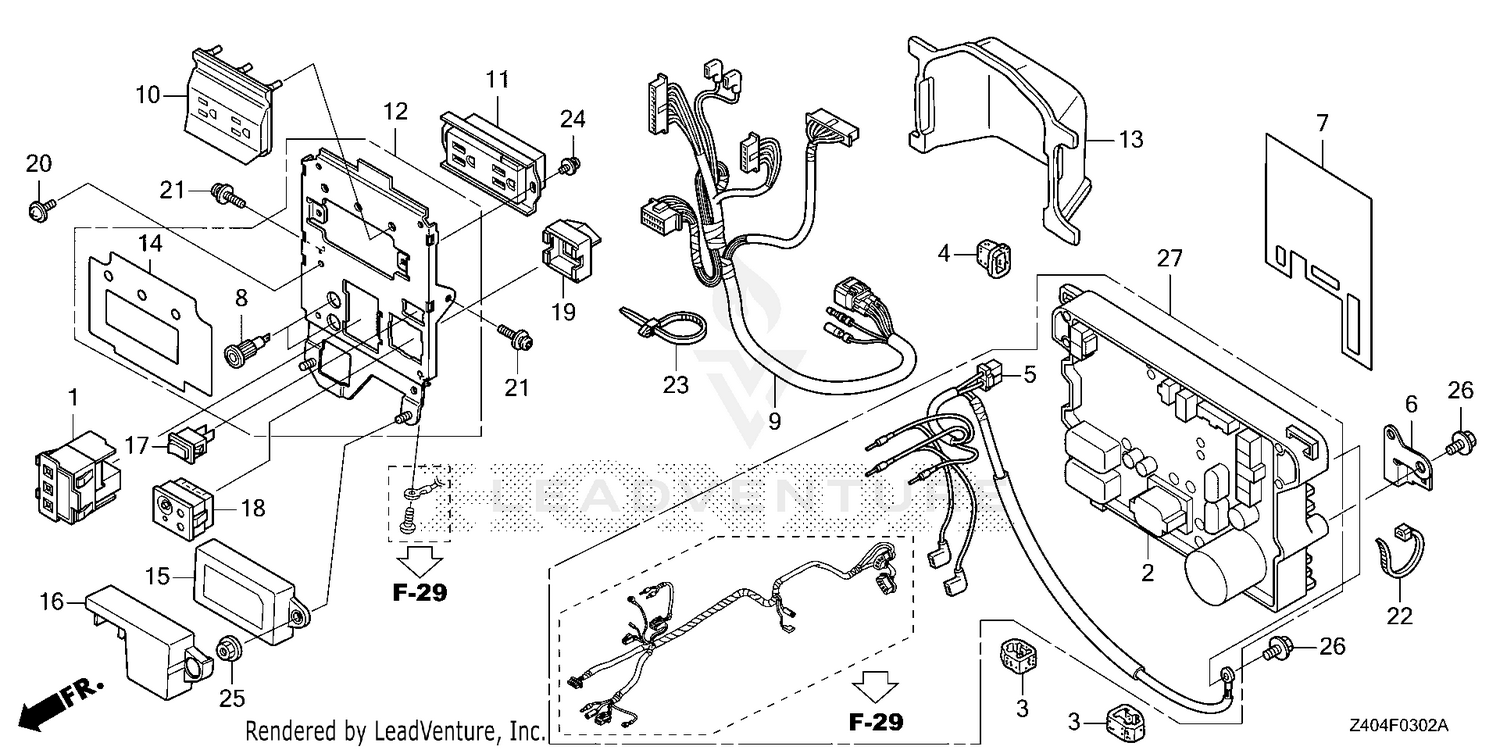

| Ref | Part Number | Description |
|---|
| 1 |
30400-ZT3-C02 |
SPARK UNIT Price: $134.40 |
| 3 |
31319-ZT3-000 |
RUBBER A, INVERTER Price: $2.74 |
| 4 |
31324-ZT3-000 |
RUBBER B, INVERTER Price: $2.74 |
| 6 |
32108-Z40-A30 |
BRACKET, CONNECTOR Price: $2.56 |
| 7 |
32118-ZT3-P10 |
SHEET, WATERPROOF Price: $4.76 |
| 8 |
32139-ZC3-G01 |
SOCKET, COMPOSITE Price: $30.56 |
| 9 |
32150-Z40-A31 |
WIRE HARNESS ASSY., CONTROL Price: $40.56 |
| 10 |
32320-Z40-A30 |
COVER, RECEPTACLE (15A-125V) Price: $10.44 |
| 11 |
32330-Z40-A31 |
RECEPTACLE ASSY. (125V-15A) Price: $24.40 |
| 12 |
32345-Z40-A30 |
PANEL, CONTROL Price: $65.38 |
| 13 |
32351-ZT3-000 |
COVER, CONTROL PANEL Price: $14.14 |
| 14 |
32366-Z40-A30 |
MARK, CONTROL PANEL Price: $8.62 |
| 15 |
35610-Z44-PA0 |
SENSING UNIT (CO) Price: $215.24 |
| 16 |
35611-Z40-A30 |
COVER, SENSING UNIT PROOF (CO) Price: $3.96 |
| 17 |
36214-Z11-A01 |
SWITCH, AUTO-THROTTLE (OTAX) Price: $25.18 |
| 18 |
38530-ZS9-W32 |
LED ASSY., INDICATER Price: $34.68 |
| 19 |
38531-Z40-A30 |
COVER, LED INDICATOR PROOF Price: $3.16 |
| 20 |
90102-899-003 |
SCREW, PAN (5X12) (GROUND CABLE) Price: $4.02 |
| 21 |
90108-Z40-A30 |
BOLT-WASHER (5X20) (TORX) Price: $1.12 |
| 22 |
90651-KV6-003 |
BAND, WIRE (165MM) (BLACK) Price: $4.38 |
| 23 |
90672-ZB4-000 |
TIE, CABLE Price: $3.70 |
| 24 |
93891-04006-00 |
SCREW-WASHER (4X6) Price: $1.08 |
| 25 |
94050-05080 |
NUT, FLANGE (5MM) (Honda Code 0612671). Price: $0.46 |
| 26 |
95701-06010-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2204709). Price: $2.02 |
