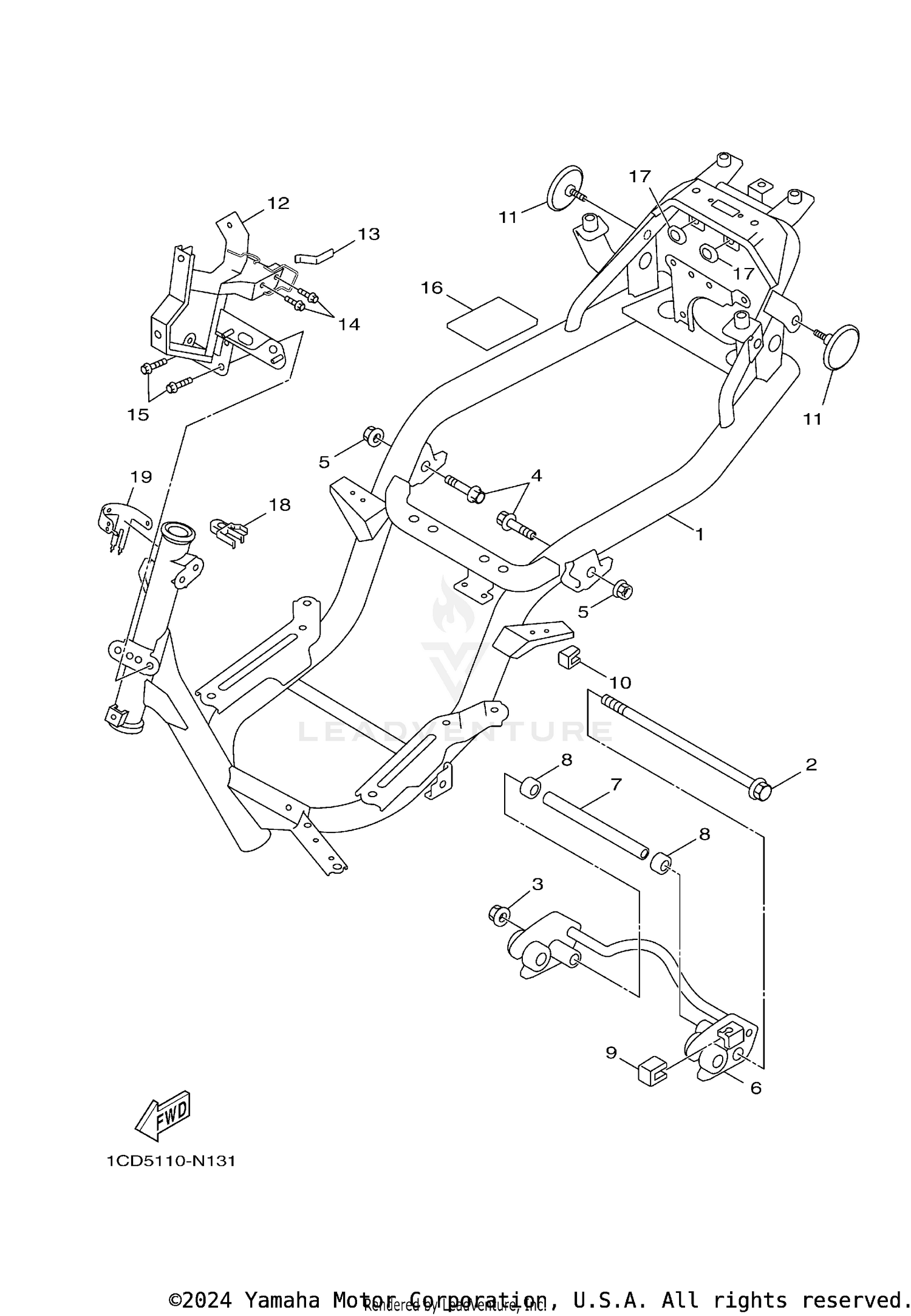

FRAME
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 5ST-F1481-00-00 | BOLT, ENGINE MOUNTING 1 Price: $8.49 |
| 3 | 90185-10801-00 | NUT, SELF-LOCKING Price: $2.10 |
| 4 | 95817-10045-00 | BOLT, FLANGE This part replaces 95827-10045-00. Price: $6.99 |
| 5 | 95607-10200-00 | NUT, U FLANGE Price: $4.15 |
| 6 | 3B3-F1410-00-00 | ENGINE BRACKET COMP. Price: $45.99 |
| 7 | 5ST-F1459-00-00 | SPACER Price: $3.55 |
| 8 | 5ST-F7235-00-00 | COVER, DUST Price: $0.70 |
| 9 | 5ST-F139X-00-00 | DAMPER Price: $2.35 |
| 10 | 5ML-F1652-00-00 | PROTECTOR Price: $0.99 |
| 11 | 1CD-H5131-01-00 | REFLECTOR, REAR 1 This part replaces 1CD-H5131-00-00. Price: $6.49 |
| 12 | 1CD-F134E-00-00 | BRACKET, RELAY Price: $36.99 |
| 13 | 1VC-F1652-00-00 | PROTECTOR Price: $0.80 |
| 14 | 92017-06012-00 | BOLT, BUTTON HEAD Price: $2.65 |
| 15 | 95817-08014-00 | BOLT, FLANGE This part replaces 95827-08014-00. Price: $2.50 |
| 16 | 41D-F1541-00-00 | DAMPER 1 Price: $1.20 |
| 17 | 90480-01559-00 | GROMMET Price: $6.49 |
| 18 | 1VC-F117F-00-00 | COVER Price: $0.85 |
