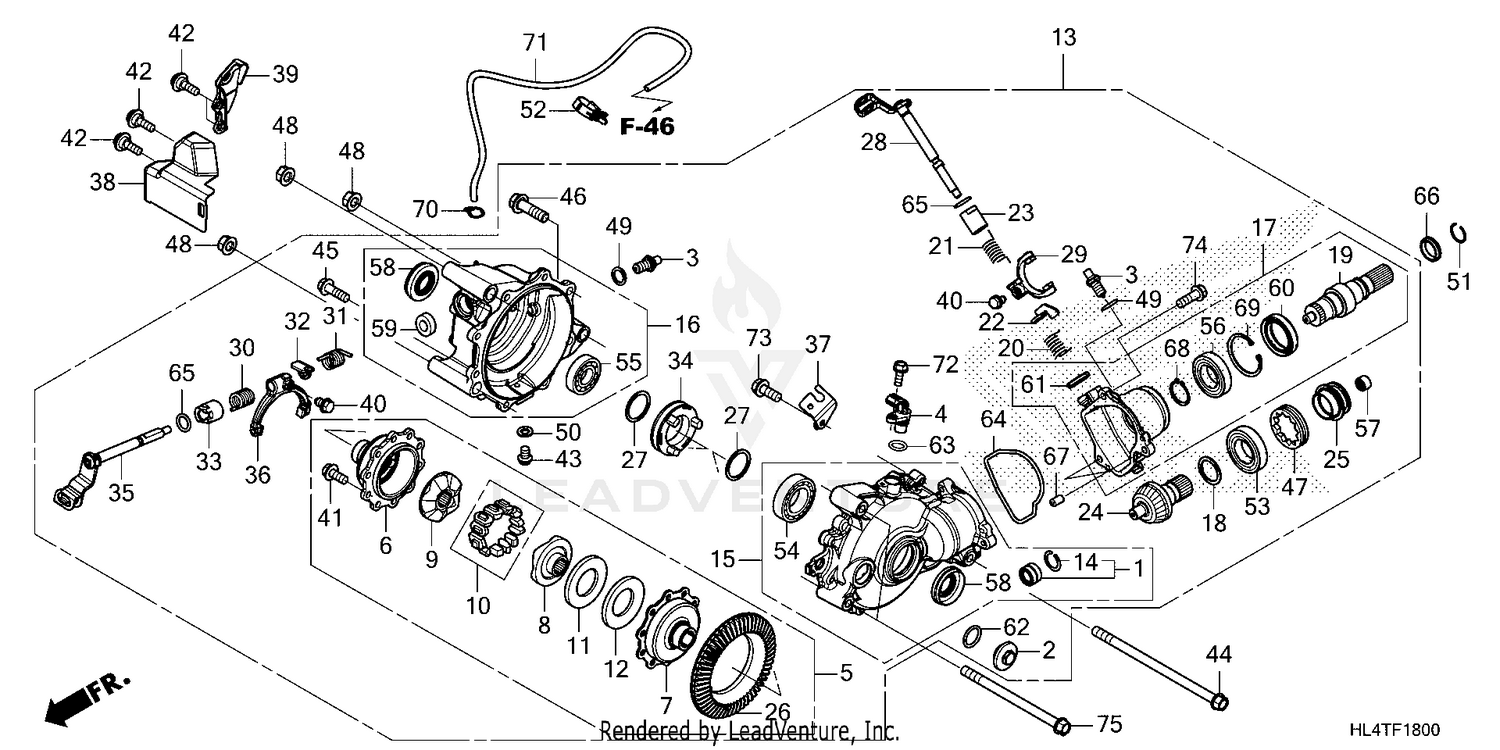

| Ref | Part Number | Description |
|---|
| 1 |
06910-HR6-B00 |
BEARING SET, NEEDLE Price: $38.65 |
| 2 |
12361-300-000 |
CAP, VALVE ADJ. This part replaces 12361-035-000. Price: $12.40 |
| 3 |
35600-HN7-003 |
SWITCH ASSY., NEUTRAL Price: $23.76 |
| 4 |
37700-KZR-601 |
SENSOR ASSY., SPEED (TDK-EPC) Price: $53.38 |
| 5 |
41200-HL4-A01 |
DIFFERENTIAL ASSY., FR. Price: $710.44 |
| 6 |
41211-HL4-A01 |
CASE, FR. DIFFERENTIAL Price: $107.31 |
| 7 |
41212-HL4-A01 |
CAP, FR. DIFFERENTIAL CASE Price: $47.93 |
| 8 |
41231-HL4-A01 |
CAM, FACE (66) (A) Price: $25.04 |
| 9 |
41232-HL4-A01 |
CAM, FACE (66) (B) Price: $28.75 |
| 10 |
41240-HL4-A01 |
FOLLOWER SET, CAM Price: $54.93 |
| 11 |
41251-HL4-A01 |
SHIM A (1.3) Price: $3.73 |
| 11 |
41252-HL4-A01 |
SHIM B (1.4) Price: $3.73 |
| 11 |
41253-HL4-A01 |
SHIM C (1.5) Price: $3.73 |
| 11 |
41254-HL4-A01 |
SHIM D (1.6) Price: $3.73 |
| 11 |
41255-HL4-A01 |
SHIM E (1.7) Price: $3.73 |
| 12 |
41261-HL4-A01 |
SPRING, DIFFERENTIAL SIDE CONED Price: $4.62 |
| 13 |
41400-HL8-A11 |
GEAR, FR. FINAL Price: $1,032.05 |
| 14 |
41405-HA7-670 |
RING, STOPPER Price: $3.73 |
| 15 |
41411-HL4-AK1 |
CASE SUB-ASSY., FR. Price: $106.51 |
| 16 |
41412-HL4-AK0 |
COVER SUB-ASSY., FR. Price: $145.62 |
| 17 |
41413-HL8-A10 |
CASE SUB-ASSY., FR. Price: $90.49 |
| 18 |
41447-HM8-000 |
SHIM A, PINION GEAR (1.64) Price: $10.04 |
| 18 |
41448-HM8-000 |
SHIM B, PINION GEAR (1.70) Price: $10.04 |
| 18 |
41449-HM8-000 |
SHIM C, PINION GEAR (1.76) Price: $10.04 |
| 18 |
41451-HM8-000 |
SHIM D, PINION GEAR (1.82) Price: $10.04 |
| 18 |
41452-HM8-000 |
SHIM E, PINION GEAR (1.88) Price: $10.04 |
| 18 |
41453-HM8-000 |
SHIM F, PINION GEAR (1.94) Price: $10.04 |
| 18 |
41454-HM8-000 |
SHIM G, PINION GEAR (2.00) Price: $10.04 |
| 18 |
41455-HM8-000 |
SHIM H, PINION GEAR (2.06) Price: $10.04 |
| 18 |
41456-HM8-000 |
SHIM I, PINION GEAR (2.12) Price: $10.04 |
| 18 |
41457-HM8-000 |
SHIM J, PINION GEAR (2.18) Price: $10.04 |
| 19 |
41502-HL8-A10 |
JOINT, FR. Price: $76.60 |
| 20 |
41503-HP5-600 |
SPRING, FR. FINAL CLUTCH Price: $3.47 |
| 21 |
41504-HP5-600 |
SPRING, FR. FINAL CLUTCH LOCK Price: $6.84 |
| 22 |
41505-HP5-600 |
STOPPER, FR. FINAL CLUTCH Price: $1.55 |
| 23 |
41506-HL1-A00 |
COLLAR, FR. FINAL CLUTCH Price: $27.84 |
| 24 |
41521-HL4-A00 |
GEAR, FR. PINION (13T) Price: $251.18 |
| 25 |
41527-HR0-F00 |
SLEEVE, FR. FINAL CLUTCH Price: $47.36 |
| 26 |
41531-HL4-A00 |
GEAR, FR. RING (44T) Price: $124.69 |
| 27 |
41540-HA0-000 |
SPACER A, RING GEAR (1.82) Price: $14.35 |
| 27 |
41541-HA0-000 |
SPACER B, RING GEAR (1.88) Price: $14.35 |
| 27 |
41542-HA0-000 |
SPACER C, RING GEAR (1.94) Price: $14.35 |
| 27 |
41543-HA0-000 |
SPACER D, RING GEAR (2.00) Price: $14.35 |
| 27 |
41544-HA0-000 |
SPACER E, RING GEAR (2.06) Price: $14.35 |
| 27 |
41545-HA0-000 |
SPACER F, RING GEAR (2.12) Price: $14.35 |
| 27 |
41546-HA0-000 |
SPACER G, RING GEAR (2.18) Price: $14.35 |
| 27 |
41547-HA0-000 |
SPACER H, RING GEAR (2.24) Price: $14.35 |
| 27 |
41548-HA0-000 |
SPACER I, RING GEAR (2.30) Price: $14.35 |
| 27 |
41561-HL4-A00 |
SPACER X, RING GEAR (1.14) Price: $3.13 |
| 27 |
41562-HL4-A00 |
SPACER Y, RING GEAR (1.20) Price: $3.13 |
| 27 |
41563-HL4-A00 |
SPACER Z, RING GEAR (1.76) Price: $3.13 |
| 27 |
41564-HL4-A00 |
SPACER J, RING GEAR (1.80) Price: $3.13 |
| 27 |
41565-HL4-A00 |
SPACER K, RING GEAR (1.86) Price: $3.13 |
| 27 |
41566-HL4-A00 |
SPACER L, RING GEAR (1.92) Price: $3.13 |
| 27 |
41567-HL4-A00 |
SPACER M, RING GEAR (1.98) Price: $3.13 |
| 27 |
41568-HL4-A00 |
SPACER N, RING GEAR (2.04) Price: $3.13 |
| 28 |
41540-HL4-A00 |
SHAFT, FR. FINAL CLUTCH Price: $58.25 |
| 29 |
41550-HL4-A00 |
FORK, FR. FINAL CLUTCH Price: $85.82 |
| 30 |
41603-HL4-A00 |
SPRING A, DIFFERENTIAL LOCK Price: $5.18 |
| 31 |
41604-HL4-A00 |
SPRING B, DIFFERENTIAL LOCK Price: $5.20 |
| 32 |
41605-HL4-A00 |
STOPPER, DIFFERENTIAL LOCK SHAFT Price: $5.78 |
| 33 |
41606-HL4-A00 |
COLLAR, FR. DIFFERENTIAL LOCK Price: $30.78 |
| 34 |
41627-HL4-A00 |
SLEEVE, DIFFERENTIAL LOCK Price: $15.51 |
| 35 |
41640-HL4-A00 |
SHAFT, FR. DIFFERENTIAL LOCK Price: $58.25 |
| 36 |
41650-HL4-A00 |
FORK, DIFFERENTIAL LOCK Price: $63.75 |
| 37 |
41712-HL4-F40 |
STAY, CLUTCH CABLE Price: $1.75 |
| 38 |
41719-HL4-A00 |
COVER, FR. DIFFERENTIAL LOCK Price: $7.29 |
| 39 |
41728-HL4-A00 |
COVER, FR. CLUTCH Price: $6.96 |
| 40 |
90102-HL4-A00 |
BOLT, SPECIAL (6MM) Price: $4.73 |
| 41 |
90104-HL4-A00 |
BOLT, FLANGE (10X23) Price: $30.08 |
| 42 |
90106-MM9-000 |
BOLT, FR. FENDER FIXING Price: $3.73 |
| 43 |
90109-371-000 |
BOLT, SEALING (8MM) Price: $3.09 |
| 44 |
90121-HL4-A00 |
BOLT, FLANGE (10X192) Price: $0.91 |
| 45 |
90133-HP5-600 |
BOLT, FLANGE (8X27) Price: $3.05 |
| 46 |
90134-HP5-600 |
BOLT, FLANGE (10X35) Price: $4.40 |
| 47 |
90242-MB0-000 |
NUT, LOCK (64MM) Price: $39.40 |
| 48 |
90305-HC0-770 |
NUT, SELF-LOCK (10MM) Price: $3.76 |
| 49 |
90443-KR0-000 |
WASHER, NEUTRAL SWITCH Price: $1.53 |
| 50 |
90471-580-000 |
WASHER (8MM) Price: $3.40 |
| 51 |
90601-ZG3-000 |
CLIP, PISTON PIN Price: $2.36 |
| 52 |
90652-HC4-003 |
CLAMP, HARNESS Price: $7.47 |
| 53 |
91051-HL4-A01 |
BEARING, RADIAL BALL (6206) Price: $10.78 |
| 54 |
91052-HL6-AF1 |
BEARING (35X68X16) Price: $17.53 |
| 55 |
91055-HL4-A01 |
BEARING, RADIAL BALL (6907) Price: $9.75 |
| 55 |
91059-HL4-A01 |
BEARING, RADIAL BALL (60/32) Price: $9.93 |
| 56 |
91055-HP5-601 |
BEARING, RADIAL BALL (32X58X13) Price: $16.85 |
| 57 |
91056-HP5-601 |
BEARING, NEEDLE (12X18X12) Price: $7.60 |
| 58 |
91251-HL4-A01 |
OIL SEAL (27X53X7) Price: $5.87 |
| 59 |
91252-HL4-A01 |
OIL SEAL (24X32X5) Price: $5.69 |
| 60 |
91254-HR3-A21 |
OIL SEAL (42X58X12) Price: $9.33 |
| 61 |
91254-KS7-831 |
DUST SEAL (22X28X5) Price: $10.49 |
| 62 |
91302-001-020 |
O-RING (30.8MM) (Honda Code 0001065) Price: $4.70 |
| 63 |
91303-KF0-003 |
O-RING (14.8X2.4) (ARAI) Price: $2.02 |
| 64 |
91351-HL4-A00 |
GASKET, FR. FINAL CLUTCH COVER Price: $1.56 |
| 65 |
91352-GAZ-930 |
O-RING (8.5X1.5) (L. SIDE ONLY) Price: $2.65 |
| 66 |
91362-HL4-A01 |
O-RING, SPECIAL Price: $5.64 |
| 67 |
94301-06100 |
PIN A, DOWEL (6X10) (YAMADA) Price: $2.35 |
| 68 |
94510-32000 |
CIRCLIP (OUTER) (32MM) Price: $1.85 |
| 69 |
94520-58000 |
CIRCLIP (INNER) (58MM) Price: $3.93 |
| 70 |
95002-35000 |
CLIP, TUBE (C6.5) Price: $0.78 |
| 71 |
95005-35001-30M |
BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M) Price: $10.45 |
| 72 |
95701-06016-08 |
BOLT, FLANGE (6X16) Price: $1.52 |
| 73 |
95701-08020-08 |
BOLT, FLANGE (8X20) Price: $1.66 |
| 74 |
95701-08025-08 |
BOLT, FLANGE (8X25) Price: $0.77 |
