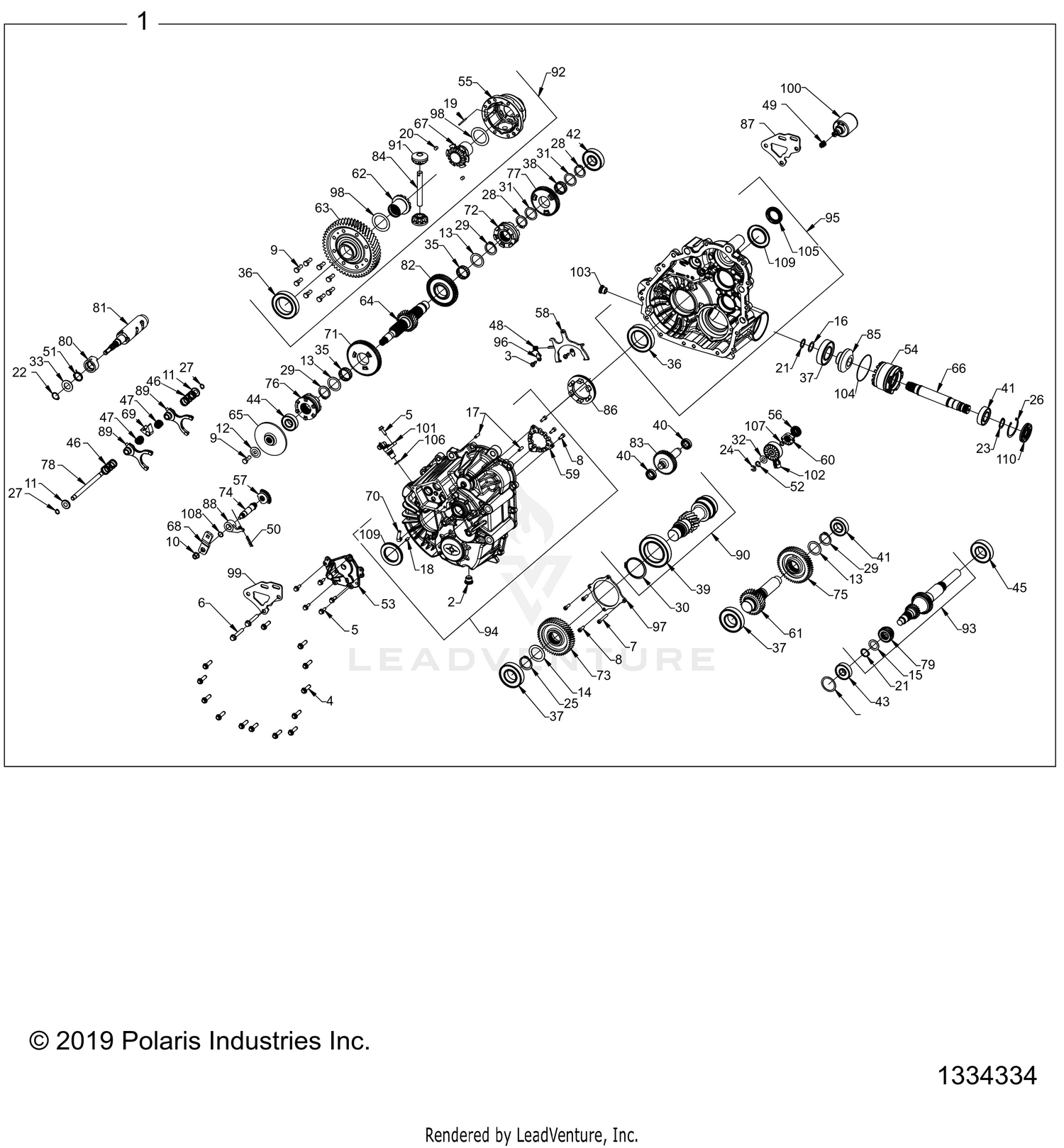

| Ref | Part Number | Description |
|---|
| 2 |
3234756 |
PLUG, M18 X 1.5 MAGNETIC Price: $39.99 |
| 3 |
3234309 |
SCREW, 6-LOBE, PAN HD M6 X 1 X 16 Price: $8.99 |
| 4 |
3234898 |
SCREW-HEXFLANGEHEAD,M8X1.25X30 Price: $11.99 |
| 5 |
3235206 |
SCREW, HEX FLANGE HEAD, M6 X 1 X 20 Price: $8.99 |
| 6 |
3235207 |
SCREW, HEX FLANGE M8 X 50 Price: $12.99 |
| 7 |
3235208 |
SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40 Price: $13.99 |
| 8 |
3235332 |
SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18 Price: $4.99 |
| 9 |
3236169 |
SCREW, CAP HH M8 X 1.25 X 25 Price: $11.99 |
| 10 |
3235210 |
NUT, LOCK HEX FLANGE, NYLON M8 X 1.25 Price: $9.99 |
| 11 |
3234091 |
WASHER-CUP Price: $11.99 |
| 12 |
3234952 |
WASHER, BELLEVILLE 42140 X 1.25 X 0.09 Price: $8.99 |
| 13 |
3235211 |
WASHER-32.3X42X1.5(115288) Price: $12.99 |
| 14 |
3235212 |
WASHER-35.6X57X1.5(115289) Price: $16.99 |
| 15 |
3235991 |
WASHER 22.70 X 32.0 X 1.5 Price: $12.99 |
| 16 |
3236410 |
WASHER, 22.5 X 30 X 1.5 Price: $9.99 |
| 17 |
3234330 |
PIN, DOWEL 6 X 20 Price: $8.99 |
| 18 |
7043746 |
PIN, SPRING, SLOTTED 6 X 12 Price: $9.99 |
| 19 |
3236286 |
PIN, DOWEL 3 X 40 Price: $16.99 |
| 20 |
3236295 |
PIN, DOWEL 8 X 10 Price: $13.99 |
| 21 |
7710434 |
RING, RETAINING BASIC EXTERNAL Price: $4.99 |
| 22 |
3233045 |
RING,RETAINING BASIC,EXTERNAL 0.75 Price: $5.99 |
| 23 |
3233106 |
RING,RETAINING BASIC,EXTERNAL 0.984 Price: $6.99 |
| 24 |
3233834 |
RING, RETAINING BASIC EXTERNAL Price: $12.99 |
| 25 |
3233364 |
RING, RETAINING, SHAFT, DIA. 1.375 Price: $7.99 |
| 26 |
3234269 |
RING,RETAINING BASIC,INTERNAL 2.047 Price: $11.99 |
| 27 |
3234090 |
RING,RETAINING BASIC,EXTERNAL 0.428 Price: $12.99 |
| 28 |
3234205 |
RING, RETAINING, Price: $13.99 |
| 29 |
3235214 |
RING-RETAIN,EXT,MSR-32(130296) Price: $11.99 |
| 30 |
3235216 |
RING-RETAIN,VSH-237(130298) Price: $12.99 |
| 31 |
3233378 |
WASHER,THRUST,1.187 X 1.500 X .0600 Price: $11.99 |
| 32 |
3234642 |
WASHER,THRUST,0.446 X 0.88 X 0.025 Price: $12.99 |
| 33 |
3235883 |
SPACER, 19.4 X 34.0 X 2.0 Price: $29.99 |
| 34 |
3236234 |
SHIM 46.1 OD X 38 ID Price: $64.99 |
| 35 |
3233014 |
BEARING, NEEDLE Price: $54.99 |
| 36 |
3233268 |
BEARING-BALL 6010 C3 50 X 80 X 10 Price: $64.99 |
| 37 |
3234065 |
BEARING,BALL 6207 C3 35X72X17 Price: $59.99 |
| 38 |
3233384 |
BEARING-NEEDLE,30X35X13-CAGED Price: $39.99 |
| 39 |
3235218 |
BEARING, BALL, 6012 C3 60 X 95 X 18 Price: $74.99 |
| 40 |
3235807 |
BEARING, BALL 6903 17 X 30 X 7 Price: $44.99 |
| 41 |
3234608 |
Chain This part replaces 3235585. Price: $54.99 |
| 42 |
3235328 |
BEARING,BALL 6305RSH2 C3 25MMX62MMX17MM Price: $39.99 |
| 43 |
3235588 |
BEARING, BALL 6303RSH2 17 X 47 X 14 Price: $49.99 |
| 44 |
3235969 |
BEARING, BALL 6204RSH2 C3 20X47X14 Price: $39.99 |
| 45 |
3236118 |
BEARING, BALL 62/32 Price: $39.99 |
| 46 |
3234078 |
SPRING,COMPRESSION, .92 O.D. X 2.000 Price: $29.99 |
| 47 |
3234089 |
SPRING, COMPRESSION, 0.46 I.D. X 0.73 Price: $34.99 |
| 48 |
3234276 |
SPRING, TORSION, RETURN Price: $10.99 |
| 49 |
3234277 |
SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE Price: $16.99 |
| 50 |
3234578 |
SPRING, COMPRESSION 0.36 O.D. X 1.125 Price: $16.99 |
| 51 |
3235885 |
SPRING, TORSION Price: $24.99 |
| 52 |
3235327 |
WASHER-SPRING,210393 Price: $11.99 |
| 53 |
3236121 |
COVER, SECTOR GEARS MACH Price: $124.99 |
| 54 |
3236120 |
TUBE, SNORKEL MACH Price: $204.99 |
| 55 |
3236287 |
CARRIER, DIFFERENTIAL MACH Price: $209.99 |
| 56 |
3233839 |
GEAR, SECTOR, 16T Price: $44.99 |
| 57 |
3233832 |
GEAR-SECTOR,31T Price: $44.99 |
| 58 |
3235455 |
FORK, PIVOT SHIFT, REAR DIFF Price: $114.99 |
| 59 |
3235456 |
PLATE, PARK, 12 FACE Price: $49.99 |
| 60 |
3235982 |
STAR, DETENT, Price: $44.99 |
| 61 |
3235223 |
SHAFT-IDLER,29T(285803) Price: $134.99 |
| 62 |
3236290 |
GEAR, 14T OUTPUT, MACH Price: $204.99 |
| 63 |
3236291 |
GEAR, 53T OUTPUT Price: $324.99 |
| 64 |
3236193 |
SHAFT, REVERSE 25T Price: $234.99 |
| 65 |
3236194 |
DISC, BRAKE Price: $89.99 |
| 66 |
3236411 |
SHAFT, FRONT OUTPUT Price: $164.99 |
| 67 |
3236289 |
GEAR, 14T OUTPUT DISCONNECT, MACH Price: $209.99 |
| 68 |
3236243 |
BELLCRANK, ZEUS INT'L Price: $44.99 |
| 69 |
3234073 |
COLLAR-SHIFT Price: $39.99 |
| 70 |
3234230 |
TUBE, VENT 90 -1/4 INCH HOSE Price: $12.99 |
| 71 |
3235232 |
GEAR-LOW,67T(352856) Price: $154.99 |
| 72 |
3235233 |
ENGAGEMENT DOG,6-FACE(352857) Price: $159.99 |
| 73 |
3235236 |
GEAR-46T,STAGE 3(352872) Price: $134.99 |
| 74 |
3235238 |
SHAFT-SHIFT(352973) Price: $44.99 |
| 75 |
3235450 |
GEAR, 48T, STAGE 2 Price: $164.99 |
| 76 |
3235457 |
SHIFT DOG, PARK/LOW (353357) Price: $179.99 |
| 77 |
3235534 |
GEAR, 56T Price: $129.99 |
| 78 |
3235542 |
RAIL-SHIFT SHAFT(353622) Price: $34.99 |
| 79 |
3236132 |
GEAR, LOW 25T Price: $79.99 |
| 80 |
3235983 |
CAM, PARK Price: $189.99 |
| 81 |
3235984 |
DRUM, SHIFT MACH, Price: $344.99 |
| 82 |
3235985 |
GEAR, REVERSE 56T Price: $124.99 |
| 83 |
3235986 |
GEAR, IDLER 39T Price: $139.99 |
| 84 |
3236292 |
PIN, DIFFERENTIAL Price: $129.99 |
| 85 |
3236412 |
GEAR, 13T SNORKEL Price: $179.99 |
| 86 |
3236293 |
DOG, ENGAGEMENT Price: $169.99 |
| 87 |
3236342 |
WELDMENT, REAR MOUNT BRACKET Price: $44.99 |
| 88 |
3235452 |
SUBASSEMBLY, PAWL, DETENT, ROLLER Price: $44.99 |
| 89 |
3235920 |
SUBASSEMBLY, SHIFT FORK Price: $89.99 |
| 90 |
3236140 |
SUBASSEMBLY PINION 11T Price: $364.99 |
| 91 |
3236288 |
SUBASSEMBLY, PINION GEAR Price: $169.99 |
| 92 |
3236285 |
SUBASSEMBLY, DIFFERENTIAL Price: $479.99 |
| 93 |
3236339 |
SUBASSEMBLY, INPUT 39T/22T/25T Price: $109.99 |
| 94 |
3236341 |
SUBASSY, RH COVER INT'L Price: $379.99 |
| 95 |
3236532 |
ASM-CASE,SUB,LHE Price: $529.99 |
| 96 |
3234934 |
RETAINER-FORK Price: $12.99 |
| 97 |
3235241 |
COVER-BEARING,CNTR DR. Price: $59.99 |
| 98 |
3236294 |
WASHER, THRUST, 40.83 X 56.25 X 0.38 Price: $13.99 |
| 99 |
3236343 |
BRACKET, REAR MOUNT Price: $44.99 |
| 100 |
3235478 |
SOLENOID Price: $364.99 |
| 101 |
4013908 |
SENSOR-SPEED,TRANS Price: $114.99 |
| 103 |
3234755 |
PLUG, M18 X 1.5 Price: $34.99 |
| 104 |
3236136 |
O-RING 2.989 I.D. X 0.07 Price: $11.99 |
| 105 |
3236141 |
SEAL, TRIPLE LIP 32 X 49 X 8 VITON Price: $74.99 |
| 106 |
3234302 |
O-RING Price: $8.99 |
| 107 |
3233836 |
O-RING, -012 VITON Price: $8.49 |
| 108 |
3233828 |
O-RING, -014 VITON Price: $8.49 |
| 109 |
3235052 |
SEAL, TRIPLE LIP, VITON HELIX 40X70X7 Price: $39.99 |
