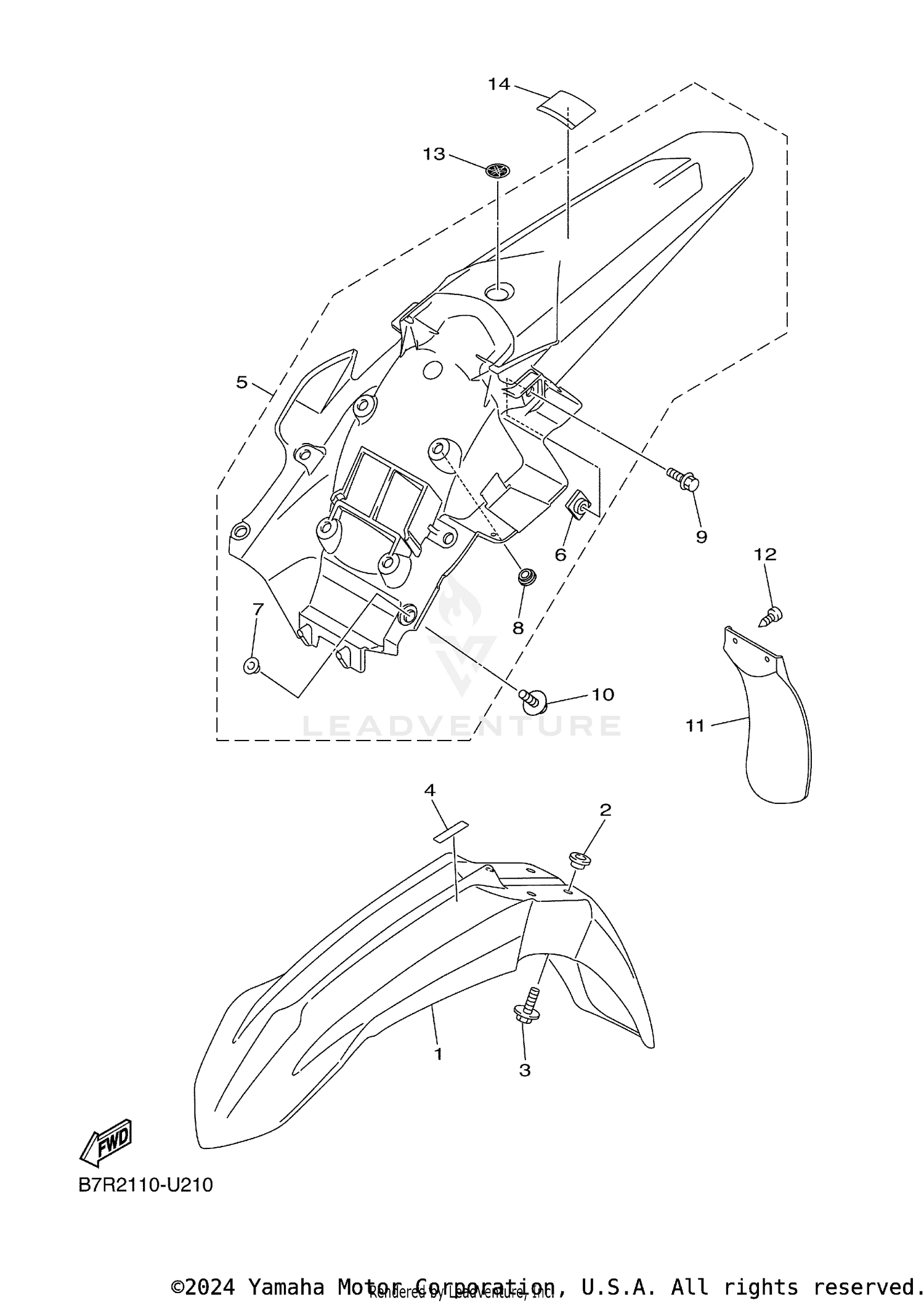

FENDER
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BR9-21511-00-00 | FENDER, FRONT Price: $35.99 |
| 2 | 90387-06259-00 | COLLAR Price: $9.49 |
| 3 | 90119-06268-00 | BOLT, WITH WASHER Price: $2.45 |
| 4 | 3FB-2415E-02-00 | LABEL, CAUTION Price: $5.49 |
| 5 | B3J-21610-00-00 | REAR FENDER COMP. Price: $43.99 |
| 6 | 5XE-21635-10-00 | NUT, REAR FENDER Price: $14.49 |
| 7 | 5BE-21749-00-00 | COLLAR Price: $7.49 |
| 8 | 90387-08086-00 | COLLAR Price: $8.49 |
| 9 | 90105-06100-00 | BOLT, FLANGE Price: $8.49 |
| 10 | 90119-06268-00 | BOLT, WITH WASHER Price: $2.45 |
| 11 | 3D7-21642-00-00 | GUARD, FLAP Price: $31.99 |
| 12 | 97702-60016-00 | SCREW, TAPPING Price: $2.35 |
| 13 | 5FK-2175C-31-00 | TUNING FORK MARK This part replaces 5FK-2175C-30-00. Price: $5.99 |
