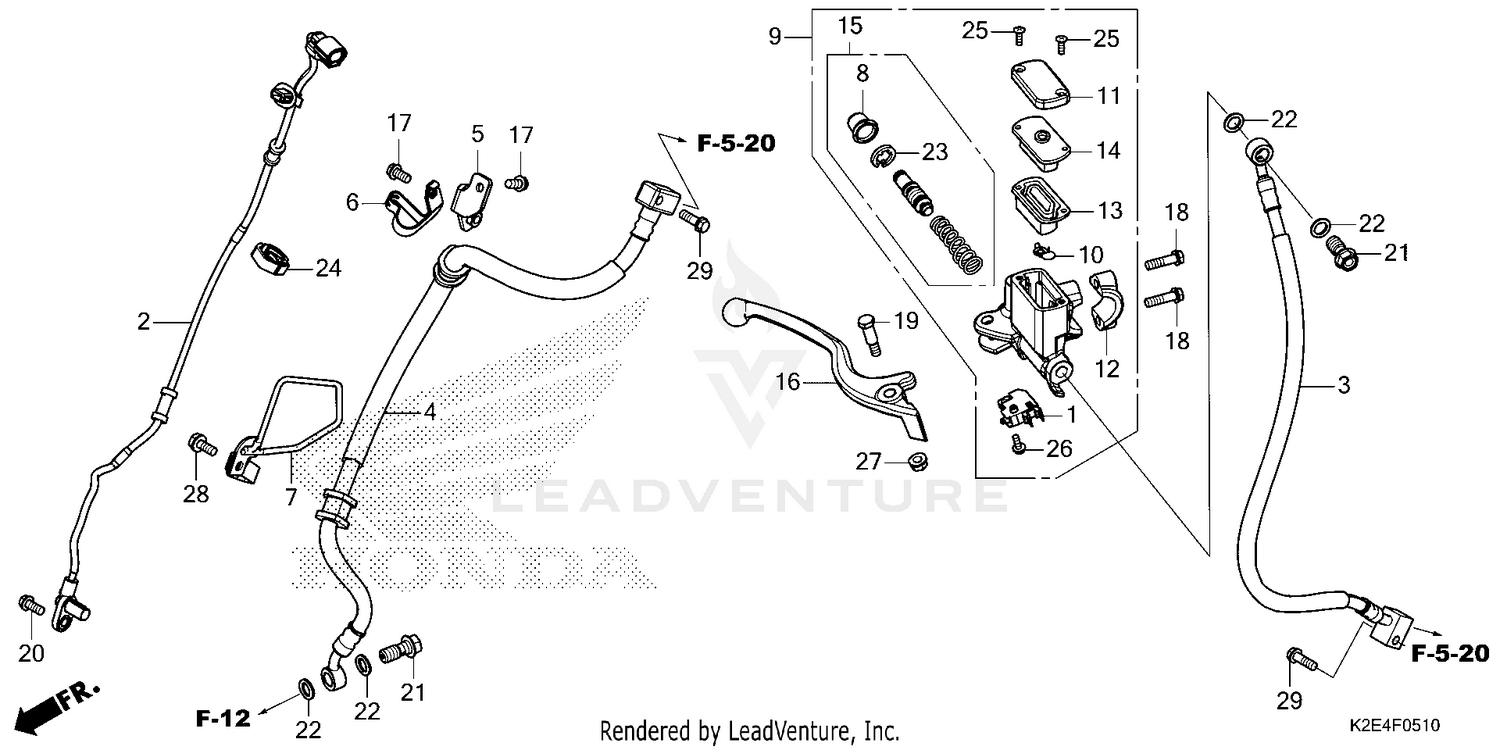

| Ref | Part Number | Description |
|---|
| 1 |
35340-MGS-D31 |
SWITCH ASSY., FR. STOP Price: $22.42 |
| 2 |
38520-K2E-T01 |
SENSOR, FR. WHEEL SPEED Price: $44.67 |
| 3 |
45125-K2E-T01 |
HOSE A, FR. BRAKE (NICHIRIN) Price: $49.76 |
| 4 |
45128-K2E-T01 |
HOSE B, FR. BRAKE (NICHIRIN) Price: $36.31 |
| 5 |
45156-K2E-T00 |
STAY, FR. BRAKE HOSE Price: $13.36 |
| 6 |
45157-K2E-T00 |
CLAMP A, FR. BRAKE HOSE Price: $6.64 |
| 7 |
45158-K2E-T00 |
CLAMP B, FR. BRAKE HOSE Price: $12.07 |
| 8 |
45504-410-003 |
BOOT Price: $14.75 |
| 9 |
45510-K0F-A01 |
MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) Price: $124.67 |
| 10 |
45512-MA6-006 |
PROTECTOR Price: $5.38 |
| 11 |
45513-KWN-671 |
CAP, MASTER CYLINDER Price: $22.36 |
| 12 |
45517-166-006 |
HOLDER, MASTER CYLINDER Price: $16.42 |
| 13 |
45520-GW0-911 |
DIAPHRAGM Price: $9.15 |
| 14 |
45521-GW0-911 |
PLATE, DIAPHRAGM Price: $7.20 |
| 15 |
45530-471-831 |
MASTER CYLINDER SET Price: $48.07 |
| 16 |
53175-KYT-922 |
LEVER, R. HANDLEBAR Price: $19.45 |
| 17 |
90013-GHB-610 |
BOLT, FLANGE (6X12) (L. SIDE ONLY) Price: $2.65 |
| 18 |
90013-GHB-660 |
BOLT, FLANGE (6X22) Price: $2.65 |
| 19 |
90114-KGH-900 |
BOLT, HANDLE LEVER PIVOT Price: $1.11 |
| 20 |
90117-KZZ-J80 |
BOLT, FLANGE (6X14) (NOT AVAILABLE) Price: $0.65 |
| 21 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 22 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 23 |
90651-MA5-671 |
CIRCLIP Price: $3.35 |
| 24 |
90690-MEF-800 |
CLAMP, HARNESS Price: $1.49 |
| 25 |
93600-04012-0G |
SCREW, FLAT (4X12) Price: $0.95 |
| 26 |
93893-04012-07 |
SCREW-WASHER (4X12) Price: $1.40 |
| 27 |
94050-06000 |
NUT, FLANGE (6MM) Price: $0.68 |
| 28 |
95701-06014-07 |
BOLT, FLANGE (6X14) Price: $1.52 |
