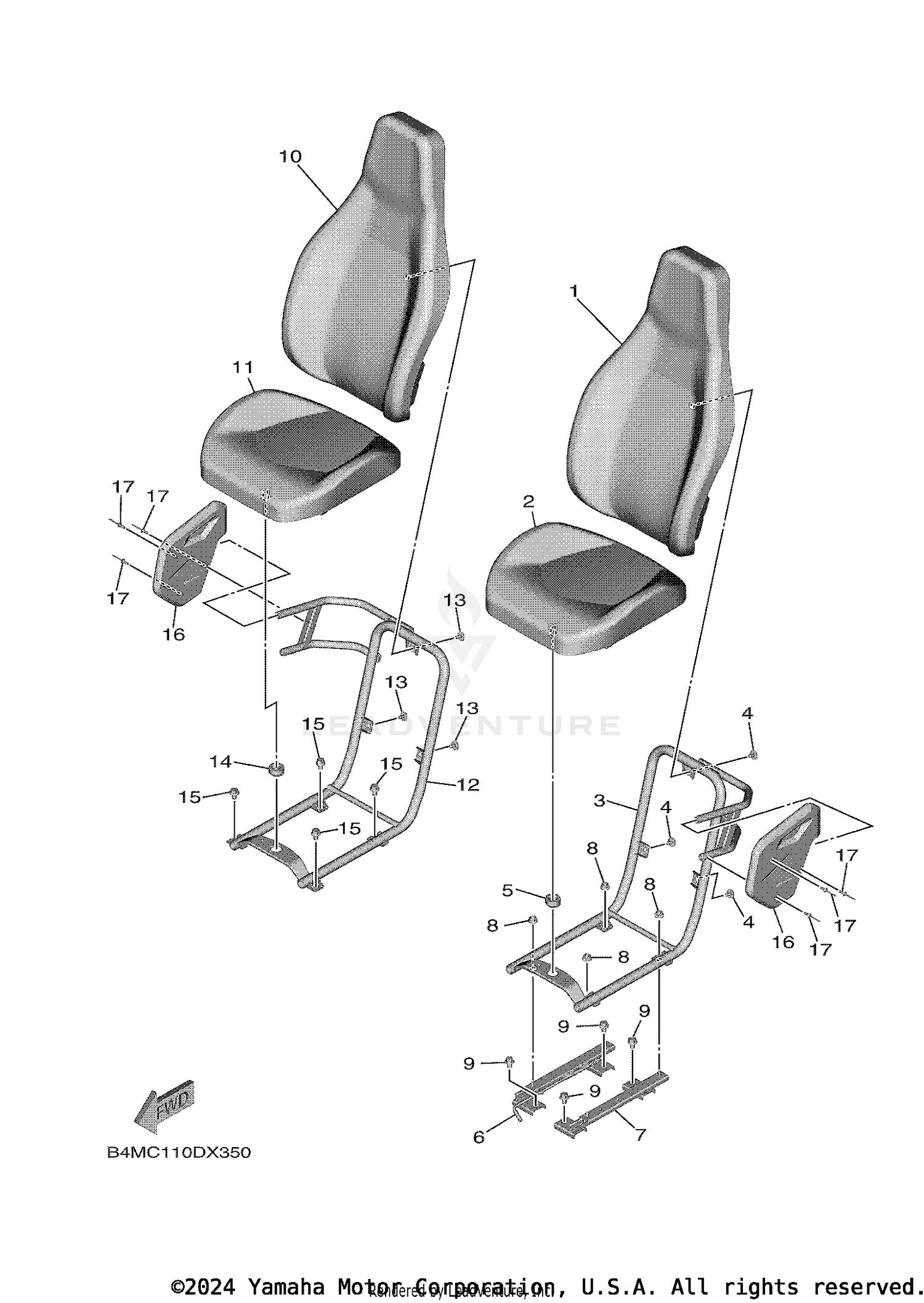

SEAT
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BG4-F4790-12-00 | SEAT BACK ASSY Price: $230.99 |
| 2 | BG4-K8420-11-00 | SEATASSY2 Price: $200.99 |
| 3 | B4J-F473C-02-00 | FRAME, SEAT 1 This part replaces B4J-F473C-01-00. Price: $169.99 |
| 4 | 90111-06180-00 | BOLT,HEX. SOCKET BUT Price: $2.20 |
| 5 | 1XD-F4742-00-00 | GROMMET Price: $4.00 |
| 6 | B4J-F7270-01-00 | ADJUSTER ASSY Price: $66.99 |
| 7 | B4J-F7260-01-00 | ADJUSTER ASSY Price: $50.99 |
| 8 | 95602-08200-00 | NUT, SELF-LOCKING Price: $3.20 |
| 9 | 95817-08012-00 | BOLT, FLANGE This part replaces 95812-08012-00. Price: $5.49 |
| 10 | BG4-F4790-12-00 | SEAT BACK ASSY Price: $230.99 |
| 11 | BG4-K8420-11-00 | SEATASSY2 Price: $200.99 |
| 12 | B4J-F473D-02-00 | FRAME, SEAT 2 This part replaces B4J-F473D-01-00. Price: $162.99 |
| 13 | 90111-06180-00 | BOLT,HEX. SOCKET BUT Price: $2.20 |
| 14 | 1XD-F4742-00-00 | GROMMET Price: $4.00 |
| 15 | 95817-08012-00 | BOLT, FLANGE This part replaces 95812-08012-00. Price: $5.49 |
| 16 | B4J-F117F-00-00 | COVER Price: $36.99 |
