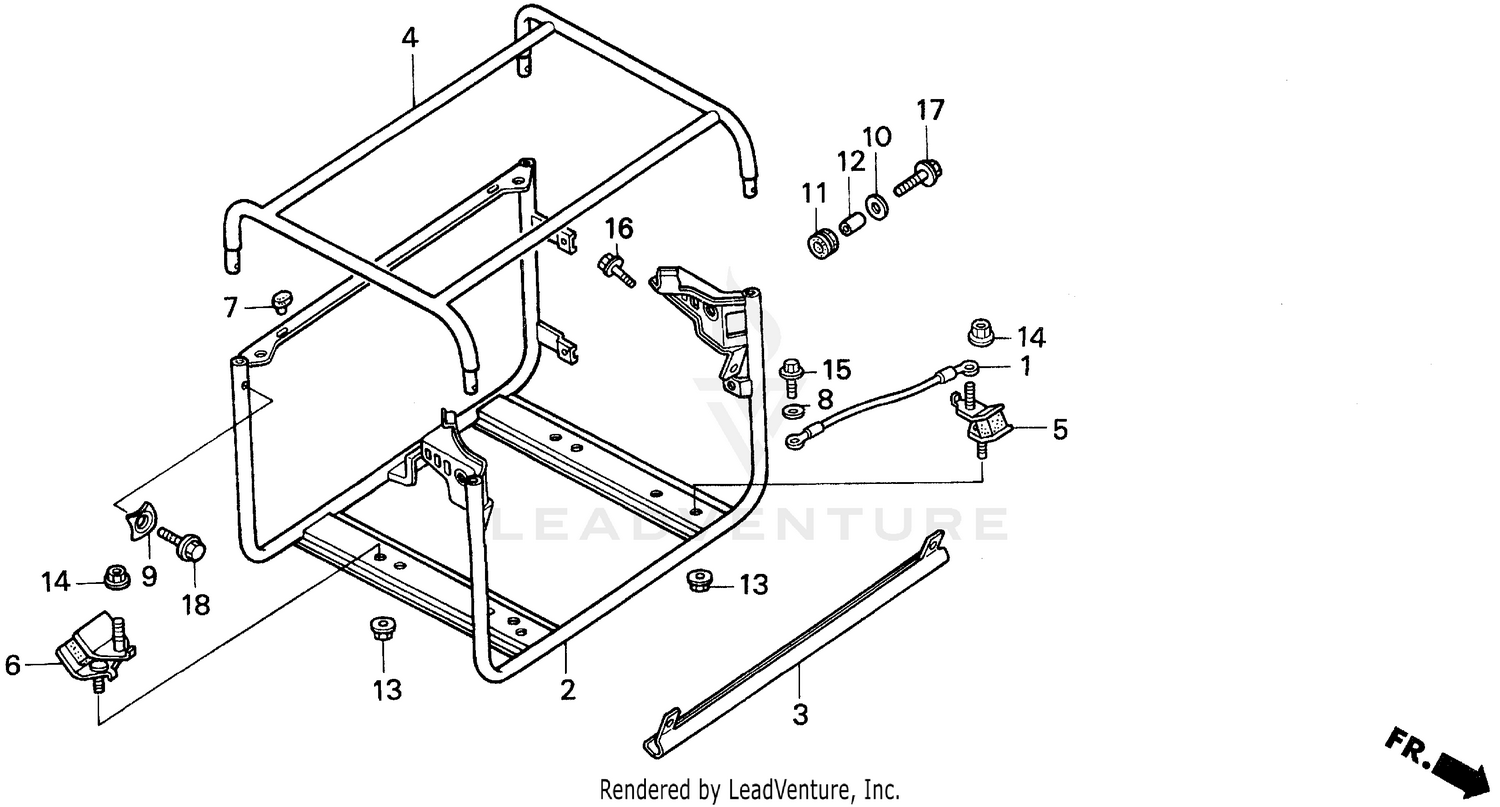

| Ref | Part Number | Description |
|---|
| 2 |
50310-ZC2-000 |
FRAME (LOWER) (NOT AVAILABLE) Price: Call Us |
| 3 |
50315-ZC2-000 |
CHANNEL, FR. Price: Call Us |
| 4 |
50350-ZC2-000 |
FRAME (UPPER) Price: Call Us |
| 5 |
68325-ZC2-000 |
RUBBER (LOWER) Price: $42.34 |
| 6 |
68325-899-000 |
RUBBER (LOWER) Price: $54.38 |
| 7 |
76122-952-000 |
STOPPER, DISCHARGE GUARD Use up to Frame SN 1186736. Price: $4.76 |
| 9 |
90501-898-000 |
WASHER, FRAME JOINT Price: $2.92 |
| 10 |
90506-500-000 |
WASHER, AIR DUCT Price: $2.37 |
| 11 |
90852-898-000 |
RUBBER, CONTROL BOX Price: $5.06 |
| 12 |
91552-898-000 |
COLLAR, CONTROL BOX Price: $5.04 |
| 13 |
94050-08000 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143). Price: $1.18 |
| 14 |
94050-10000 |
SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867). Price: $1.94 |
| 16 |
95701-06012-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277. Price: $2.04 |
| 17 |
95701-06018-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X18) This part replaces 95700-06018-00. Price: $2.04 |
