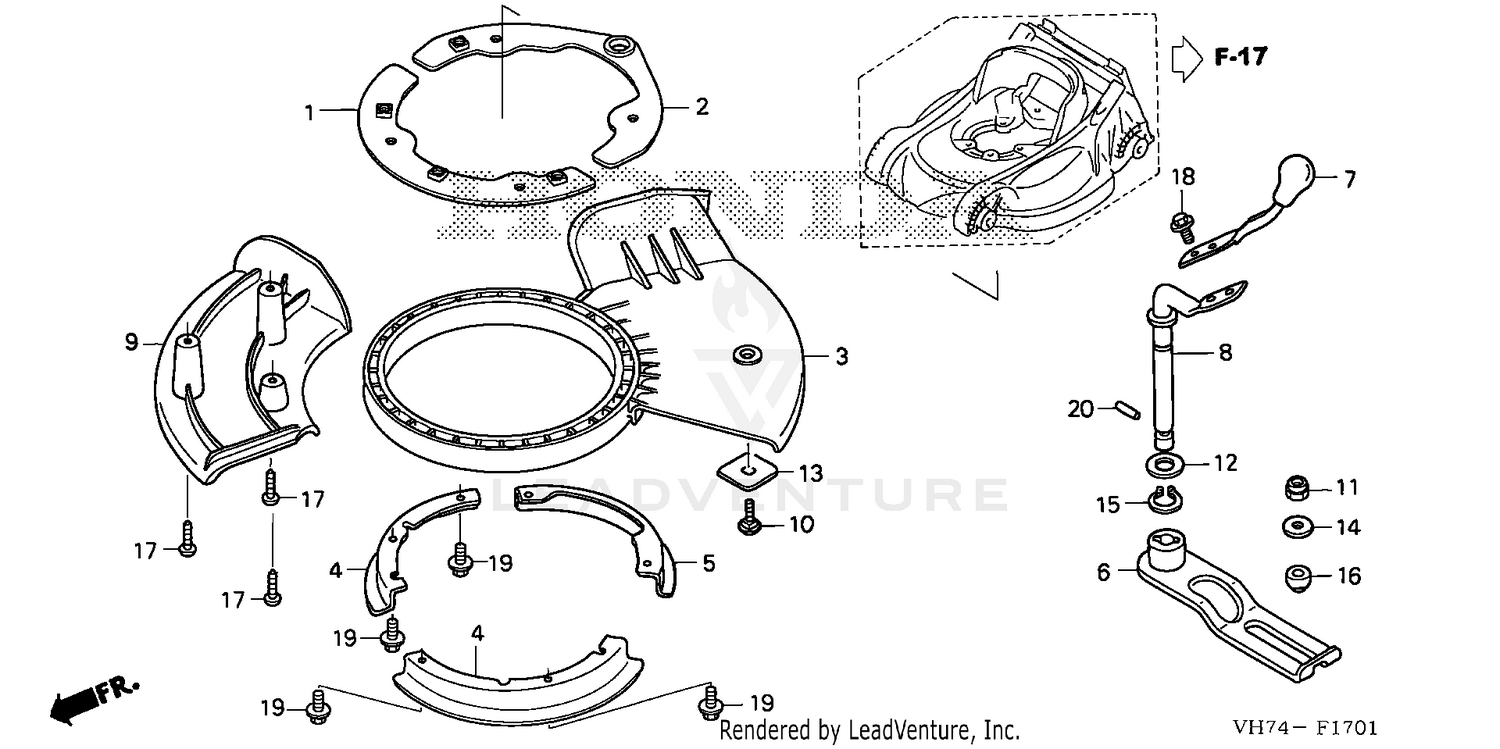

| Ref | Part Number | Description |
|---|
| 1 |
76256-VH7-000 |
PLATE, FR. BASE Price: $15.20 |
| 2 |
76257-VH7-000 |
PLATE, RR. BASE Price: $34.32 |
| 3 |
76262-VH7-010 |
SHUTTER Price: $22.56 |
| 4 |
76263-VH7-000 |
HOLDER, FR. SHUTTER Price: $15.10 |
| 5 |
76264-VH7-000 |
HOLDER, RR. SHUTTER Price: $69.10 |
| 6 |
76265-VH7-010 |
ARM, SHUTTER Price: $43.85 |
| 7 |
76270-VH7-000ZA |
LEVER, SHUTTER *G186R* (GRANNY APPLE GREEN) Price: $13.40 |
| 8 |
76275-VH7-010 |
ARM, LEVER Price: $29.76 |
| 9 |
76286-VH7-010 |
RAMP, SCROLL Price: $7.80 |
| 10 |
90101-VH7-000 |
BOLT, SPECIAL (6X19) Price: $4.28 |
| 11 |
90303-VG3-000 |
NUT, NYLON LOCK (6MM) Price: $0.16 |
| 12 |
90502-VE2-800 |
WASHER, THRUST (13MM) Price: $0.42 |
| 13 |
90502-VH7-000 |
WASHER, ARM Price: $3.42 |
| 14 |
90503-VH7-000 |
WASHER (6.5X18) Price: $1.86 |
| 15 |
90651-VE2-800 |
CIRCLIP (OUTER) (12.7MM) Price: $0.22 |
| 16 |
91557-VH7-000 |
COLLAR, ARM Price: $14.18 |
| 17 |
93913-25420 |
SCREW, TAPPING (5X16) Price: $1.14 |
| 18 |
95701-06008-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353). Price: $4.22 |
| 19 |
95701-08010-00 |
BOLT, FLANGE (8X10) Price: $1.54 |
