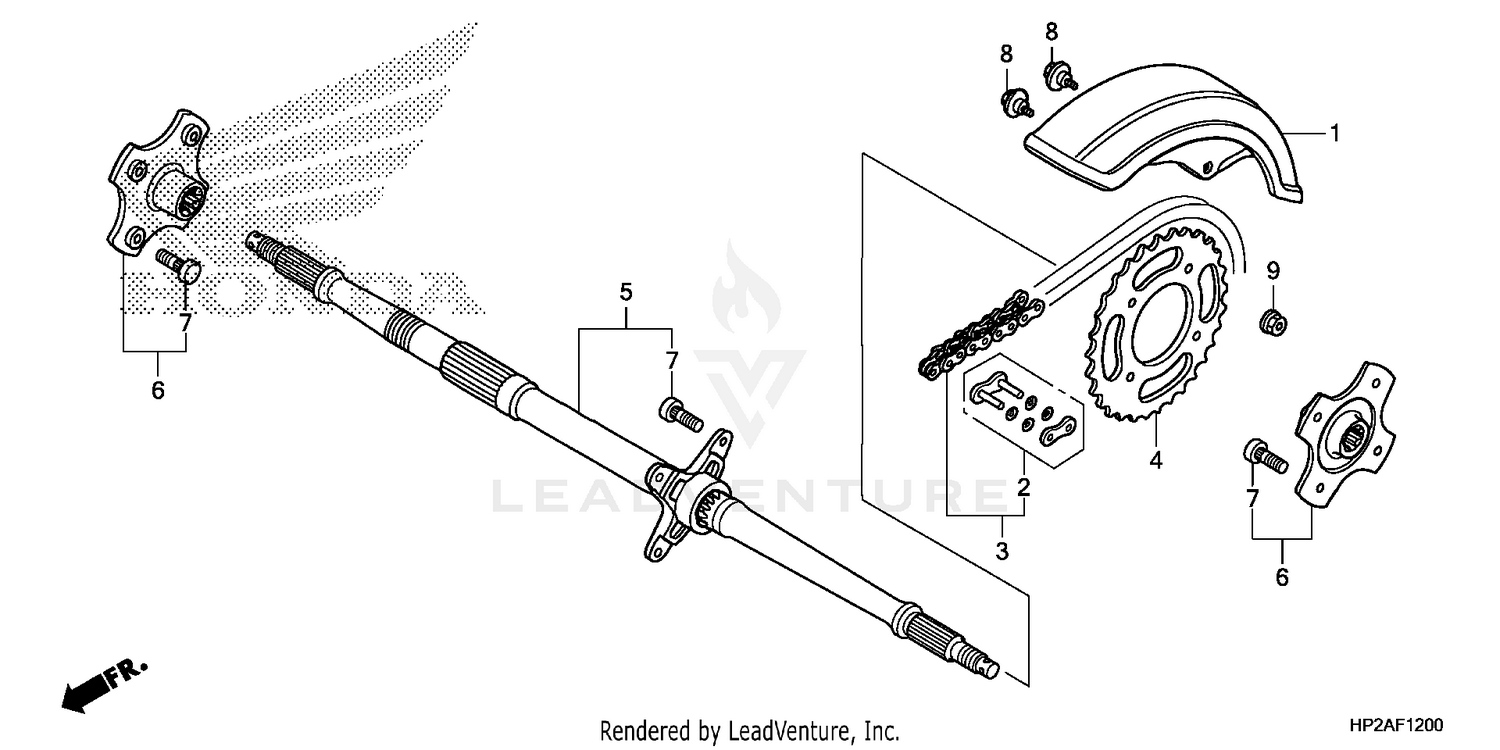

FINAL DRIVEN GEAR
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 40510-HF7-000 | COVER, DRIVE CHAIN Price: $35.02 |
| 2 | 40531-HP2-672 | MASTER LINK (RK EXCEL) Price: $29.47 |
| 2 | 40545-KRH-D21 | MASTER LINK (DAIDO) Price: $11.80 |
| 3 | 40540-HP2-671 | CHAIN, DRIVE (DID428V-100ZB) (DAIDO) (STANDARD LINK 98L) Price: $155.58 |
| 3 | 40540-HP2-672 | CHAIN, DRIVE (RK428HOZ1-100LJFZ) (RK EXCEL) (STANDARD LINK 98L) Price: $154.24 |
| 4 | 41201-HF7-000 | SPROCKET, FINAL DRIVEN (50T) Price: $81.16 |
| 5 | 42310-HF7-000 | AXLE, RR. WHEEL Price: $524.33 |
| 6 | 42410-HF7-000 | HUB, RR. WHEEL Price: $151.93 |
| 7 | 90103-VM6-300 | BOLT, WHEEL (10X24.5) Price: $8.33 |
| 8 | 90113-GF0-000 | BOLT, FLANGE (6MM) Price: $5.31 |
