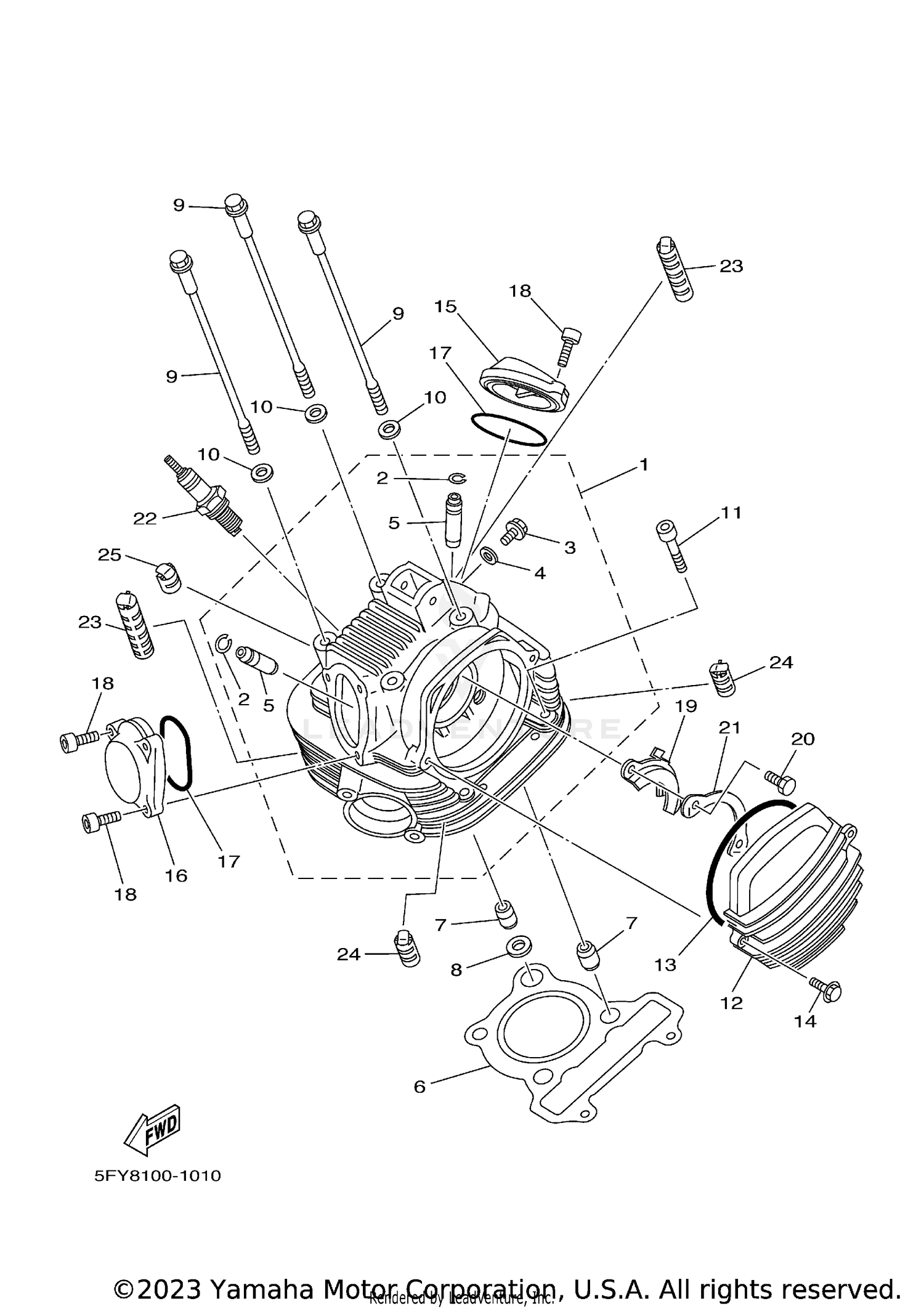

| Ref | Part Number | Description |
|---|
| 1 |
15A-11110-04-00 |
CYLINDER HEAD ASSY Price: $736.99 |
| 2 |
93440-10085-00 |
CIRCLIP Price: $9.49 |
| 3 |
90153-06029-00 |
SCREW, HEXAGON Price: $11.49 |
| 4 |
90430-06014-00 |
GASKET Price: $8.60 |
| 5 |
5H0-11133-11-00 |
GUIDE, INTAKE VALVE Price: $74.99 |
| 6 |
1NU-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $50.99 |
| 7 |
99530-14016-00 |
PIN, DOWEL A Price: $3.80 |
| 8 |
90430-14131-00 |
GASKET Price: $9.49 |
| 9 |
90105-08117-00 |
BOLT, FLANGE Price: $9.49 |
| 10 |
90201-080L7-00 |
WASHER, PLATE This part replaces 90201-08609-00. Price: $4.05 |
| 11 |
91317-08045-00 |
BOLT, HEX. SOCKET HEAD Price: $9.49 |
| 12 |
15A-11185-00-00 |
COVER, CYLINDER HEAD SIDE 3 Price: $76.99 |
| 13 |
93211-05471-00 |
O-RING Price: $16.49 |
| 14 |
95027-06020-00 |
BOLT, FLANGE Price: $1.20 |
| 15 |
15A-11186-00-00 |
COVER, CYLINDER HEAD SIDE 2 Price: $41.99 |
| 16 |
15A-11187-00-00 |
COVER, CYLINDER HEAD SIDE 3 Price: $31.99 |
| 17 |
93210-57634-00 |
O-RING Price: $15.49 |
| 18 |
91317-06018-00 |
BOLT, HEX. SOCKET HEAD Price: $9.49 |
| 19 |
5H0-1111F-00-00 |
PLATE Price: $26.99 |
| 20 |
97017-06012-00 |
BOLT This part replaces 97007-06012-00. Price: $4.05 |
| 21 |
90215-06184-00 |
WASHER, LOCK Price: $11.49 |
| 23 |
15A-11162-00-00 |
ABSORBER 2 Price: $22.99 |
| 24 |
5H0-11161-00-00 |
ABSORBER 1 This part replaces 5H0-11162-00-00. Price: $10.99 |
