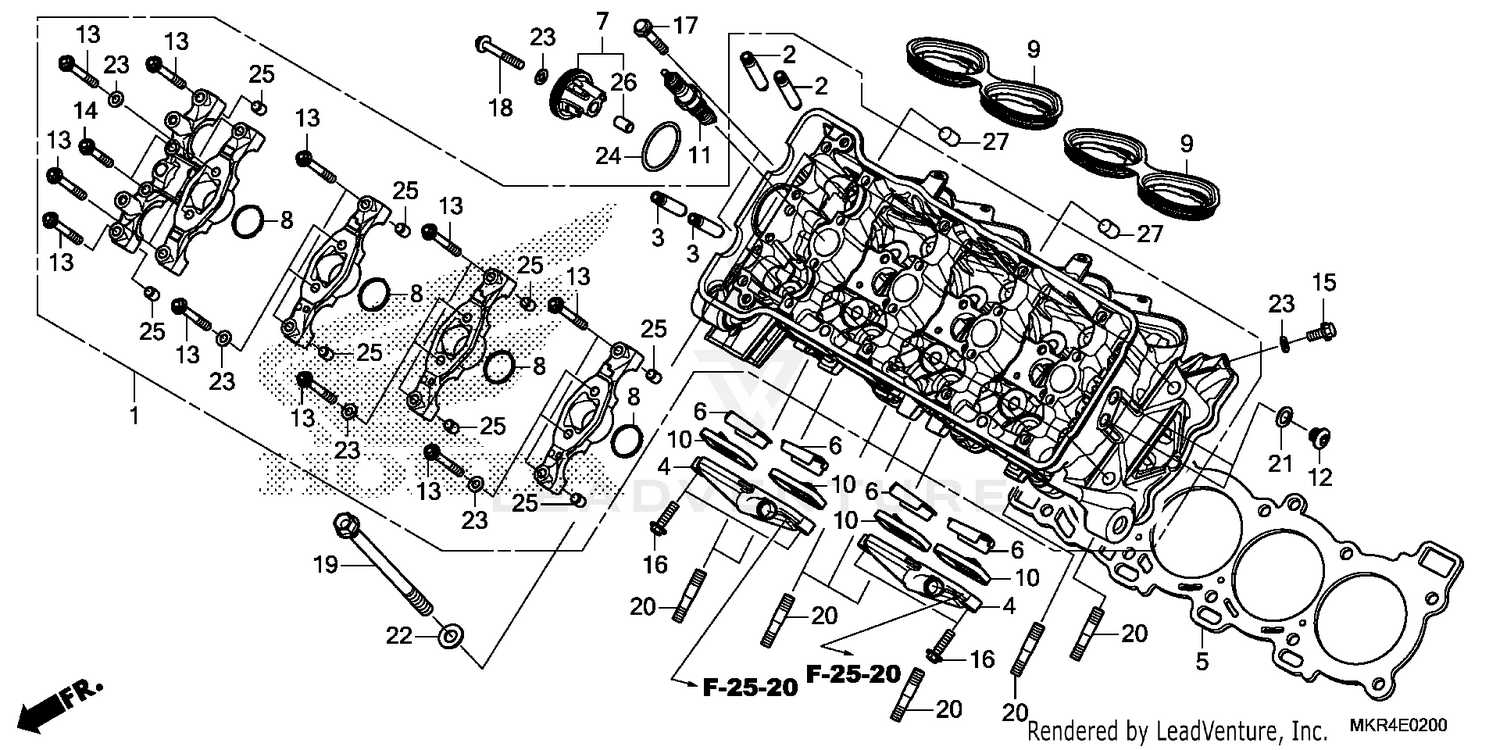

| Ref | Part Number | Description |
|---|
| 1 |
12010-MKR-D10 |
CYLINDER HEAD ASSY. Price: $2,004.99 |
| 2 |
12204-MKR-305 |
GUIDE, VALVE (OVER SIZE) Price: $27.15 |
| 3 |
12205-MKR-305 |
GUIDE, EX. VALVE (OVER SIZE) Price: $23.24 |
| 4 |
12230-MKR-D10 |
CASE, REED VALVE Price: $33.87 |
| 5 |
12251-MKR-D11 |
GASKET, CYLINDER HEAD Price: $131.00 |
| 6 |
12341-MAT-750 |
PLATE, PORT (AI) Price: $15.98 |
| 7 |
12350-MKR-D10 |
CAP, CAM CHAIN CHAMBER Price: $86.93 |
| 8 |
12395-MKR-D10 |
O-RING, PLUG HOLE Price: $4.29 |
| 9 |
16210-MKR-D10 |
INSULATOR, THROTTLE BODY Price: $93.40 |
| 10 |
18601-MCJ-003 |
VALVE, REED Price: $17.55 |
| 11 |
31911-MKF-D71 |
SPARK PLUG (SILMAR10C9S) (NGK) Price: $32.31 |
| 12 |
90009-MGZ-J00 |
BOLT, SOCKET (10MM) Price: $4.49 |
| 13 |
90011-MKR-D10 |
BOLT, FLANGE TORX (6X45) Price: $5.51 |
| 14 |
90012-MKR-D10 |
BOLT, FLANGE TORX (6X37) Price: $5.18 |
| 15 |
90027-GHB-630 |
BOLT, FLANGE (6X14) Price: $2.47 |
| 16 |
90027-GHB-670 |
BOLT, FLANGE (6X22) Price: $2.56 |
| 17 |
90027-GHB-710 |
BOLT, FLANGE (6X32) Price: $2.73 |
| 18 |
90027-GHB-740 |
BOLT, FLANGE (6X40) Price: $3.11 |
| 19 |
90034-MKR-D10 |
BOLT, FLANGE (10X150.5) Price: $12.71 |
| 20 |
90035-MM5-000 |
BOLT, STUD (8X24) Price: $6.42 |
| 21 |
90443-MB0-000 |
WASHER, SEALING (10.2MM) Price: $3.53 |
| 22 |
90453-MKE-A00 |
WASHER, PLAIN (10MM) Price: $3.24 |
| 23 |
90463-ML7-000 |
WASHER, SEALING (6.5MM) Price: $3.53 |
| 24 |
91302-MKR-D11 |
O-RING (36X2) Price: $3.18 |
| 25 |
94301-08100 |
PIN A, DOWEL (8X10) Price: $2.35 |
| 26 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
