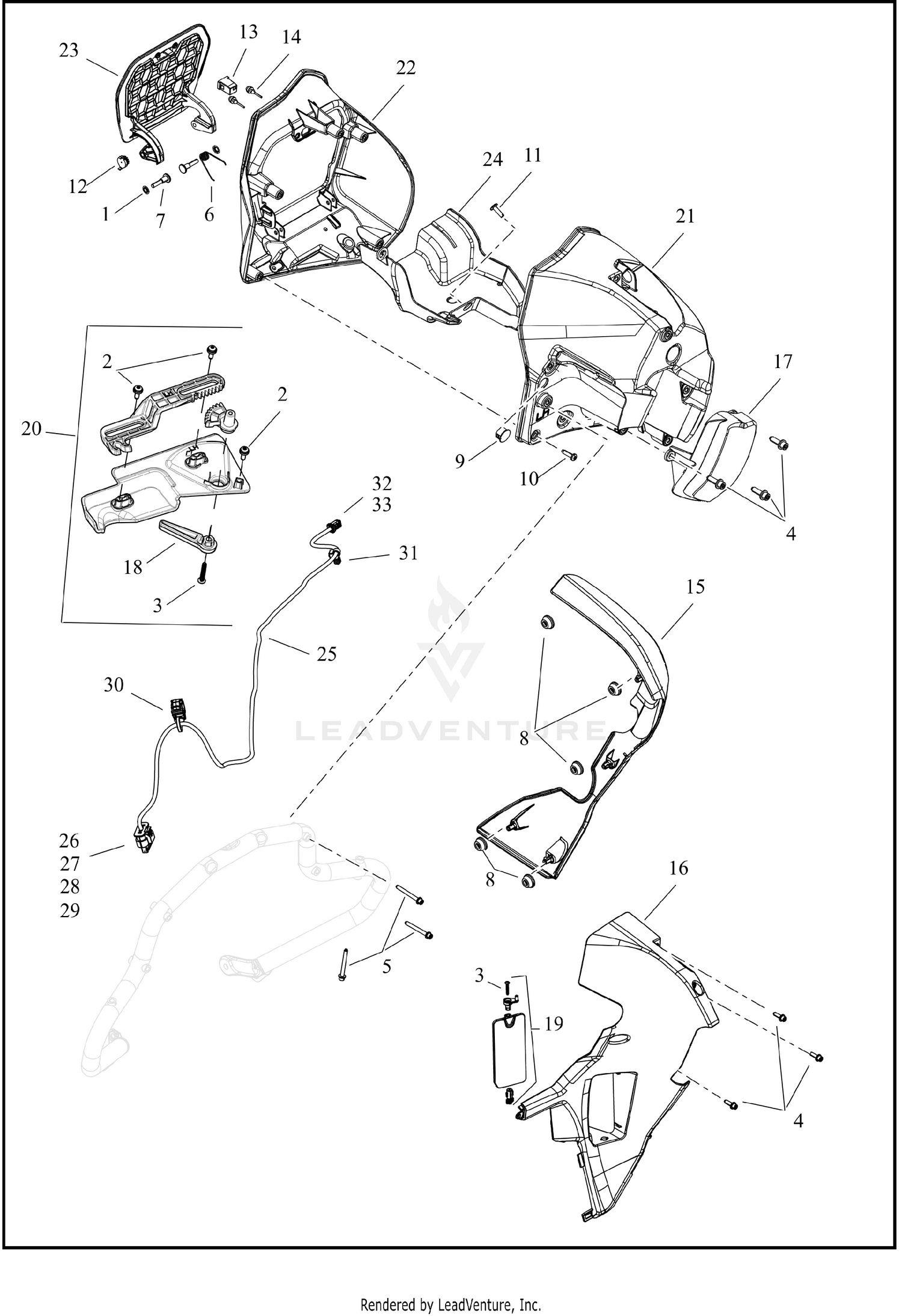

FAIRING, LOWER, LEFT - FLHXL/FLTRXL
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 10100033 | PUSHNUT,8-PRONG,STAINLESS Price: $2.55 |
| 2 | 10200063 | TORX SEMS,8-32X1/2,PLAS 48-2 T15 Price: $0.55 |
| 3 | 10200387 | SCREW,PLASTITE,8-16X1L,PH Price: $3.90 |
| 4 | 10201368 | SCREW,TORX SOCKET HD CAP,SEMS,1/4-20 Price: $1.09 |
| 5 | 10201428 | SCREW,TORX SOCKET HD CAP,SEMS,1/4-20 Price: $1.08 |
| 8 | 12100153 | GROMMET,CONSOLE Price: $28.57 |
| 10 | 12600049 | HDW,MISC,SCREW,CAP,SEMS,W/LOCKPATCH Price: $0.55 |
| 28 | 69201427 | CONNECTOR,X Price: $2.35 |
| 29 | 69201301 | SEAL,CONN/TERM,X Price: $2.20 |
