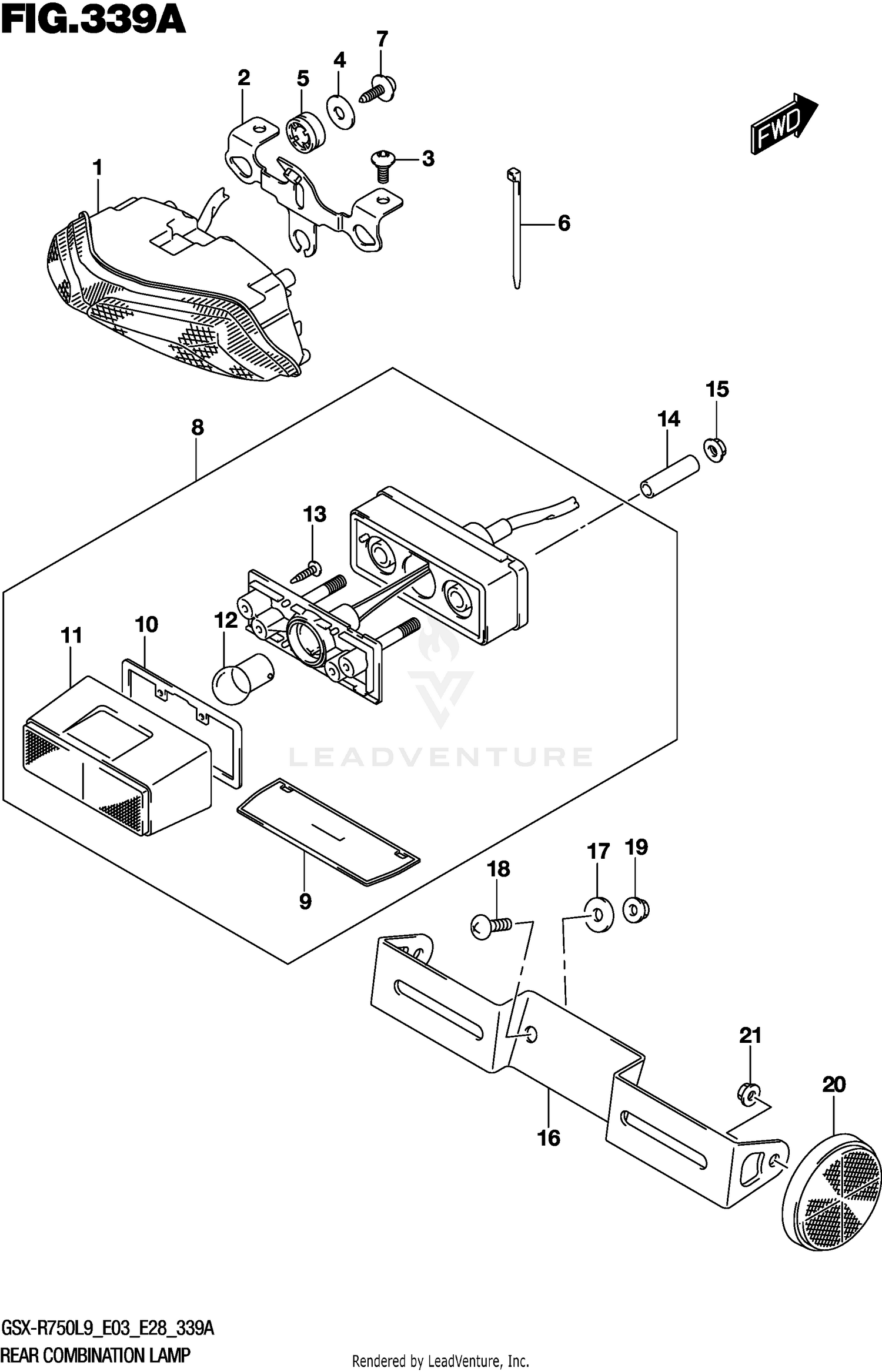

REAR COMBINATION LAMP
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35710-14JC0 | LAMP ASSY, REAR COMB This part replaces 35710-14JA0. Price: $136.02 |
| 2 | 35726-14J00 | BRACKET,REAR COMB LAMP Price: $19.18 |
| 3 | 09139-05074 | BOLT (5X13) Price: $3.02 |
| 4 | 09160-05501 | WASHER (5.5X20X1.2) Price: $2.25 |
| 5 | 09320-10049 | CUSHION Price: $2.87 |
| 6 | 09407-10404 | CLAMP (L:100) Price: $3.06 |
| 7 | 03541-0516A | SCREW Price: $1.65 |
| 8 | 35910-41G32 | LAMP ASSY, LICENSE Price: $95.55 |
| 12 | 09471-12058 | BULB (12V5W) This part replaces 09471-12140. Price: $1.67 |
| 14 | 09180-06356 | SPACER (6.5X9X34) Price: $4.93 |
| 15 | 09159-06096 | NUT (M6) Price: $3.31 |
| 16 | 35927-14J30 | BRACKET,LICENSE PLATE Price: $16.96 |
| 17 | 09160-06077 | WASHER (6.5X20X1.2) Price: $2.30 |
| 18 | 02142-0616A | SCREW Price: $1.65 |
| 19 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 20 | 35970-14A20 | REFLECTOR ASSY, RR SIDE Price: $19.20 |
