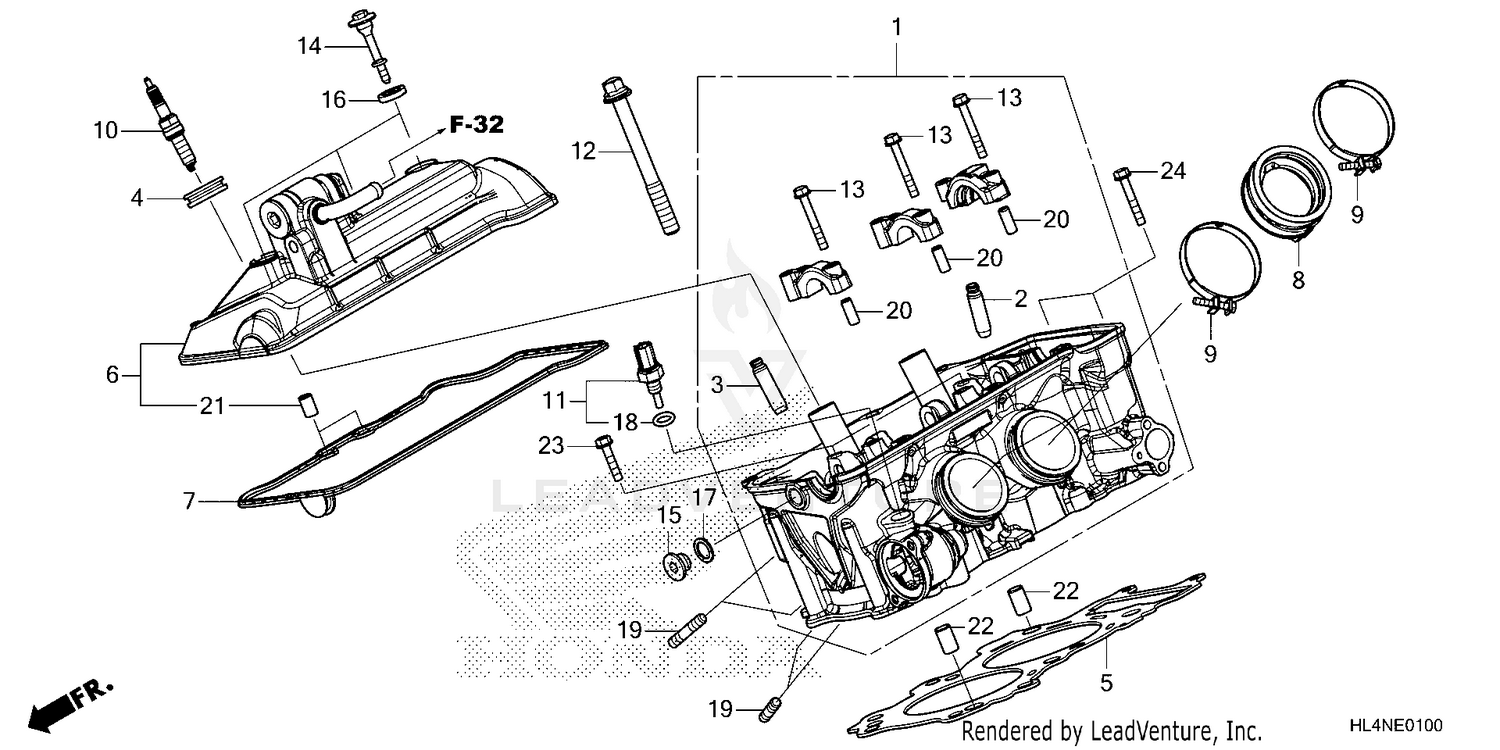

| Ref | Part Number | Description |
|---|
| 1 |
12010-HL4-AJ0 |
CYLINDER HEAD ASSY. Price: $1,987.70 |
| 2 |
12204-HL4-305 |
GUIDE, VALVE (OVER SIZE) Price: $19.31 |
| 3 |
12205-HL4-305 |
GUIDE, EX. VALVE (OVER SIZE) Price: $19.31 |
| 4 |
12229-HL4-000 |
SEAL, PLUG TUBE Price: $10.05 |
| 5 |
12251-HL6-A01 |
GASKET, CYLINDER HEAD Price: $55.84 |
| 6 |
12300-HL4-AJ0 |
COVER, CYLINDER HEAD Price: $410.78 |
| 7 |
12391-HL4-000 |
GASKET, HEAD COVER Price: $31.73 |
| 8 |
16211-HL4-000 |
INSULATOR, THROTTLE BODY Price: $21.31 |
| 9 |
16218-HL4-000 |
BAND, INSULATOR Price: $10.65 |
| 10 |
31909-HL4-AJ1 |
S/PLG (LMAR7M-9S) Price: $22.13 |
| 11 |
37870-KZR-601 |
SENSOR ASSY., WATER TEMPERATURE Price: $10.75 |
| 12 |
90007-HL4-003 |
BOLT-WASHER (12X118) Price: $10.69 |
| 13 |
90017-MA6-000 |
BOLT, FLANGE (6X45.5) Price: $4.20 |
| 14 |
90017-MAL-600 |
BOLT, HEAD COVER Price: $16.87 |
| 15 |
90032-MG9-000 |
BOLT, HYDRAULIC LASH ADJUSTER STOPPER Price: $11.16 |
| 16 |
90543-MV9-670 |
RUBBER, MOUNTING (Honda Code 3699139) Price: $6.20 |
| 17 |
90544-KF0-000 |
WASHER, SEALING (14MM) Price: $4.09 |
| 18 |
91307-PLC-004 |
O-RING (9.5X1.9) (PANASONIC) Price: $3.90 |
| 19 |
92900-08028-0E |
BOLT 2, STUD (8X28) Price: $2.67 |
| 20 |
94301-08200 |
PIN, DOWEL (8X20) (Honda Code 1417369) Price: $2.35 |
| 21 |
94301-10160 |
PIN, DOWEL (10X16) (Honda Code 0058206) Price: $2.58 |
| 22 |
94301-14200 |
PIN A, DOWEL (14X20) Price: $2.58 |
| 23 |
95701-06030-00 |
BOLT, FLANGE (6X30) Price: $1.97 |
