Parts Catalog

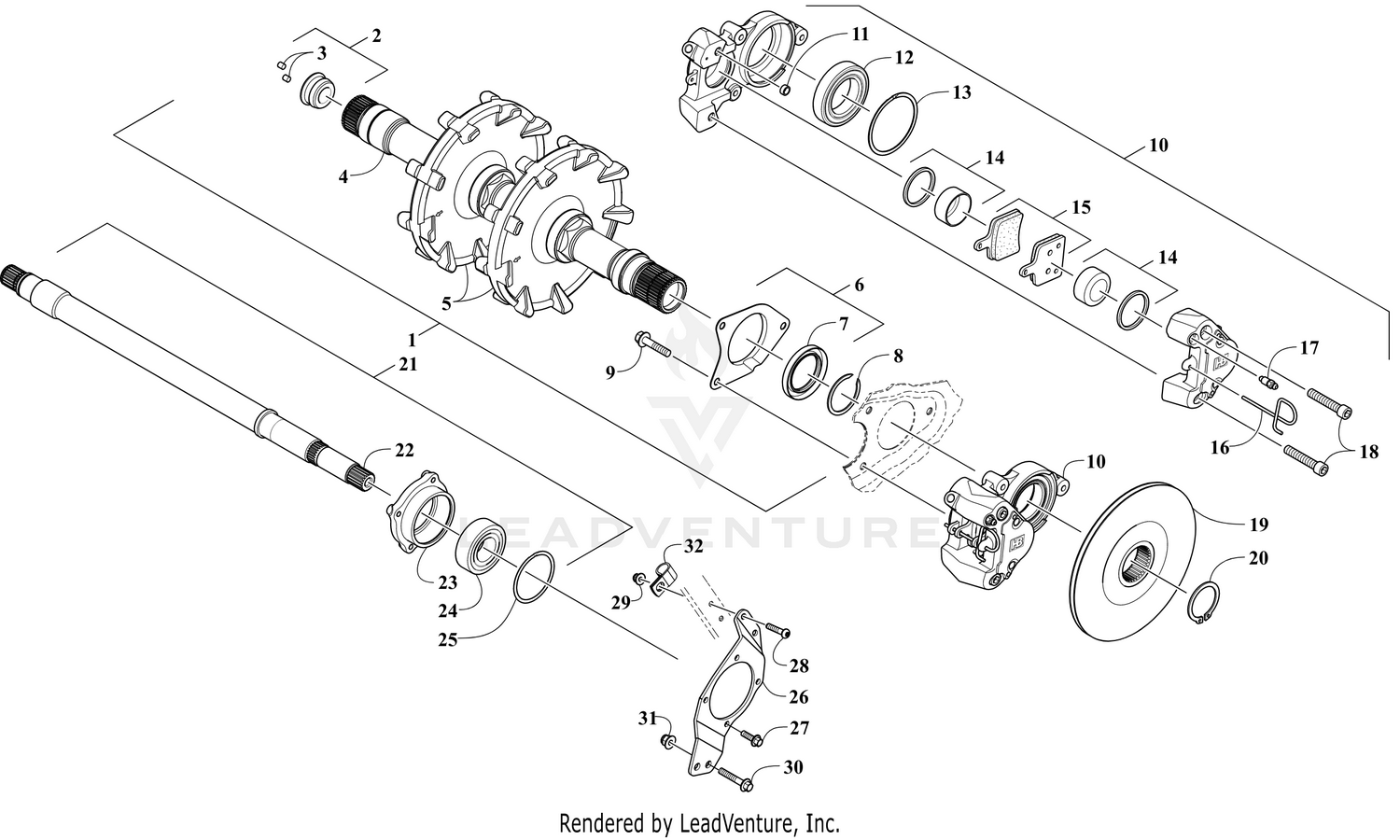

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES [109250]

Parts (25)

Ref	Part Number	Description
3	2602-211	Magnet Price: $7.23
4	3602-321	Driveshaft Price: $166.95
5	1602-517	Sprocket, Drive Price: $64.95
7	2402-612	Seal Price: $4.35
8	2602-233	Ring, Retaining Price: $2.42
9	8408-831	Screw, Cap Price: $1.08
11	2602-411	Seal Price: $5.59
12	2602-198	Bearing Price: $26.95
13	2602-280	Ring, Retaining Price: $3.88
14	2602-410	Piston Set Price: $82.95
16	2602-409	Pin, Retaining Price: $6.06
17	2602-408	Fitting, Bleed Price: $7.23
18	2602-412	Screw, Cap Price: $5.15
19	2602-249	Disc, Brake Price: $246.95
20	2602-629	Ring, Retaining Price: $2.91
22	3602-295	Shaft, Driven Price: $138.95
23	3602-296	Hub, Bearing Price: $27.95
24	2602-524	Bearing Price: $14.49
25	2602-236	Ring, Retaining Price: $3.38
26	1607-995	Bracket, Hub Bearing Price: $19.35
27	8408-621	Screw, Cap Price: $1.08
28	8408-630	Screw, Cap Price: $1.08
29	8427-602	Nut, Hex Price: $0.23
30	2623-026	Screw, Machine Price: $1.80
31	8427-802	Nut, Lock Price: $0.58
