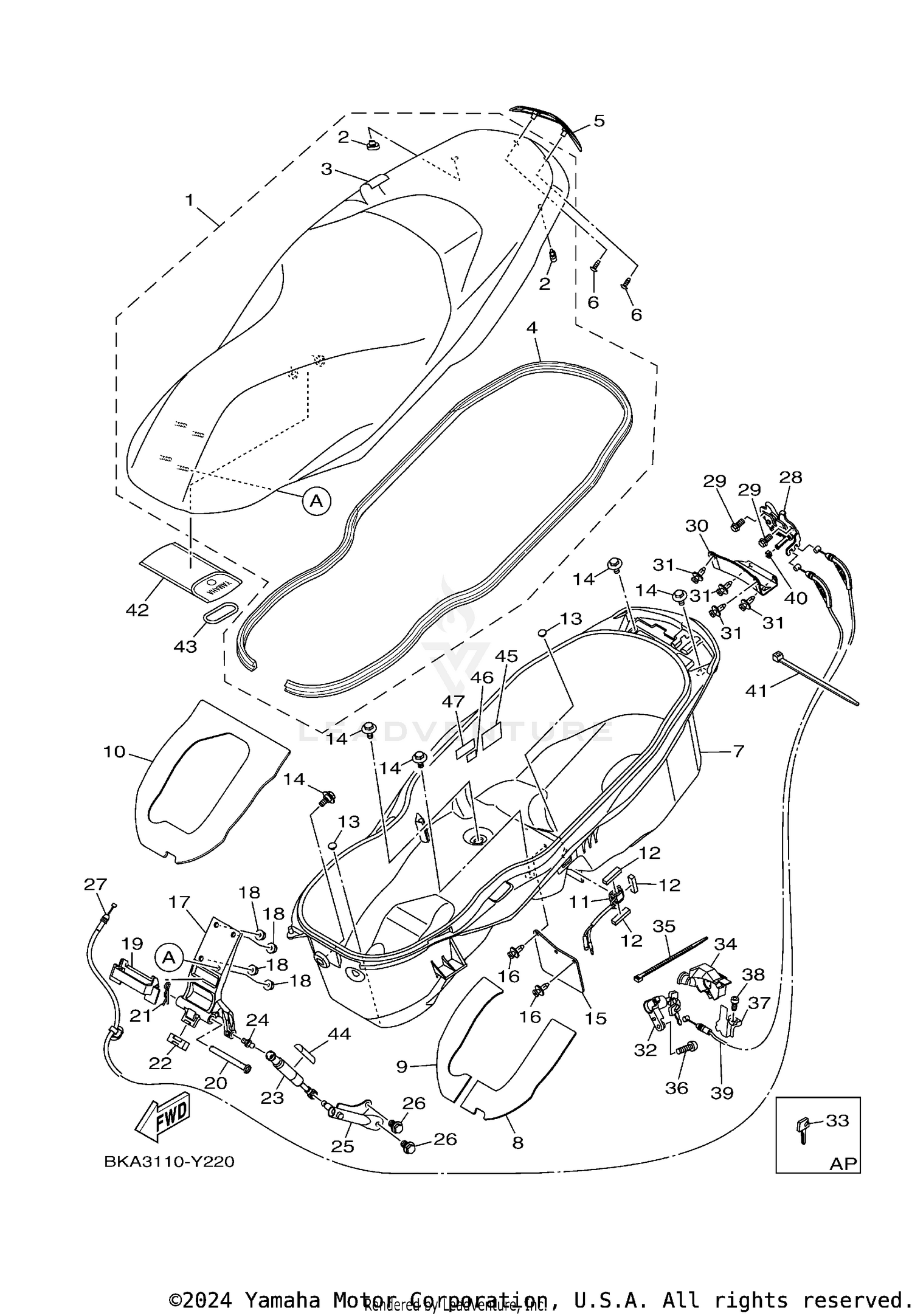

| Ref | Part Number | Description |
|---|
| 1 |
BKA-F4730-00-00 |
DOUBLE SEAT ASSY Price: $250.99 |
| 2 |
B74-F4741-00-00 |
PAD, SEAT Price: $1.40 |
| 3 |
BKA-F470F-00-00 |
SEAT COVER COMP. Price: $109.99 |
| 5 |
BED-F4786-00-00 |
EMBLEM Price: $60.99 |
| 6 |
97707-40012-00 |
SCREW, TAPPING This part replaces 97702-40012-00. Price: $9.49 |
| 7 |
BKA-F473R-00-00 |
BOX 1 Price: $101.99 |
| 8 |
B74-F476U-00-00 |
PROTECTOR 1 Price: $15.99 |
| 9 |
BKA-F476V-00-00 |
PROTECTOR,2 Price: $16.49 |
| 10 |
BKA-F4723-00-00 |
DAMPER, SEAT Price: $10.49 |
| 11 |
B74-H4770-00-00 |
LIGHT, ACCESSORY Price: $40.99 |
| 12 |
90520-10834-00 |
DAMPER, PLATE Price: $0.65 |
| 13 |
90338-06809-00 |
PLUG Price: $2.25 |
| 14 |
90109-068B5-00 |
BOLT Price: $0.50 |
| 15 |
B74-F1621-00-00 |
FLAP Price: $3.35 |
| 16 |
90269-06812-00 |
RIVET Price: $1.30 |
| 17 |
B74-F4769-00-00 |
HINGE, SEAT Price: $27.99 |
| 18 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 19 |
BKA-F4785-00-00 |
MOLE, SEAT Price: $5.49 |
| 20 |
B74-F4727-00-00 |
PIN, SEAT FITTING Price: $11.49 |
| 21 |
90468-18121-00 |
CLIP Price: $1.35 |
| 22 |
B74-F4639-00-00 |
STOPPER, PLATE Price: $1.15 |
| 23 |
B74-F478G-00-00 |
STOPPER Price: $59.99 |
| 24 |
B74-F474E-01-00 |
ARM Price: $3.80 |
| 25 |
B74-F1121-00-00 |
BRACKET, DAMPER Price: $13.49 |
| 26 |
95E32-08012-00 |
BOLT, FLANGE DEEP RE Price: $0.95 |
| 27 |
B74-F478E-00-00 |
CABLE, SEAT LOCK Price: $38.99 |
| 28 |
B65-F4780-00-00 |
SEAT LOCK ASSY Price: $31.99 |
| 29 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 30 |
B74-F472T-01-00 |
COVER, SEAT LOCK Price: $4.00 |
| 31 |
90269-06812-00 |
RIVET Price: $1.30 |
| 32 |
B74-F465E-00-00 |
ROTOR COMP. Price: $13.99 |
| 34 |
B74-F465B-00-00 |
CAP, ROTOR Price: $3.70 |
| 35 |
1UA-82591-00-00 |
BAND This part replaces 90464-36800-00. Price: $5.49 |
| 36 |
92012-06020-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 37 |
BKA-F471D-00-00 |
PLATE, LOCK 1 Price: $3.20 |
| 38 |
91312-05010-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 39 |
B74-F479D-00-00 |
WIRE, SEAT LOCK 2 Price: $21.99 |
| 40 |
1S7-F4768-00-00 |
STOPPER Price: $0.85 |
| 41 |
90464-50800-00 |
CLAMP Price: $1.85 |
| 42 |
B74-F8100-00-00 |
TOOL KIT Price: $11.49 |
| 43 |
B74-F8175-00-00 |
HOLDER, TOOL Price: $1.00 |
| 44 |
B74-F2259-10-00 |
LABEL, WARNING Price: $20.99 |
| 45 |
B74-F1668-11-00 |
LABEL, TIRE Price: $0.95 |
| 46 |
BB8-F4877-30-00 |
LABEL, CAUTION Price: $13.49 |
