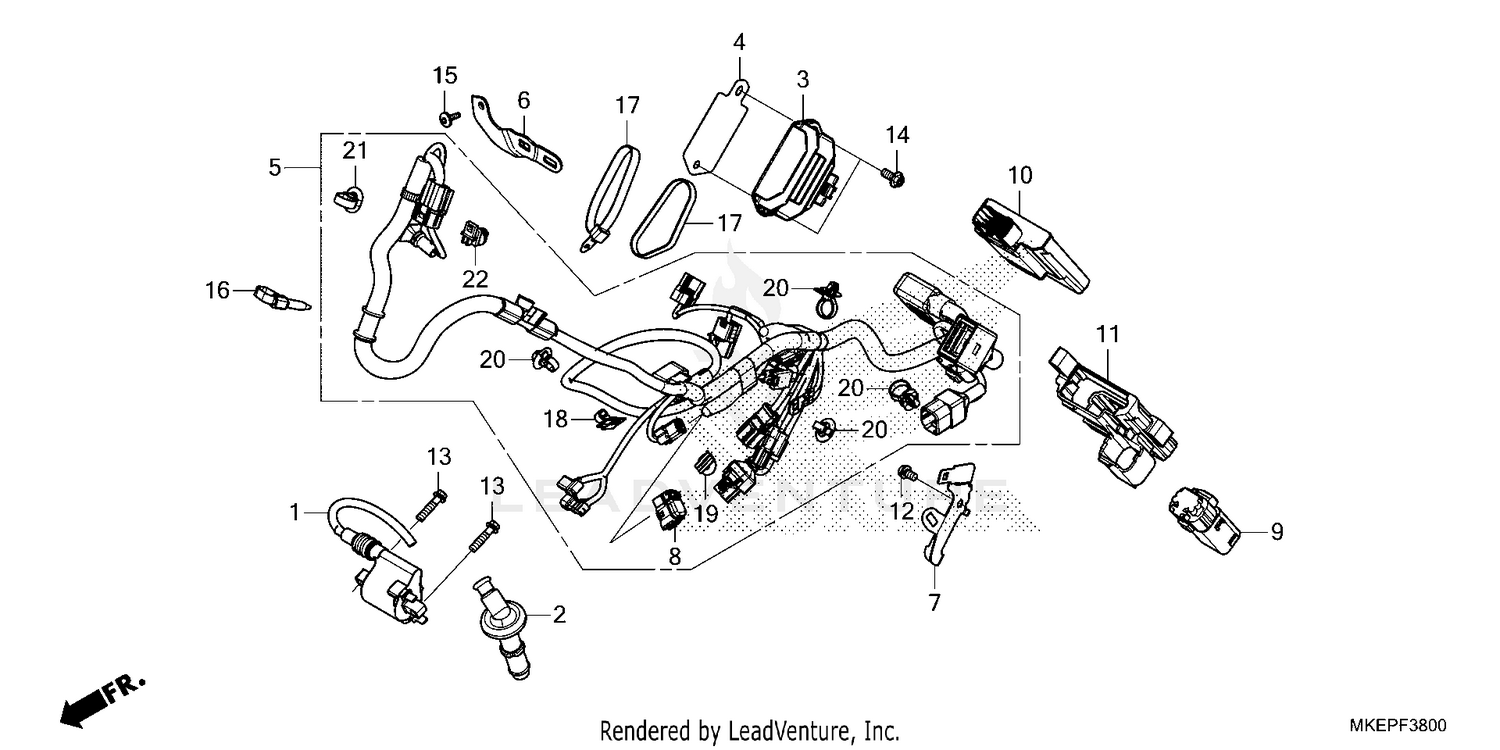

| Ref | Part Number | Description |
|---|
| 1 |
30500-MKE-A01 |
COIL ASSY., IGNITION Price: $83.58 |
| 2 |
30700-MKE-A01 |
CAP ASSY., NOISE SUPPRESSOR Price: $64.27 |
| 3 |
31600-KZL-931 |
RECTIFIER ASSY., REGULATE Price: $213.80 |
| 4 |
31610-MKE-AF0 |
BACK PLATE, REGULATOR Price: $12.71 |
| 5 |
32100-MKE-AF0 |
WIRE HARNESS Price: $492.93 |
| 6 |
32110-MKE-AF0 |
STAY, FR. CONNECTOR Price: $10.76 |
| 7 |
32125-MKE-AF0 |
STAY, HARNESS (L) Price: $8.78 |
| 8 |
32606-K44-V01 |
CAP, DUMMY (WPC 4P 090 M) (RED) Price: $8.11 |
| 9 |
38580-MKE-A61 |
RELAY (2P) (WPC) Price: $52.16 |
| 10 |
38770-MKE-B01 |
UNIT COMP Price: $664.47 |
| 11 |
38771-MKE-AF0 |
SUSPENSION, PGM-FI UNIT Price: $24.20 |
| 12 |
90020-GHB-610 |
BOLT, FLANGE (6X10) Price: $2.42 |
| 13 |
90020-GHB-670 |
BOLT, FLANGE (6X22) Price: $2.65 |
| 14 |
90025-GHB-630 |
BOLT, FLANGE (6X14) Price: $2.56 |
| 15 |
90106-KSE-000 |
SCREW, PAN (6X12) Price: $2.18 |
| 16 |
90650-KV6-003 |
BAND, WIRE (Honda Code 2687788) Price: $3.91 |
| 17 |
90679-SG9-E01 |
BAND, SUCTION HOSE (BLACK) (Honda Code 3522752) Price: $4.68 |
| 18 |
91531-SR3-003 |
HOLDER, CONNECTOR (128.6MM) (NATURAL) Price: $6.22 |
| 19 |
91533-S04-003 |
CLIP, CONNECTOR (NATURAL) Price: $4.08 |
| 20 |
91540-S7S-003 |
CLIP, HARNESS BAND (157.7MM) (BLACK) Price: $6.08 |
| 21 |
91542-SWY-003 |
CLIP, HARNESS BAND (158.9MM) (BLACK) Price: $0.60 |
