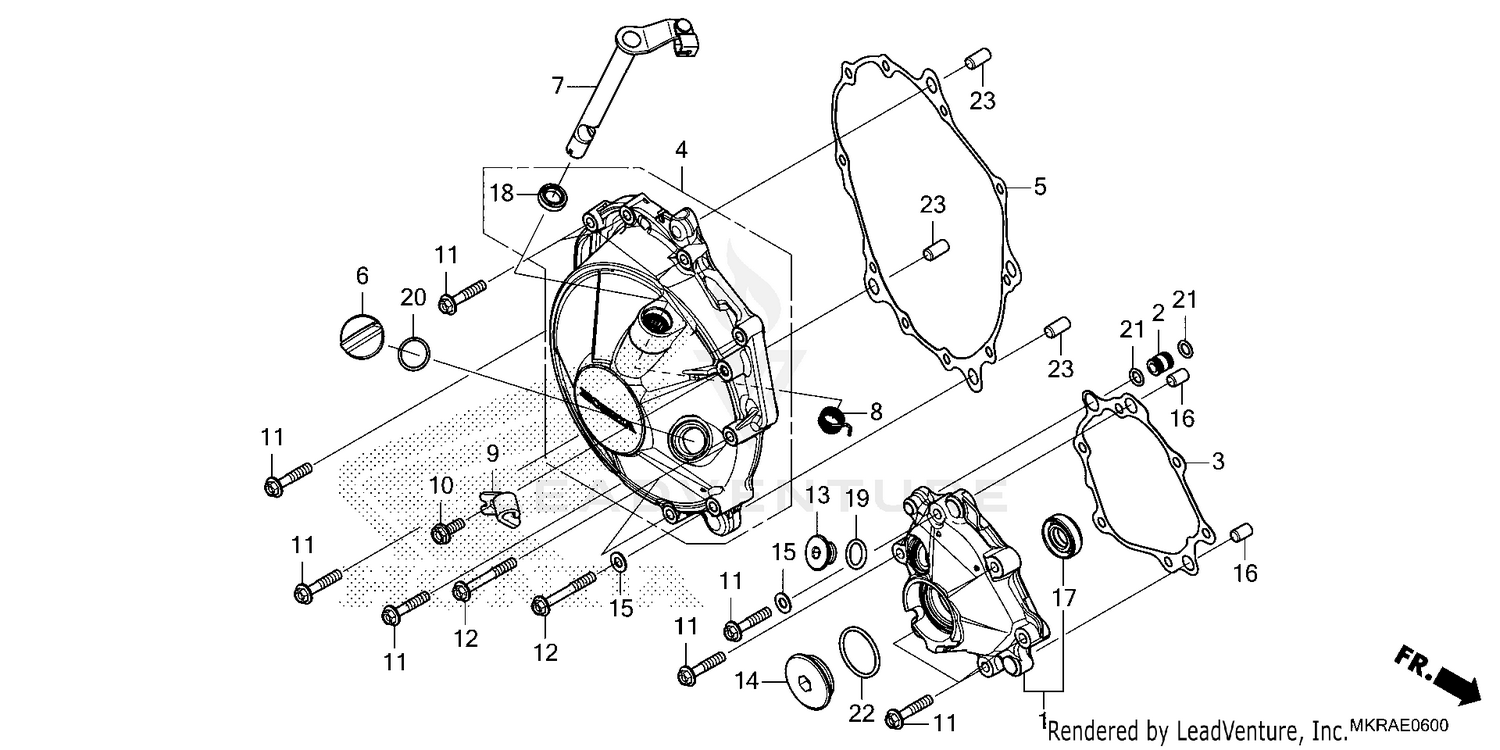

| Ref | Part Number | Description |
|---|
| 1 |
11310-MKR-D10 |
COVER, R. CRANKCASE Price: $292.06 |
| 2 |
11313-MKR-D10 |
COLLAR, R. COVER Price: $7.64 |
| 3 |
11315-MKR-D11 |
GASKET, R. CRANK COVER Price: $9.93 |
| 4 |
11330-MKR-D10 |
COVER, CLUTCH Price: $375.35 |
| 5 |
11335-MKR-D11 |
GASKET, CLUTCH COVER Price: $18.05 |
| 6 |
15611-KA4-710 |
CAP, OIL FILLER Price: $17.45 |
| 7 |
22810-MKR-D10 |
LEVER, CLUTCH Price: $64.55 |
| 8 |
22815-MFL-000 |
SPRING, CLUTCH LEVER Price: $3.45 |
| 9 |
22821-MKR-DH0 |
RECEIVER Price: $6.22 |
| 10 |
90026-GHB-640 |
BOLT, FLANGE (6X16) Price: $2.45 |
| 11 |
90027-GHB-700 |
BOLT, FLANGE (6X30) Price: $2.64 |
| 12 |
90027-GHB-750 |
BOLT, FLANGE (6X45) Price: $3.24 |
| 13 |
90084-MKF-D40 |
CAP (14MM) Price: $14.67 |
| 14 |
90087-MKF-D40 |
CAP (30MM) Price: $16.91 |
| 15 |
90488-425-000 |
WASHER, SEALING (6MM) Price: $2.60 |
| 16 |
90701-MV9-670 |
PIN, DOWEL (10X16) (Honda Code 3906971) Price: $5.40 |
| 17 |
91202-MKR-D11 |
OIL SEAL (14X28X7) (ARAI) Price: $8.35 |
| 18 |
91204-KK0-003 |
OIL SEAL (12X18X5) (ARAI) Price: $6.35 |
| 19 |
91303-377-000 |
O-RING (13.8X2.5) Price: $4.29 |
| 20 |
91307-KF0-003 |
O-RING (18X3) (ARAI) Price: $3.35 |
| 21 |
91311-PA9-004 |
O-RING (7.7X1.9) (NOK) Price: $3.90 |
| 22 |
91356-425-005 |
O-RING (29.7X2.4) (NOK) Price: $3.51 |
