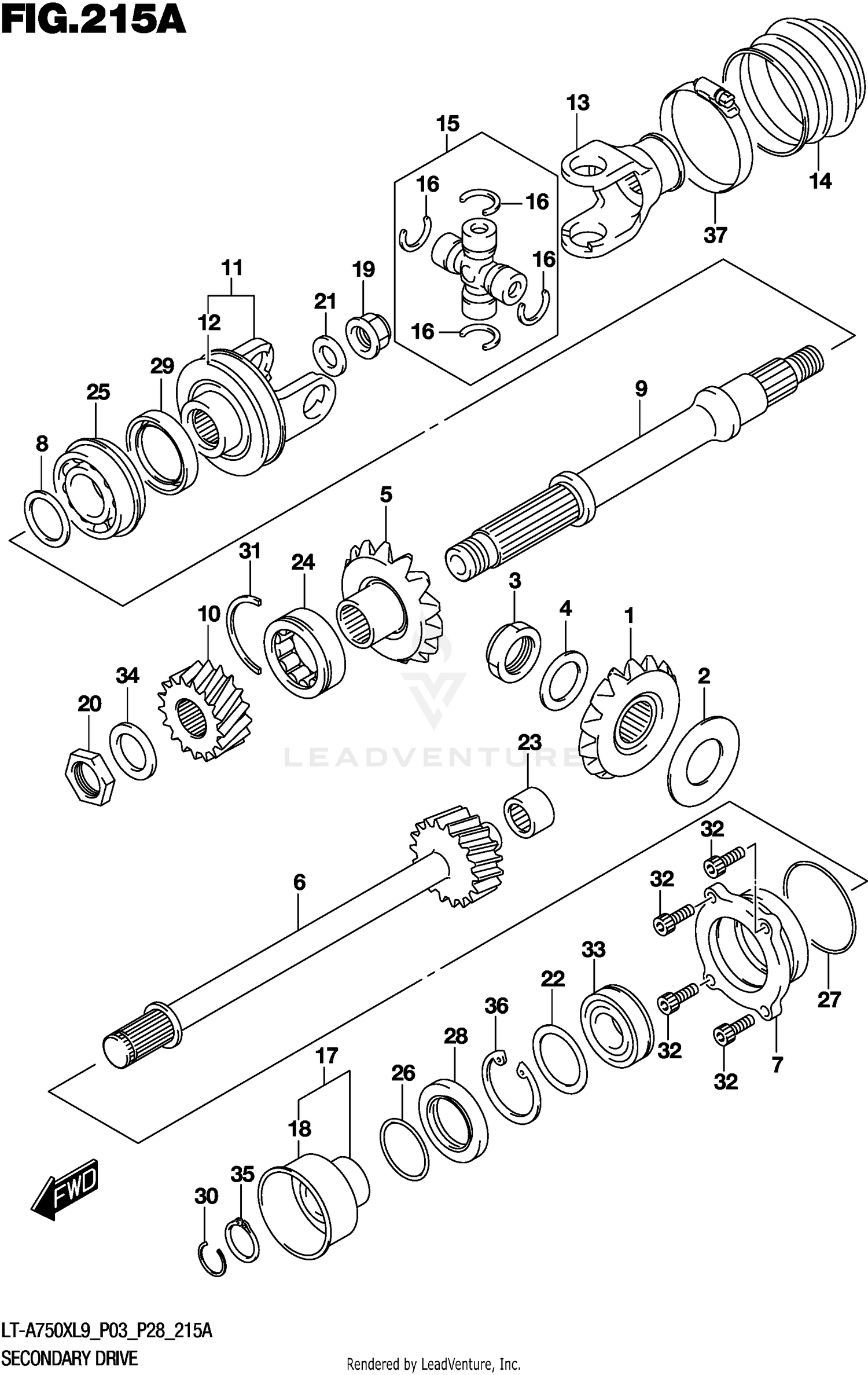

| Ref | Part Number | Description |
|---|
| 1 |
24911-31G00 |
GEAR,SEC DRIVE BEVEL (NT:15) Price: $254.04 |
| 3 |
09140-20012 |
NUT Price: $4.54 |
| 4 |
09181-20223 |
SHIM (20X32X1) Price: $3.47 |
| 5 |
24921-31G10 |
GEAR,SEC DRIVEN BEVEL (NT:17) Price: $265.58 |
| 6 |
24961-31G40 |
SHAFT,SEC DRIVEN OUTPUT FR (N Price: $308.79 |
| 7 |
24965-31G00 |
HOUSING,FR OUTPUT SHAFT BRG Price: $49.02 |
| 9 |
24971-31G10 |
SHAFT,SEC DRIVEN OUTPUT RR Price: $191.89 |
| 10 |
24972-31G20 |
GEAR,SEC DRIVEN OUTPUT SHAFT Price: $114.98 |
| 11 |
27130-31G10 |
YOKE,RR DRIVE OUTPUT Price: $169.96 |
| 13 |
27141-34K00 |
YOKE,PROP SHAFT JOINT RR Price: $90.86 |
| 14 |
27153-31G01 |
BOOT,REAR OUTPUT JOINT This part replaces 27153-31G00. Price: $18.85 |
| 15 |
27200-73814 |
JOINT SET,UNIVERSAL RR This part replaces 27200-73813. Price: $62.57 |
| 17 |
27590-31G00 |
COLLAR,FRONT DRIVE OUTPUT Price: $67.32 |
| 19 |
09159-16003 |
NUT Price: $4.22 |
| 20 |
09159-22005 |
NUT Price: $29.15 |
| 21 |
09160-16026 |
WASHER (16X30X3) Price: $5.26 |
| 22 |
09181-40195 |
SHIM (40X52X1) Price: $7.05 |
| 23 |
09263-25068 |
BEARING (25X37X17) Price: $56.46 |
| 24 |
09263-30050 |
BEARING (30X50X17) Price: $59.93 |
| 25 |
09267-25014 |
BEARING (25X52X20.6) Price: $130.73 |
| 26 |
09280-25005 |
O RING (D:1.9,ID:24.5) Price: $2.45 |
| 27 |
09280-57002 |
O-RING (D:3.5,ID:65.2) Price: $2.94 |
| 28 |
09283-34008 |
OIL SEAL (34X52X9) Price: $25.24 |
| 29 |
09283-34008 |
OIL SEAL (34X52X9) Price: $25.24 |
| 30 |
09381-21002 |
RING,SNAP Price: $1.79 |
| 31 |
09390-50002 |
C RING Price: $3.20 |
| 32 |
07130-0620A |
BOLT Price: $3.02 |
| 33 |
09262-25003 |
BEARING (25X52X15) Price: $30.23 |
| 34 |
08211-22365 |
WASHER Price: $6.28 |
| 35 |
08331-31259 |
CIRCLIP Price: $2.62 |
| 36 |
08331-41529 |
CIRCLIP Price: $4.68 |
