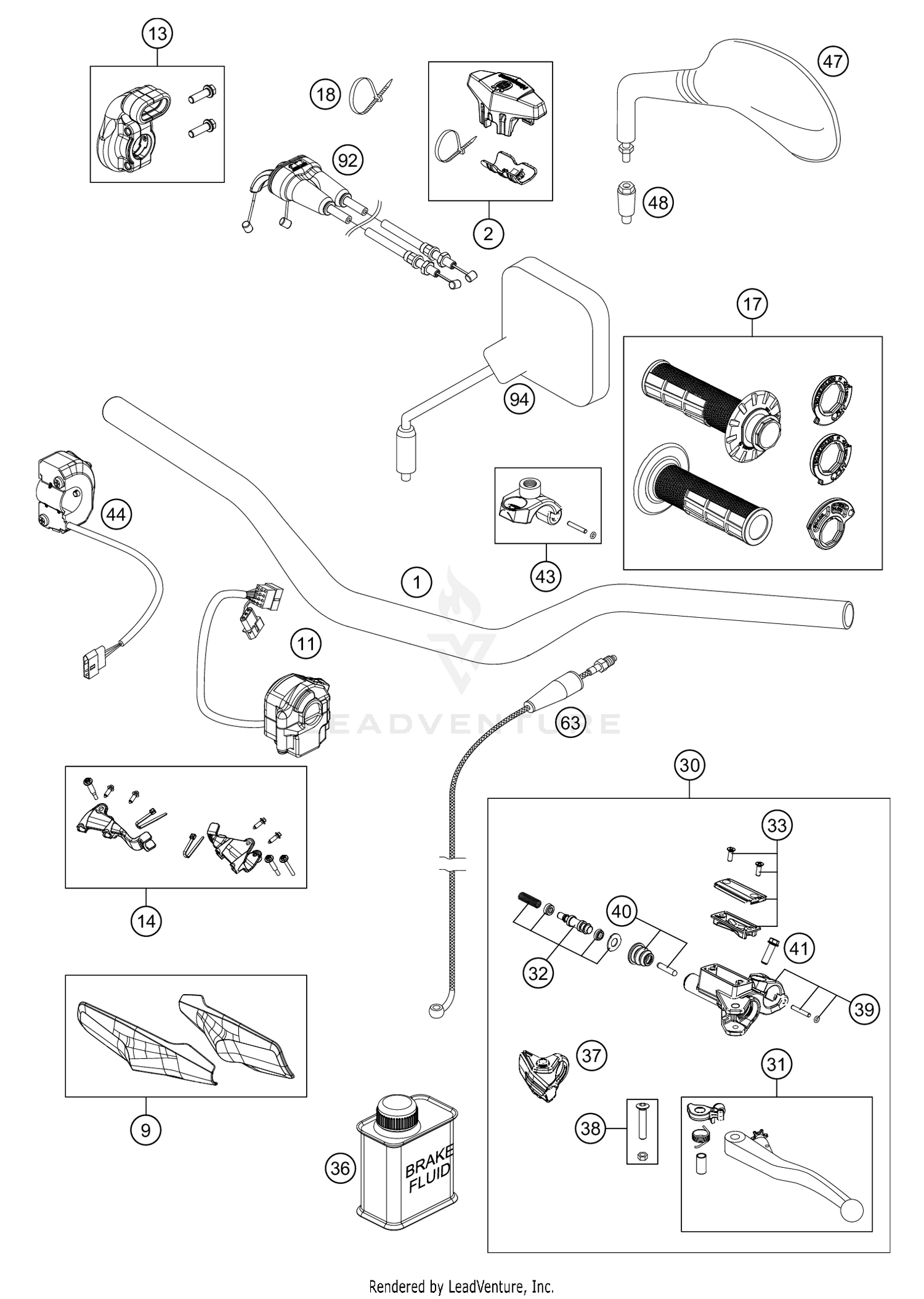

HANDLEBAR, CONTROLS

HANDLEBAR, CONTROLS

Parts (22)

RefPart NumberDescription
1 2650200100030 Handle bar D=28mm Price: $155.97
2 80302602044 BAR PAD CPL. Price: $29.14
9 25102082044AB Handguard cmpl. Price: $27.19
11 76511070100 Handlebar switch left Price: $129.46
13 79002010125 Throttle control casing cpl. This part replaces 79002010025. Price: $34.31
14 25102084044 Mounting kit handguard ri+le Price: $44.54
17 79002021200 Grip set This part replaces 79002021100. Price: $36.99
30 25002130044 MASTER CYLINDER DOT CPL. 9,5MM Price: $506.98
31 50302031300 CLUTCH LEVER CPL. 2009 Price: $53.12
32 25002132000 REP. KIT PISTON DOT 9,5MM Price: $150.58
33 25002033000 COVER HYDR. CLUTCH DOT CPL. Price: $39.15
36 00062030000 BRAKE FLUID DOT5.1 0,25L Price: $13.99
37 76502037000 PROTECT.CAP FOR LEVER PERCH 13 Price: $43.22
38 50302038200 LEVER SCREW SHORT CPL. 09 Price: $26.94
39 25002044000 CLAMP CPL. SEND BLASTED Price: $44.65
40 76502046000 PUSH ROD CPL. 13 Price: $37.39
41 0025060206 HH collar screw M6x20 TX30 Price: $3.99
43 50302044000 CLAMP FOR MIRROR CPL. 09 Price: $58.07
44 79711074000 Start / Kill-Switch right Price: $167.19
63 25032163000 Clutchpipe L=995mm Price: $174.78
92 79102091000 Throttle cable wire Price: $98.00
94 58012040000 REAR MIRROR L/S Price: $42.56
