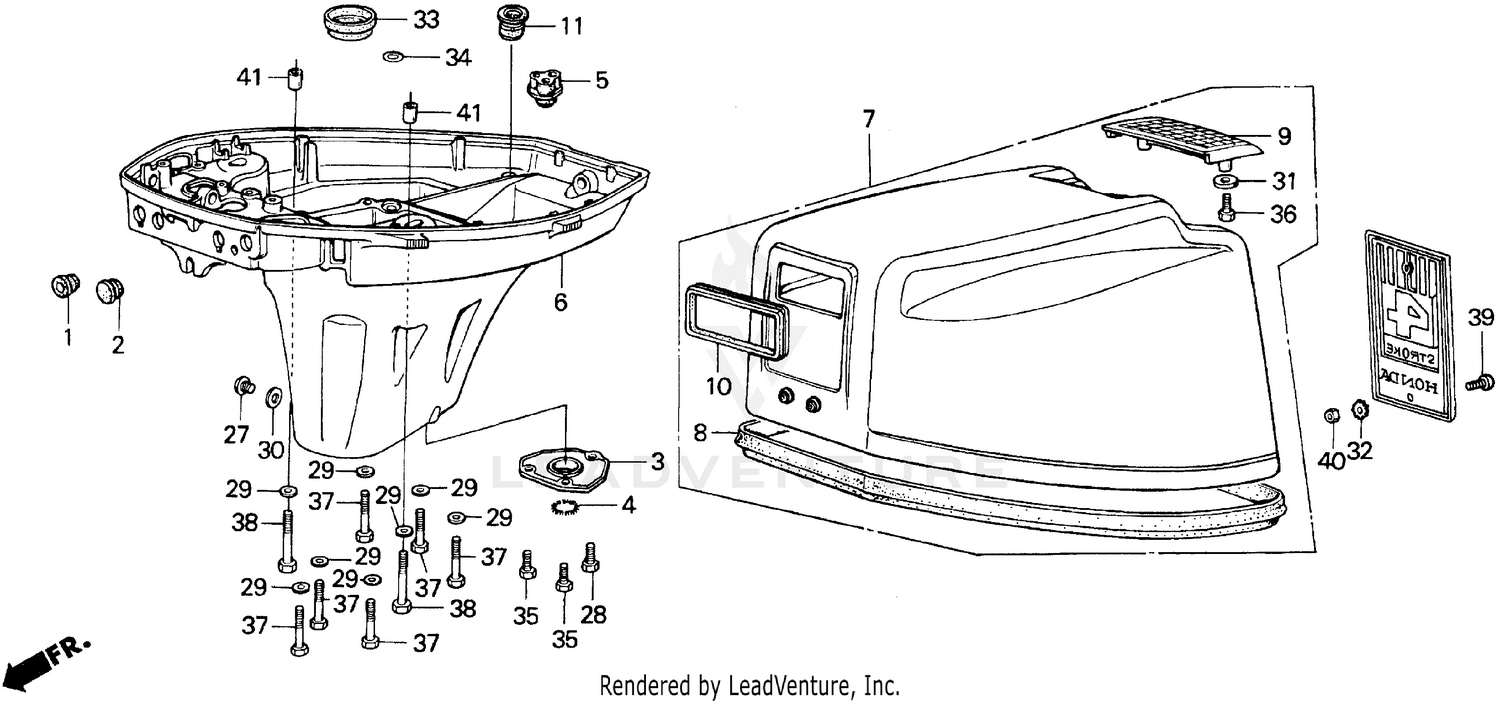

| Ref | Part Number | Description |
|---|
| 1 |
17914-881-300 |
GROMMET A, WIRE Price: $4.00 |
| 2 |
17918-881-000 |
GROMMET C, OIL CASE Price: $3.12 |
| 3 |
18221-881-000 |
PLATE, EX. Price: $17.96 |
| 4 |
18222-881-000 |
BAND, EX. SEAL Price: $7.12 |
| 5 |
19262-921-000 |
MANIFOLD, TUBE Price: $9.38 |
| 6 |
40101-881-040ZA |
CASE, OIL *B9* (ATLANTIS BLUE) Price: $1,264.80 |
| 7 |
63100-881-010WF |
SEE PART DETAILS - PRI; COVER, ENGINE *NH24* (CERAMIC WHITE) Price: Call Us |
| 8 |
63102-881-300 |
SEAL, ENGINE COVER (NOT AVAILABLE) Price: $27.58 |
| 9 |
63105-881-300WF |
HANDLE, TILT *NH24* (CERAMIC WHITE) (NOT AVAILABLE) Price: Call Us |
| 10 |
63109-881-310 |
SEE PART DETAILS - PRI; SEAL, RECOIL Price: $7.20 |
| 11 |
82873-881-010 |
GROMMET, WATER CHECK Price: $5.26 |
| 27 |
90105-921-000 |
BOLT, OIL CHECK Price: $7.78 |
| 28 |
90106-881-000 |
BOLT, HEX. (6X12) Price: $2.92 |
| 29 |
90504-921-010 |
WASHER, PLAIN (6MM) Use from Frame SN 4800713. Price: $1.74 |
| 30 |
90507-921-000 |
WASHER, NYLON (8MM) Price: $1.22 |
| 31 |
90512-921-010 |
SEE PART DETAILS - PRI; WASHER (6MM) Price: $1.46 |
| 32 |
90519-921-000 |
WASHER, LOCK (4MM) (NOT AVAILABLE) Price: Call Us |
| 33 |
91255-881-004 |
SEE PART DETAILS - PRI; SEAL, COUPLING (25X40X22) Price: $18.78 |
| 34 |
91305-PE2-003 |
O-RING (9.8X1.9) Price: $3.32 |
| 35 |
92101-06012-4J |
SEE PART DETAILS - PRI; BOLT, HEX. (6X12) Price: $2.58 |
| 36 |
92101-06016-4J |
SEE PART DETAILS - PRI; BOLT, HEX. (6X16) Price: $1.88 |
| 37 |
92000-06032-4J |
SEE PART DETAILS - PRI; BOLT, HEX. (6X32) (NOT AVAILABLE) Price: $1.40 |
| 38 |
92101-06040-4J |
SEE PART DETAILS - PRI; BOLT, HEX. (6X40) This part replaces 92000-06040-4J. Price: $1.91 |
| 39 |
93500-04010-0G |
SEE PART DETAILS - PRI; SCREW, PAN (4X10) Price: $0.80 |
| 40 |
94001-04390-0S |
SEE PART DETAILS - PRI; NUT, HEX. (4MM) (Honda Code 0499707). Price: $1.10 |
