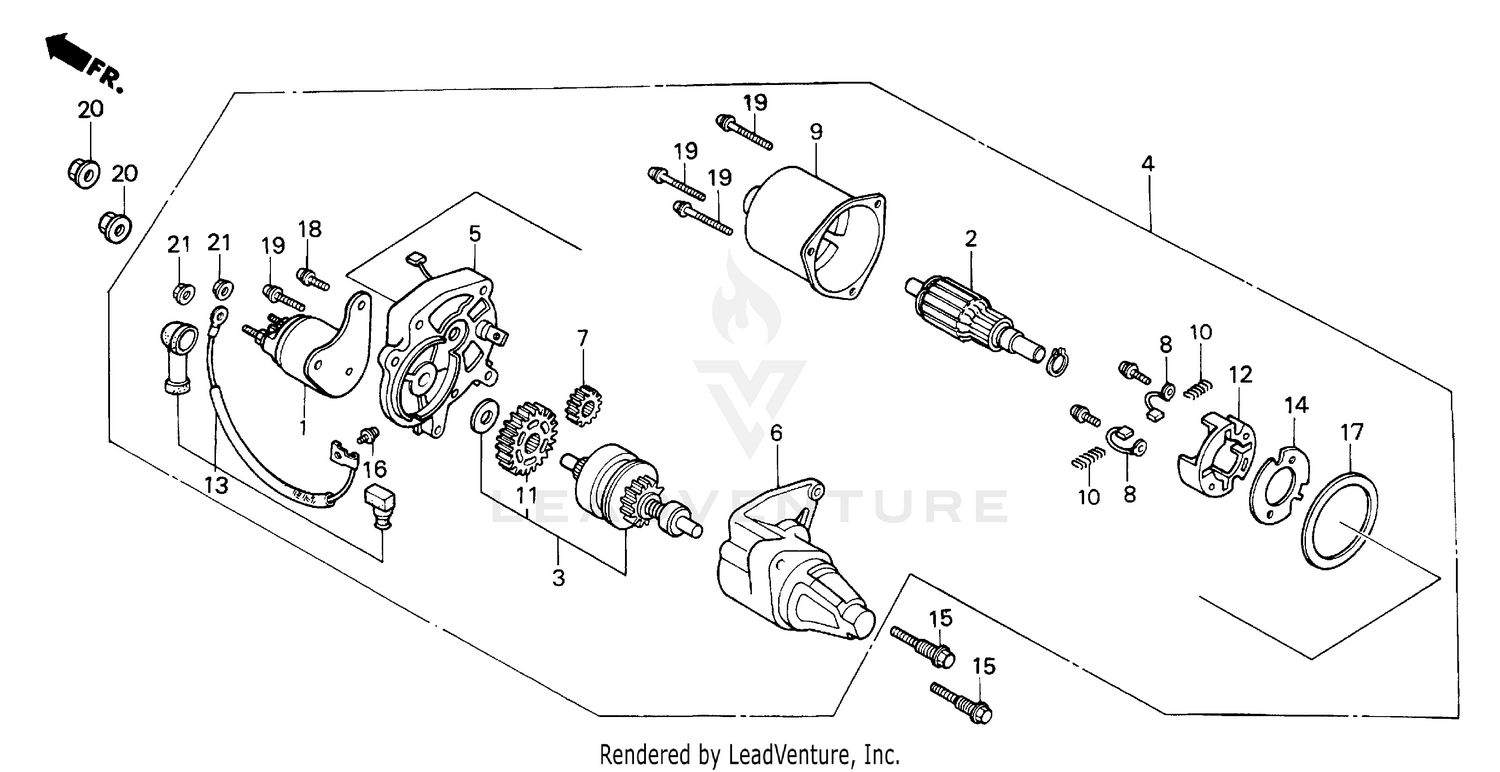

| Ref | Part Number | Description |
|---|
| 1 |
31204-ZA0-003 |
SEE PART DETAILS - PRI; CONTACTOR ASSY. (Honda Code 2108298). Price: $145.16 |
| 2 |
31206-ZE3-003 |
ARMATURE (Honda Code 2108306). Price: $92.29 |
| 3 |
31207-ZE3-003 |
SEE PART DETAILS - PRI; CLUTCH, OVERRUNNING (Honda Code 2108314). Price: $343.28 |
| 4 |
31210-ZE3-792 |
MOTOR ASSY., STARTER Price: $349.28 |
| 5 |
31211-ZE2-003 |
BRACKET, CENTER (Honda Code 2026433). Price: $110.96 |
| 6 |
31212-ZE3-790 |
BRACKET, FR. Price: $128.64 |
| 7 |
31213-ZE2-003 |
GEAR, DRIVE PINION (Honda Code 2026458). Price: $56.86 |
| 8 |
31215-ZE2-003 |
BRUSH (Honda Code 2026474). Price: $12.66 |
| 9 |
31218-ZE3-003 |
YOKE (Honda Code 2108348). Price: $49.04 |
| 10 |
31219-ZE2-003 |
SPRING, BRUSH RETURN (Honda Code 2026508). Price: $4.30 |
| 11 |
31222-ZE3-791 |
SEE PART DETAILS - PRI; GEAR, REDUCTION (Honda Code 2418358). Price: $36.54 |
| 12 |
31231-ZE2-003 |
HOLDER, BRUSH (Honda Code 2026516). Price: $15.38 |
| 13 |
31232-ZE2-013 |
WIRE, WATER COVER (Honda Code 2158335). Price: $5.90 |
| 14 |
31233-ZE2-003 |
INSULATOR (Honda Code 2026524). Price: $13.48 |
| 15 |
90106-ZF6-L00 |
BOLT, STARTER MOTOR Price: $6.40 |
| 16 |
90110-ZE2-003 |
SCREW-WASHER (4X6) (Honda Code 2027100). Price: $3.00 |
| 17 |
91601-ZE2-003 |
GASKET (Honda Code 2027266). Price: $7.82 |
| 19 |
93892-05032-08 |
SEE PART DETAILS - PRI; SCREW-WASHER (5X3) (Honda Code 1171891). Price: $1.86 |
| 20 |
94050-08080 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447). Price: $1.18 |
