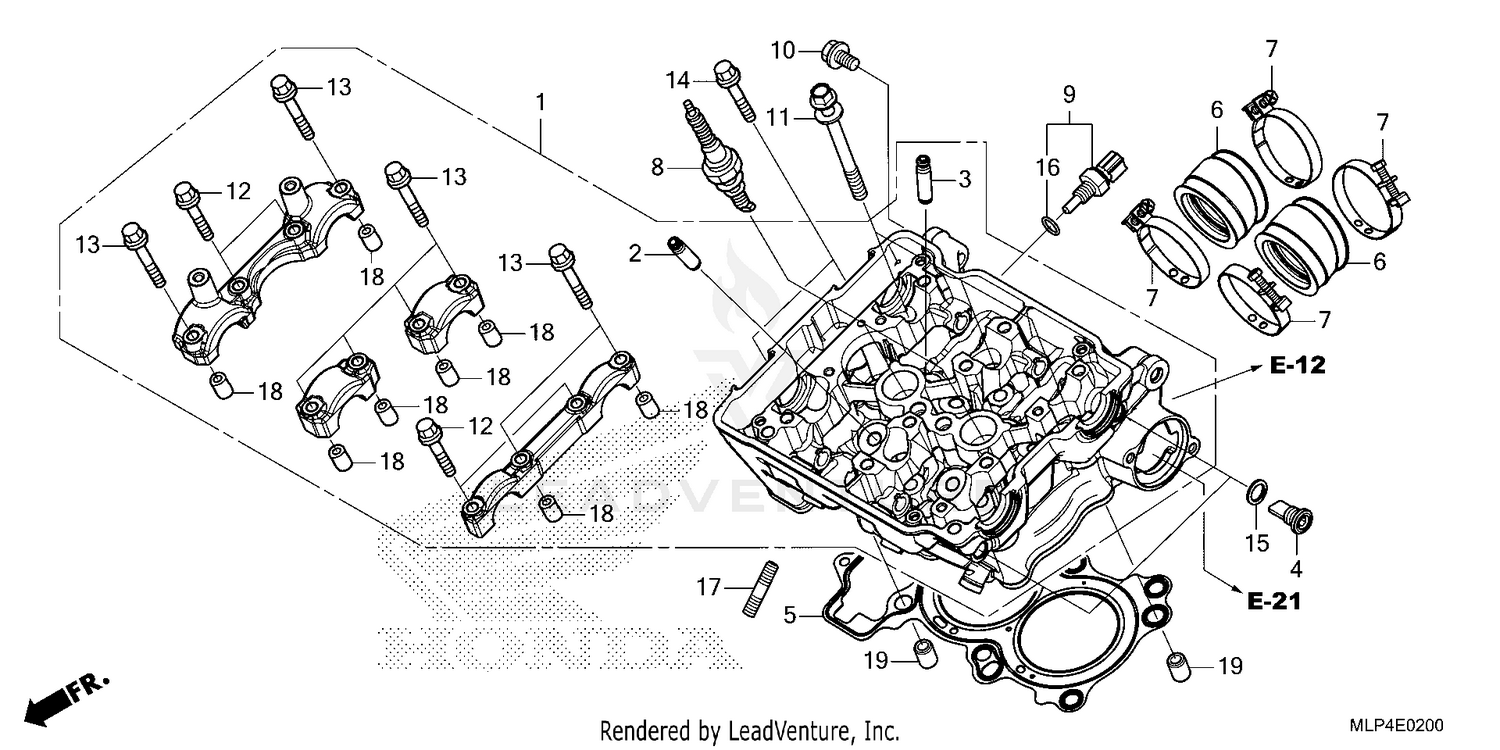

| Ref | Part Number | Description |
|---|
| 1 |
12010-MKG-A31 |
CYLINDER HEAD ASSY. Price: $559.45 |
| 2 |
12204-KYJ-305 |
GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE) Price: $23.31 |
| 3 |
12205-KYJ-305 |
GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE) Price: $23.31 |
| 4 |
12207-MGZ-J00 |
BOLT, SEALING (12MM) Price: $9.62 |
| 5 |
12251-MGZ-J01 |
GASKET, CYLINDER HEAD Price: $39.69 |
| 6 |
16211-MLH-A00 |
INSULATOR Price: $14.16 |
| 7 |
16217-MLH-A00 |
BAND, INSULATOR Price: $5.96 |
| 8 |
31916-KRM-841 |
SPARK PLUG (CPR8EA-9) (NGK) Price: $7.10 |
| 9 |
37870-KZR-601 |
SENSOR ASSY., WATER TEMPERATURE Price: $10.75 |
| 10 |
90001-MKG-A00 |
BOLT, SPECIAL (10X16) Price: $1.07 |
| 11 |
90007-MGZ-J00 |
BOLT-WASHER (9X100) Price: $5.56 |
| 12 |
90017-KYJ-900 |
BOLT, FLANGE (6X32) Price: $0.87 |
| 13 |
90019-KYJ-900 |
BOLT, FLANGE (6X39.5) Price: $0.95 |
| 14 |
90023-GHB-720 |
BOLT, FLANGE (6X35) Price: $2.78 |
| 15 |
90418-KYJ-900 |
WASHER (12.2X17X1.5) Price: $1.07 |
| 16 |
91307-KZR-600 |
O-RING (9.5X1.9) Price: $1.65 |
| 17 |
92900-08022-3E |
BOLT, STUD (8X22) Price: $2.64 |
| 18 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
