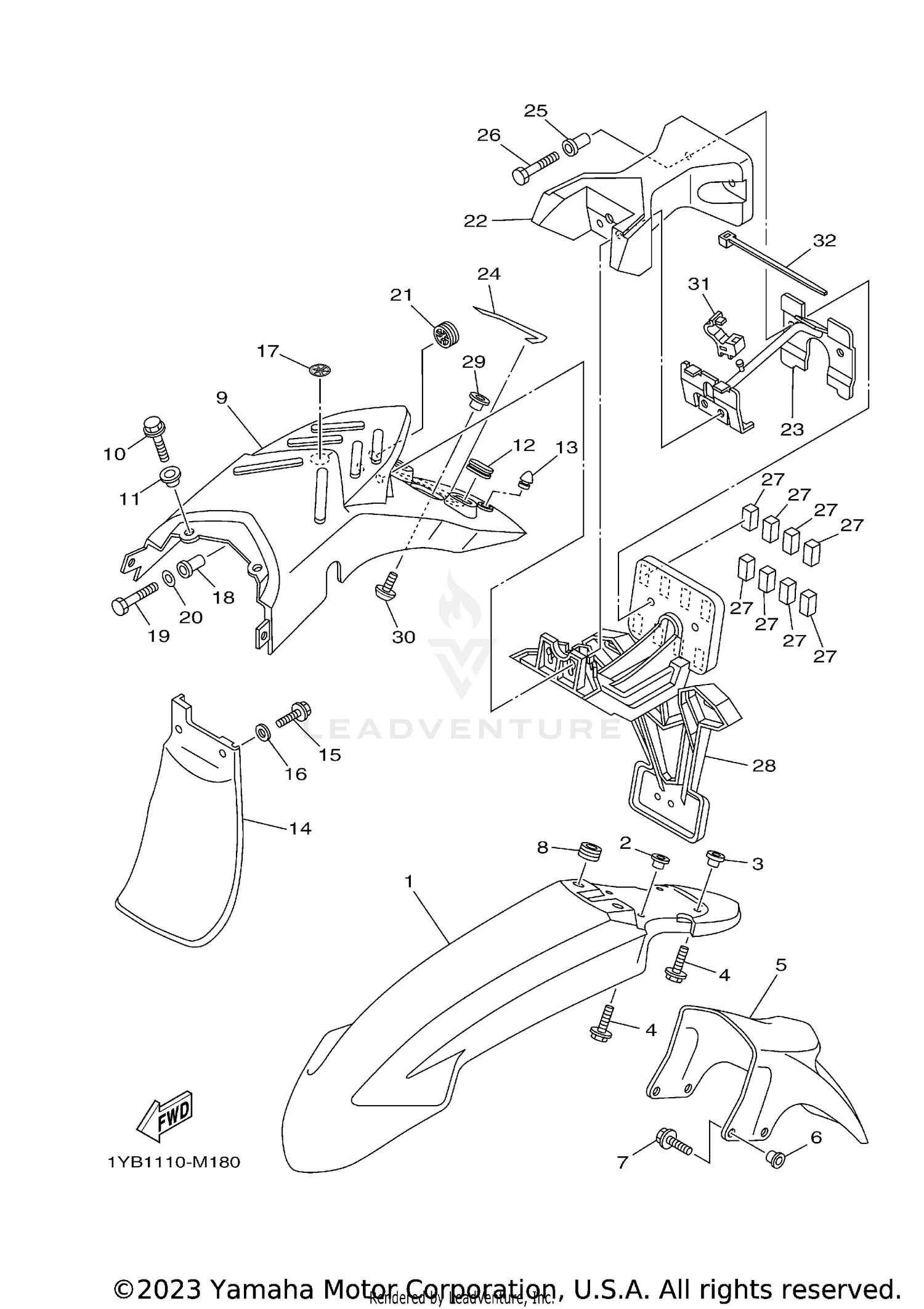

| Ref | Part Number | Description |
|---|
| 1 |
3C5-21511-70-00 |
FENDER, FRONT Price: $34.99 |
| 2 |
90387-06681-00 |
COLLAR Price: $10.49 |
| 3 |
90387-06117-00 |
COLLAR Price: $9.49 |
| 4 |
90119-06147-00 |
BOLT, WITH WASHER Price: $1.20 |
| 5 |
3C5-21556-00-00 |
FENDER, FRONT 2 Price: $23.99 |
| 6 |
90387-06681-00 |
COLLAR Price: $10.49 |
| 7 |
90119-06147-00 |
BOLT, WITH WASHER Price: $1.20 |
| 8 |
90480-13014-00 |
GROMMET This part replaces 90480-13398-00. Price: $9.49 |
| 9 |
3C5-21611-00-00 |
FENDER, REAR Price: $49.99 |
| 10 |
95022-06012-00 |
BOLT, FLANGE Price: $3.55 |
| 11 |
90387-06107-00 |
COLLAR Price: $9.49 |
| 12 |
3C5-2163A-00-00 |
COVER, REAR FENDER 1 Price: $7.99 |
| 13 |
90338-07018-00 |
PLUG Price: $8.49 |
| 14 |
5XT-21642-02-00 |
GUARD, FLAP Price: $43.99 |
| 15 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95802-06016-00. Price: $1.95 |
| 16 |
90201-06055-00 |
WASHER, PLATE Price: $3.20 |
| 17 |
3C5-2411B-00-00 |
EMBLEM Price: $7.49 |
| 18 |
90387-0602Y-00 |
COLLAR Price: $9.49 |
| 19 |
97017-06030-00 |
BOLT,HEXAGON This part replaces 97002-06030-00. Price: $3.90 |
| 20 |
92990-06600-00 |
WASHER, PLATE This part replaces 92902-06600-00. Price: $2.85 |
| 21 |
4XV-83513-00-00 |
DAMPER Price: $8.49 |
| 22 |
3C5-84527-10-00 |
DAMPER Price: $93.99 |
| 23 |
3C5-2161A-00-00 |
BRACKET 3 Price: $147.99 |
| 24 |
3C5-21652-00-00 |
PROTECTOR Price: $14.49 |
| 25 |
90387-06M21-00 |
COLLAR Price: $7.90 |
| 26 |
97017-06030-00 |
BOLT,HEXAGON This part replaces 97022-06030-00. Price: $3.90 |
| 27 |
4D9-28415-00-00 |
DAMPER 1 Price: $5.99 |
| 28 |
3C5-84551-00-00 |
BRACKET, LICENSE Price: $149.99 |
| 29 |
3C5-21634-00-00 |
COLLAR, 2 Price: $11.99 |
| 30 |
90105-06170-00 |
BOLT, FLANGE Price: $5.49 |
| 31 |
90464-05188-00 |
CLAMP Price: $5.49 |
