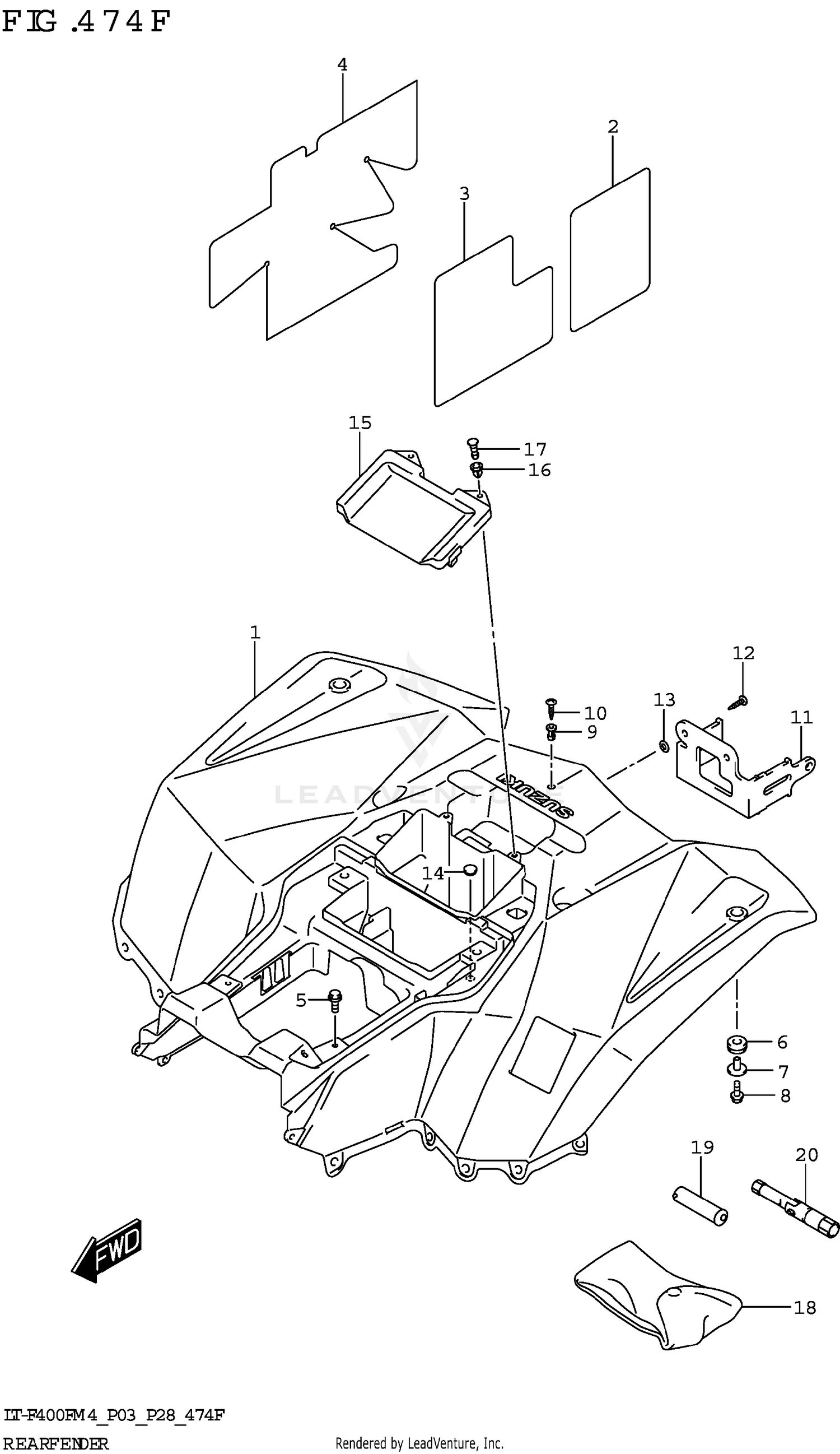

REAR FENDER (P28)
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 63111-27H03-YLG | FENDER,REAR (GREEN) Price: $344.68 |
| 2 | 63122-27H30 | SHIELD,RR FENDER Price: $8.04 |
| 3 | 63123-27H30 | SHIELD,RR FENDER Price: $9.31 |
| 4 | 63124-27H30 | SHIELD,RR FENDER Price: $11.16 |
| 5 | 09116-06006 | BOLT (6X16) Price: $2.27 |
| 6 | 09320-11021 | CUSHION (11.5X32X12.2) Price: $5.09 |
| 7 | 09169-06074 | WASHER (6.5X24X1.6) Price: $10.10 |
| 8 | 01550-0625A | BOLT (6X25) Price: $2.37 |
| 9 | 09159-05019 | NUT (M5) Price: $8.69 |
| 10 | 02142-0520B | SCREW Price: $2.15 |
| 11 | 47413-27H00 | PLATE,CDI UNIT Price: $13.93 |
| 12 | 09229-04020 | RIVET Price: $3.08 |
| 13 | 08322-0104A | WASHER Price: $2.33 |
| 14 | 09250-08018 | CAP (OD:16) Price: $3.61 |
| 15 | 63112-27H01 | COVER,REAR FENDER Price: $63.10 |
| 16 | 09409-08329 | GROMMET Price: $2.88 |
| 17 | 09409-08330 | PLUNGER Price: $2.88 |
| 18 | 09800-21103 | TOOL ASSY Price: $17.61 |
| 19 | 96200-18A02 | GAUGE ASSY,AIR PRESSUR Price: $63.63 |
