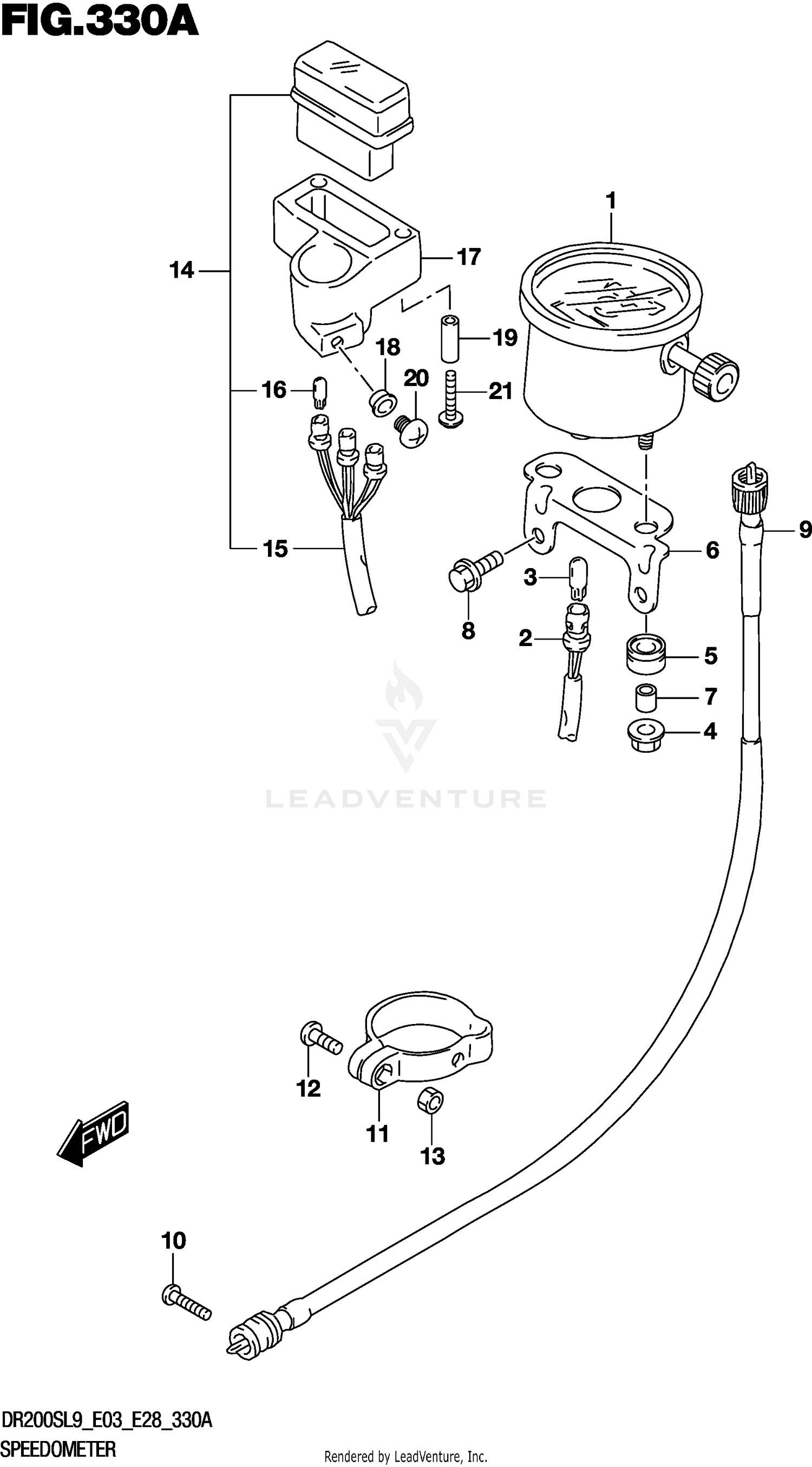

SPEEDOMETER (DR200SL9 E03)
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 34110-49J10 | SPEEDOMETER Price: $420.64 |
| 2 | 34170-49J00 | SOCKET Price: $32.31 |
| 3 | 09471-12108 | BULB (12V1.7W) Price: $4.16 |
| 4 | 09159-05049 | NUT Price: $2.43 |
| 5 | 34955-48G00 | CUSHION Price: $11.70 |
| 6 | 34950-49J00 | BRACKET, SPEEDOMETER Price: $13.61 |
| 7 | 09180-05065 | SPACER (5.4X7X8.5) Price: $2.23 |
| 8 | 01550-0612A | BOLT Price: $2.37 |
| 9 | 34910-44A30 | CABLE ASSY,SPEEDOMETER Price: $50.55 |
| 11 | 34938-01A00 | CLAMP,SPEEDOMETER CABLE Price: $14.10 |
| 13 | 08310-0005A | NUT This part replaces 08310-0005B. Price: $2.22 |
| 14 | 36380-42A00 | BOX ASSY,PILOT LAMP Price: $179.03 |
| 17 | 36382-08D01 | HOLDER,PILOT BOX Price: $19.01 |
| 18 | 09169-05024 | WASHER Price: $2.50 |
| 19 | 09180-04024 | SPACER (4.5X6.5X25) Price: $5.26 |
| 20 | 02142-0510B | SCREW This part replaces 02142-0510A. Price: $2.15 |
