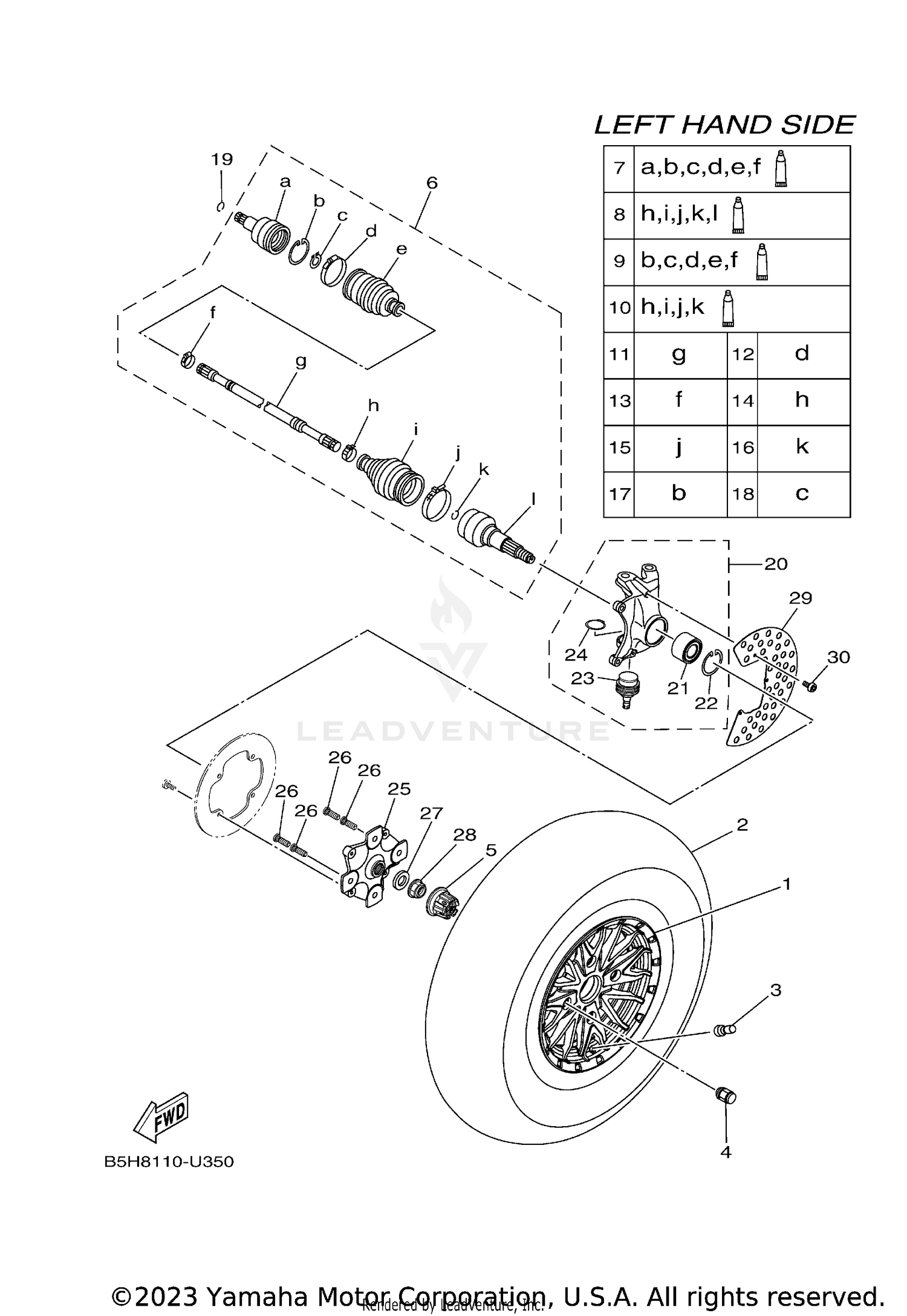

FRONT WHEEL
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B5H-F516D-01-00 | WHEEL, CAST 2 Price: $269.99 |
| 2 | 94109-14819-00 | TIRE This part replaces 94109-14814-00. Price: $394.99 |
| 4 | 90176-12800-00 | NUT, CROWN Price: $3.95 |
| 5 | 2HC-F512A-00-00 | CAP, WHEEL Price: $3.25 |
| 6 | 2HC-2518F-01-00 | DRIVE SHAFT ASSY This part replaces 2HC-2518F-00-00. Price: $249.99 |
| 11 | 2HC-2518E-00-00 | SHAFT Price: $99.99 |
| 12 | 2HC-2511H-00-00 | BOOT BAND(DOUBLE OFFSET JOINT) Price: $10.99 |
| 13 | 2HC-2511G-00-00 | BOOT BAND(DOUBLE OFFSET JOINT) Price: $7.49 |
| 14 | 2HC-2510U-00-00 | BOOT BAND (BALL JOINT) Price: $7.49 |
| 15 | 2HC-2512G-10-00 | BOOT BAND (SMALL) This part replaces 2HC-2512G-00-00. Price: $8.49 |
| 16 | 2HC-2512H-00-00 | CIRCLIP Price: $4.85 |
| 17 | 3B4-25182-00-00 | CIRCLIP Price: $7.49 |
| 18 | 3B4-2512J-00-00 | SNAP RING Price: $9.49 |
| 19 | 93450-22119-00 | CIRCLIP Price: $9.49 |
| 20 | B5H-F3501-00-00 | STEERING KNUCKLE A Price: $234.99 |
| 21 | 93305-00604-00 | BEARING Price: $136.99 |
| 22 | 99009-62500-00 | CIRCLIP Price: $9.49 |
| 23 | 2HC-23579-00-00 | BALL JOINT 2 Price: $104.99 |
| 24 | 93410-42096-00 | CIRCLIP Price: $2.75 |
| 25 | B5H-F5111-02-00 | HUB, FRONT This part replaces B5H-F5111-00-00. Price: $142.99 |
| 26 | 90114-12005-00 | BOLT, SERRATION Price: $3.20 |
| 27 | 90201-25023-00 | WASHER, PLATE Price: $11.49 |
| 28 | 90179-24006-00 | NUT Price: $15.49 |
| 29 | 2HC-F514A-00-00 | RING, WHEEL 1 Price: $9.49 |
