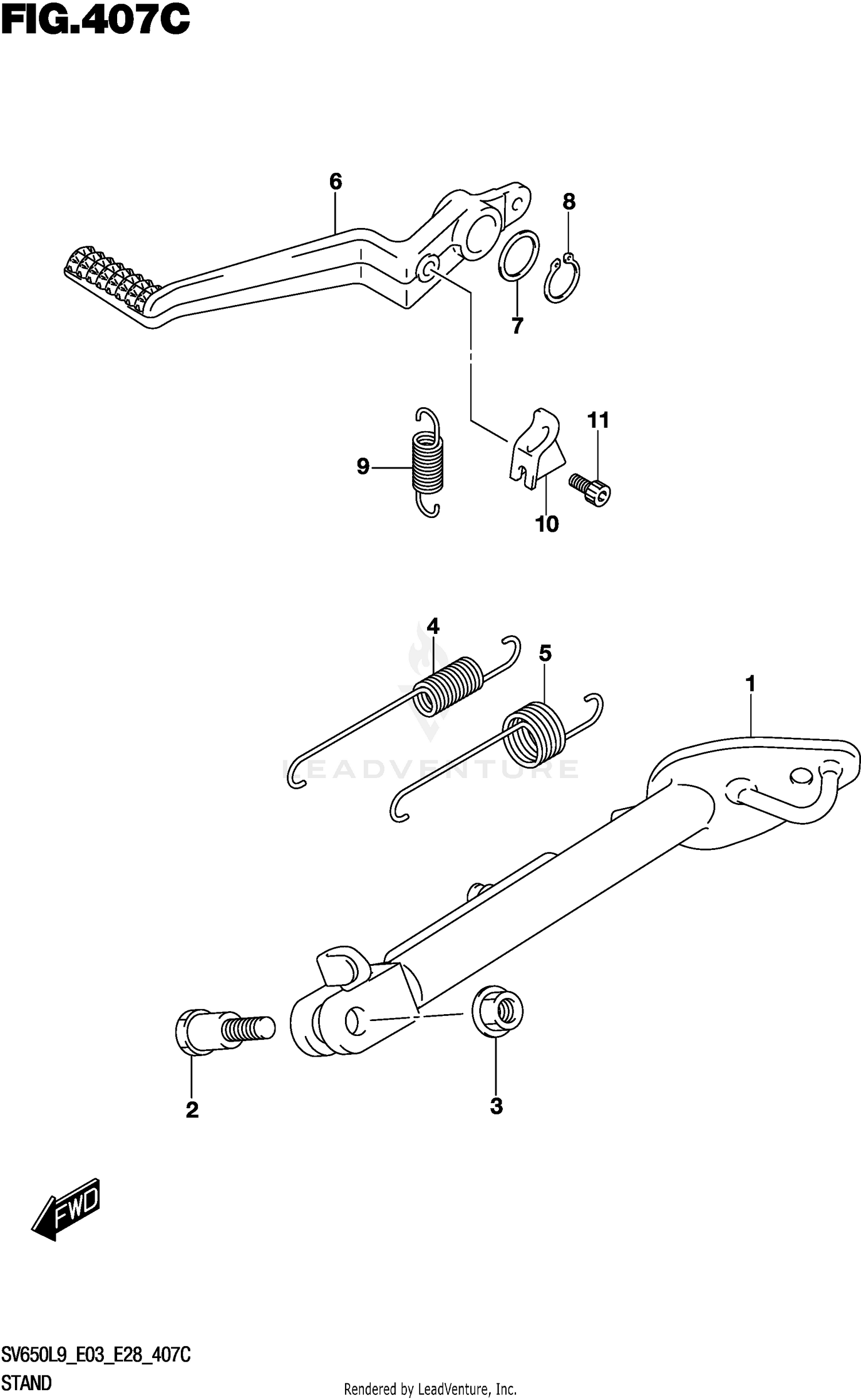

STAND (SV650AL9 E28)
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 42310-18K00 | STAND,PROP Price: $132.95 |
| 2 | 09111-10059 | BOLT (10X21) Price: $8.46 |
| 3 | 08319-3110A | NUT Price: $3.28 |
| 4 | 09443-15046 | SPRING Price: $10.28 |
| 5 | 09443-22017 | SPRING Price: $9.43 |
| 6 | 43111-44G10 | PEDAL,BRAKE Price: $136.60 |
| 7 | 09160-18022 | WASHER (18X24X1.0) Price: $3.41 |
| 8 | 08331-3118A | CIRCLIP Price: $2.25 |
| 9 | 09443-11030 | SPRING Price: $4.50 |
| 10 | 43561-44G00 | BRACKET,RETURN SPRING Price: $13.11 |
