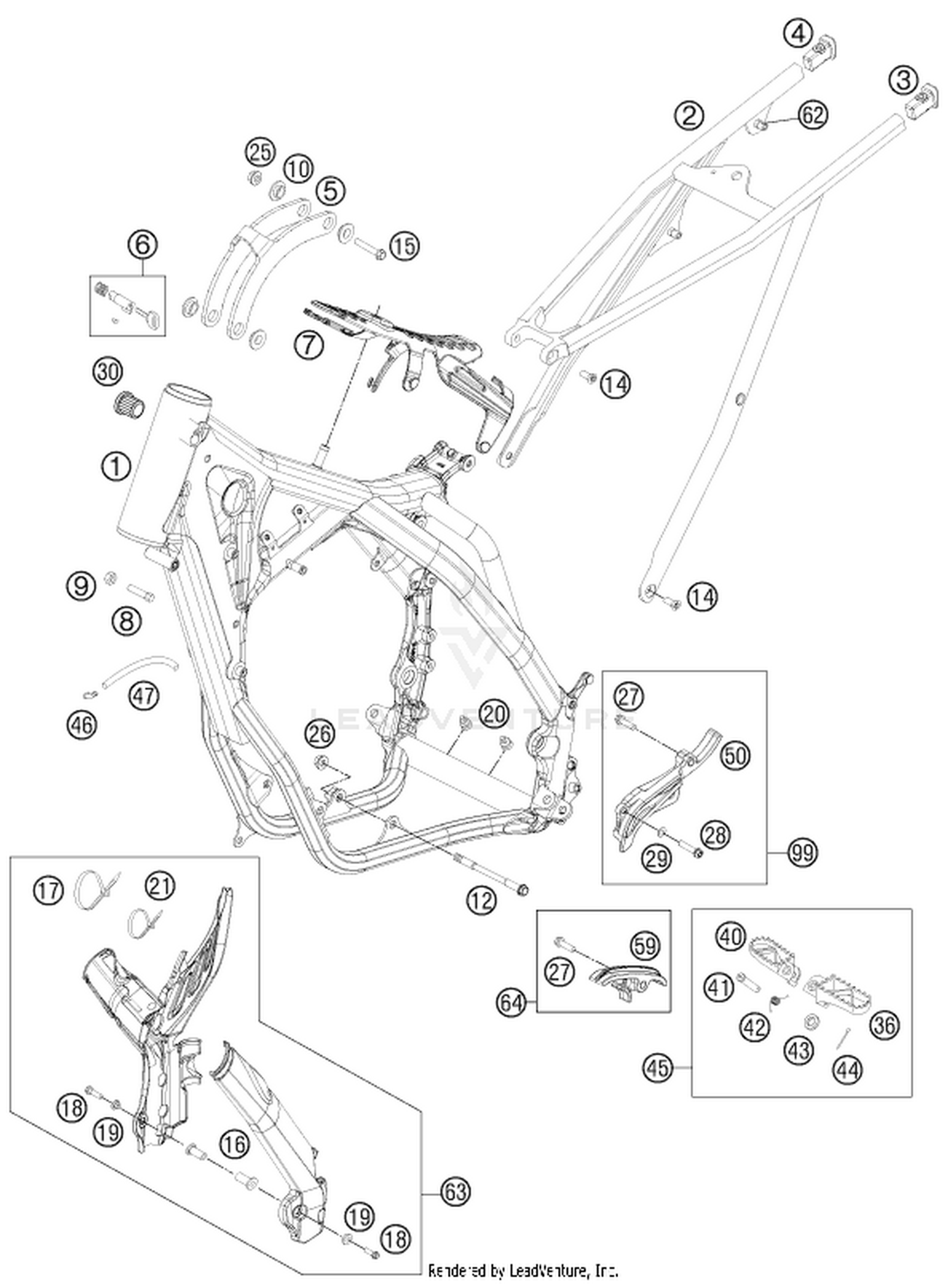

| Ref | Part Number | Description |
|---|
| 1 |
5480350120033 |
FRAME BLACK MATT ''548L1'' Price: Call Us |
| 2 |
77203002000 |
SUB FRAME SX Price: Call Us |
| 3 |
78103002010 |
SUB FRAME APPLICATION LEFT This part replaces 78003002010. Price: Call Us |
| 4 |
78103002020 |
SUB FRAME APPLICATION RIGHT This part replaces 78003002020. Price: Call Us |
| 5 |
54803513100 |
REINFORCING B. 250 EXC 12 Price: Call Us |
| 6 |
78003035100 |
Steering lock This part replaces 78003035000. Price: Call Us |
| 7 |
77207012000 |
TANK REST RUBBER Price: Call Us |
| 8 |
59001037000 |
SPECIAL SCREW M8X26 WS=10 Price: Call Us |
| 9 |
0934080003 |
Hexagon nut DIN934 M8 Price: Call Us |
| 10 |
54803013050 |
BUSHING F.REINFORCING Price: Call Us |
| 14 |
0019080206S |
FLAT HEAD SCREW M. ISA45 M8X20 Price: Call Us |
| 15 |
56530079000S |
HH COLLAR SCREW M8X44 WS13 This part replaces 56530079000. Price: Call Us |
| 16 |
54803092050 |
BLIND PLUG-IN NUT M5 WN 22A 03 Price: Call Us |
| 17 |
44011076305 |
CABLE TIE 300/4,8MM BLACK Price: Call Us |
| 18 |
0738050250 |
COU.SUNK SCR. AH ISO7380 M5X25 Price: Call Us |
| 19 |
54803092060 |
Bush f. frame protection 03 Price: Call Us |
| 20 |
54403135000 |
PLASTIC CAP SFL10 Price: Call Us |
| 21 |
44011076140 |
CABLE TIE 140/2,5MM BLACK Price: Call Us |
| 25 |
54310086200 |
Self locking nut M8 10.9 Price: Call Us |
| 26 |
54310086100 |
SELF LOCKING NUT M10 CU WS=14 Price: Call Us |
| 27 |
0025080306 |
HH collar screw M8x30 Price: Call Us |
| 28 |
0025060306 |
HH collar screw M6x30 TX30 Price: Call Us |
| 29 |
0125060003 |
WASHER DIN0125-A 6,4 Price: Call Us |
| 30 |
42007049000 |
PLASTIC CAP Not Available Price: |
| 36 |
78003040050 |
FOOTREST L/S 08 Price: Call Us |
| 40 |
78003041050 |
FOOTREST R/S 08 Price: Call Us |
| 41 |
54803044000 |
PIN FOR FOOT PED 51.5X9.8 MM Price: Call Us |
| 42 |
54603041000 |
FOOTREST SPRING L/S R/S Price: Call Us |
| 44 |
0094032250 |
PIN DIN 0094-3.2X25 NIRO This part replaces 0094032253. Price: Call Us |
| 45 |
78003040033 |
FOOTREST L/S + R/S CPL. 09 Price: Call Us |
| 46 |
50303089000 |
ANGLE PIECE '97 Price: Call Us |
| 47 |
55007016001 |
PVC-HOSE 7X10 PER METER Price: Call Us |
| 50 |
54803096000 |
SPROCKET COVER 250 SX 07 Price: Call Us |
| 59 |
77203053000 |
CHAIN SLIDER LOWER PART CPL. Price: Call Us |
| 62 |
77303139000 |
BLIND RIVET NUT EM6-60LF/HX Price: Call Us |
| 63 |
77203094000 |
PLASTIC FRAME PROTECTION SET Price: Call Us |
| 64 |
77203053010 |
CHAIN SLIDING KIT BELOW CPL.11 Price: Call Us |
