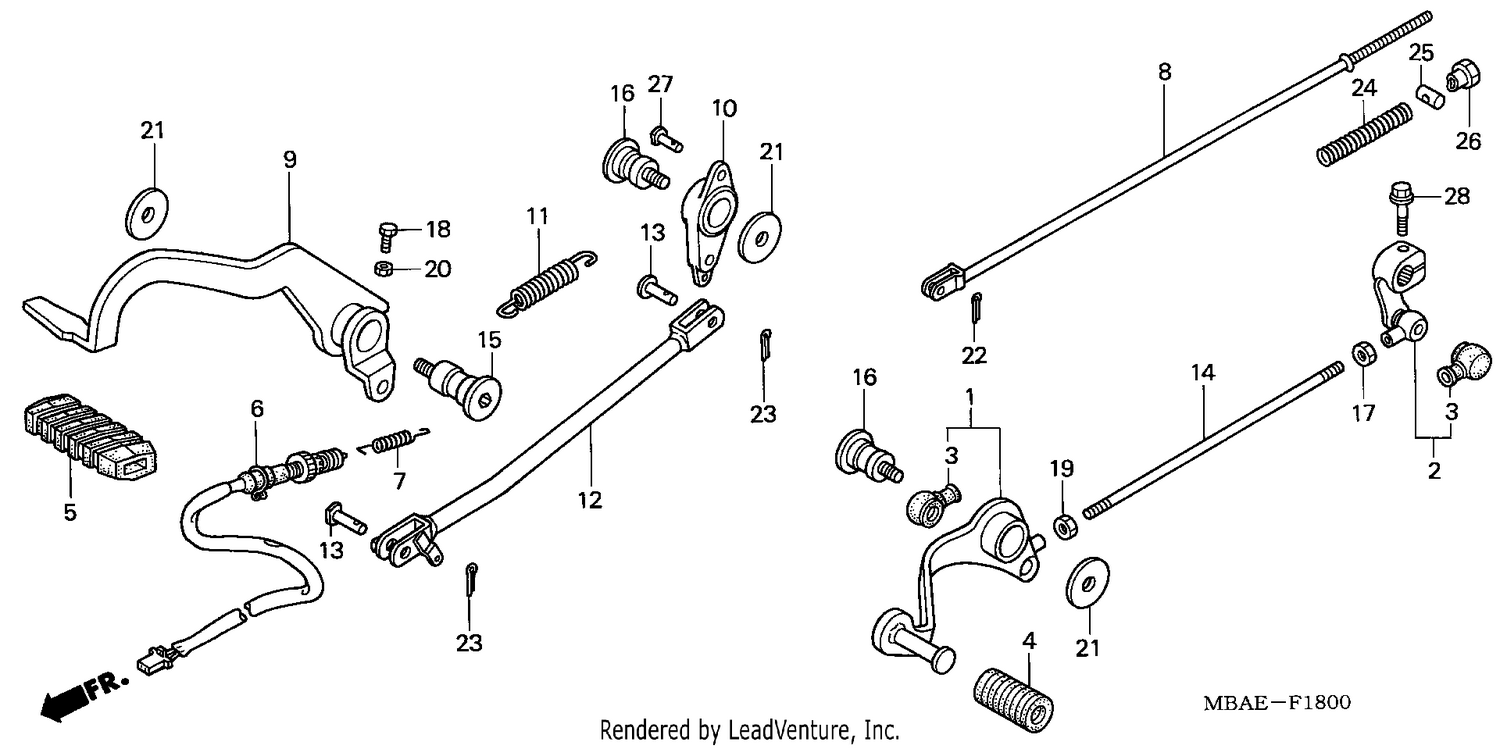

| Ref | Part Number | Description |
|---|
| 1 |
24705MBA670 |
PEDAL COMP., CHANGE Price: Call Us |
| 2 |
24710MBA670 |
ARM COMP., CHANGE Price: Call Us |
| 3 |
24724422000 |
COVER, DUST Price: Call Us |
| 4 |
24781KR3770 |
RUBBER, GEAR CHANGE PEDAL Price: Call Us |
| 5 |
24781MBA000 |
RUBBER, PEDAL Price: Call Us |
| 6 |
35350MBA610 |
SWITCH ASSY., RR. STOP Price: Call Us |
| 7 |
35357GS3000 |
SPRING, STOP SWITCH Price: Call Us |
| 8 |
43451MBA000 |
ROD COMP., RR. BRAKE Price: Call Us |
| 9 |
46501MBA670 |
PEDAL, RR. BRAKE Price: Call Us |
| 10 |
46510MBA300 |
ARM COMP., RR. BRAKE MIDDLE Price: Call Us |
| 11 |
46511KR6000 |
SPRING, BRAKE PEDAL Price: Call Us |
| 12 |
46540MBA000 |
ROD, RR. BRAKE MIDDLE Price: Call Us |
| 13 |
46545MBA000 |
PIN, MIDDLE ROD JOINT Price: Call Us |
| 14 |
90065MBA000 |
BOLT, TIE ROD Price: Call Us |
| 15 |
90115MBA000 |
BOLT, PEDAL PIVOT (A) Price: Call Us |
| 16 |
90116MBA000 |
BOLT, PEDAL PIVOT (B) Price: Call Us |
| 17 |
90201700000 |
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD) Price: Call Us |
| 18 |
92101060160G |
BOLT, HEX., 6X16 Price: Call Us |
| 19 |
94001060200S |
NUT, HEX., 6MM Price: Call Us |
| 20 |
94002060700S |
NUT, HEX., 6MM Price: Call Us |
| 21 |
9410310700 |
WASHER, PLAIN, 10MM Price: Call Us |
| 22 |
9420120120 |
PIN, SPLIT, 2.0X12 Price: Call Us |
| 23 |
9420120150 |
PIN, SPLIT, 2.0X15 Price: Call Us |
| 24 |
9501473100 |
SPRING A, BRAKE ROD Price: Call Us |
| 25 |
9501532001 |
JOINT B, BRAKE ARM Price: Call Us |
| 26 |
9501542000 |
NUT B, BRAKE ROD ADJUSTING Price: Call Us |
| 27 |
9501553000 |
PIN C, JOINT Price: Call Us |
