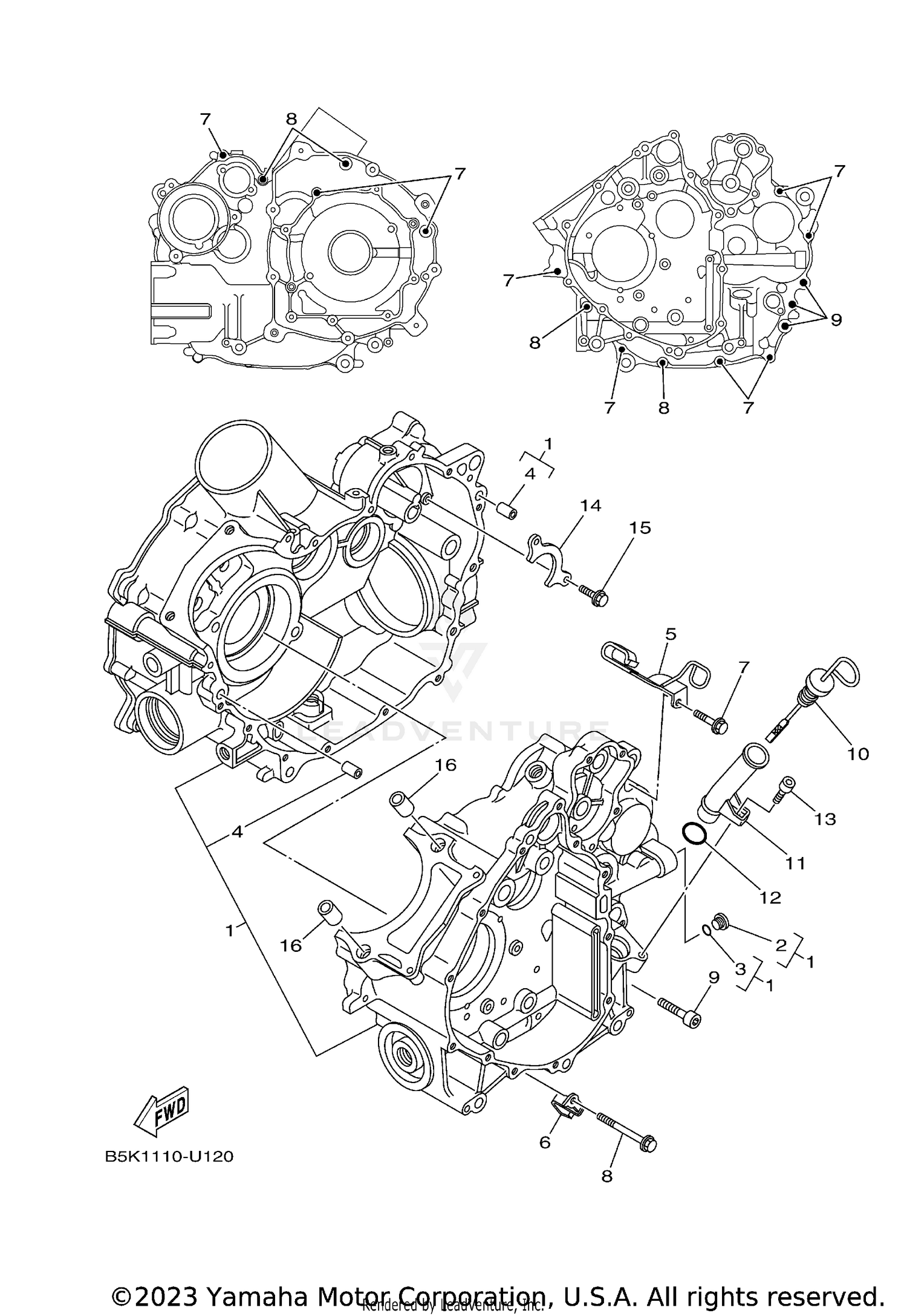

CRANKCASE
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3B4-15100-27-00 | CRANKCASE ASSY This part replaces 3B4-15100-28-00. Price: $1,699.99 |
| 2 | 36Y-15189-01-00 | PLUG This part replaces 36Y-15189-00-00. Price: $15.49 |
| 3 | 93210-16325-00 | O-RING Price: $8.49 |
| 4 | 99530-10116-00 | PIN, DOWEL Price: $4.40 |
| 5 | B5K-1546C-00-00 | HOLDER Price: $24.99 |
| 6 | 90462-08049-00 | CLAMP Price: $4.00 |
| 7 | 95022-06030-00 | BOLT, FLANGE Price: $1.80 |
| 8 | 95022-06060-00 | BOLT, FLANGE Price: $9.49 |
| 9 | 91314-08040-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 91312-08040-00. Price: $9.49 |
| 10 | 3B4-15362-01-00 | PLUG, OIL LEVEL Price: $28.99 |
| 11 | 3B4-15112-02-00 | PIPE, OIL Price: $41.99 |
| 12 | 93210-21631-00 | O-RING Price: $8.49 |
| 13 | 91317-06012-00 | BOLT This part replaces 91312-06012-00. Price: $9.49 |
| 14 | 3B4-15388-00-00 | PLATE, BEARING COVER Price: $4.25 |
| 15 | 95022-06020-00 | BOLT, FLANGE This part replaces 90105-06082-00. Price: $3.90 |
