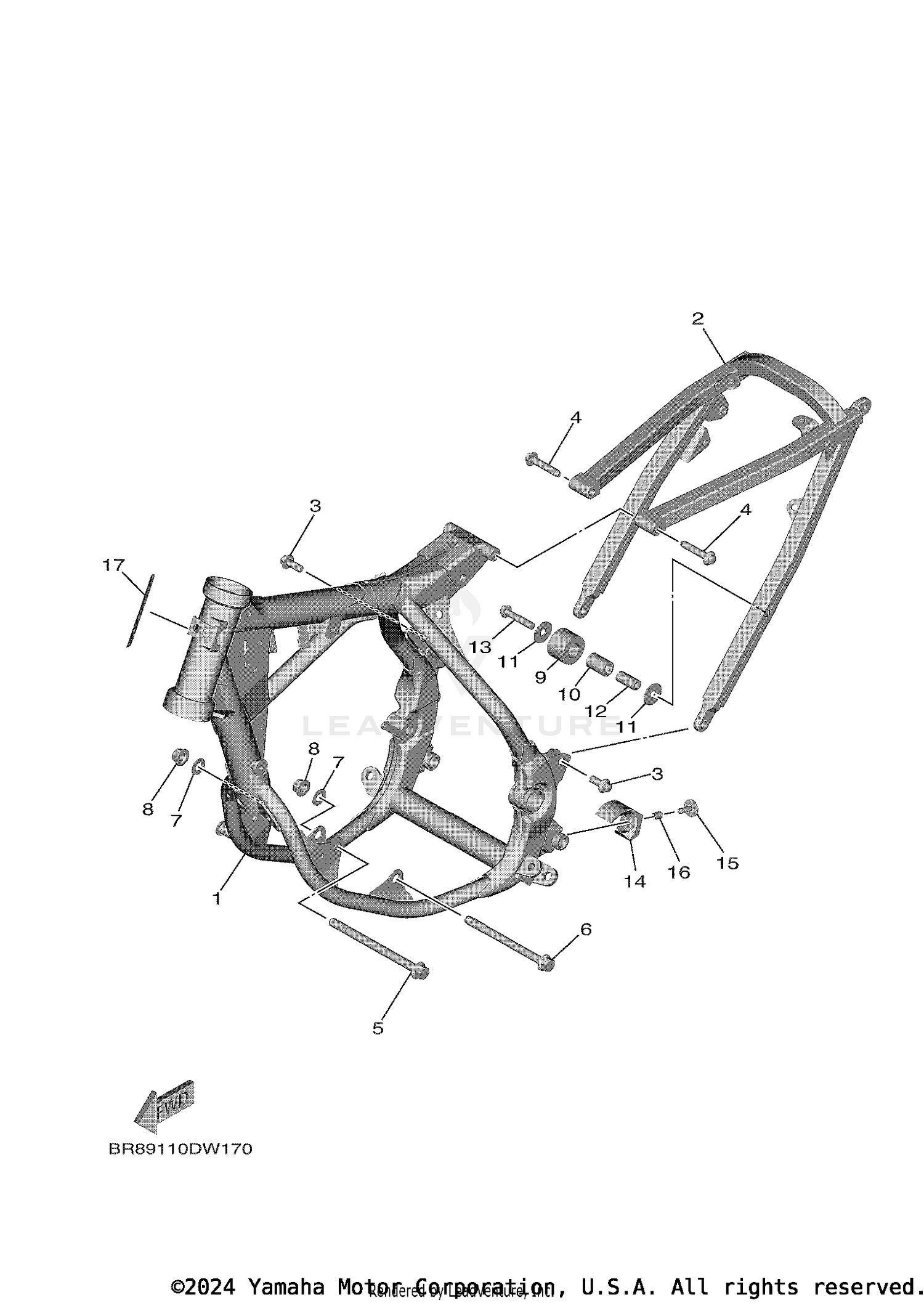

FRAME
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BR8-21101-01-00 | FRONT FRAME COMP. Price: $1,405.99 |
| 2 | BR8-21190-00-00 | REAR FRAME COMP. Price: $292.99 |
| 3 | 90105-08307-00 | BOLT, FLANGE Price: $10.49 |
| 4 | 90105-08231-00 | BOLT, FLANGE Price: $3.85 |
| 5 | 90105-10148-00 | BOLT, FLANGE Price: $8.49 |
| 6 | 90105-10174-00 | BOLT, FLANGE Price: $12.49 |
| 7 | 90201-10045-00 | WASHER, PLATE Price: $9.49 |
| 8 | 90179-10024-00 | NUT Price: $11.49 |
| 9 | 30X-22178-00-00 | TENSIONER Price: $38.99 |
| 10 | 4V4-22184-00-00 | BUSH Price: $4.80 |
| 11 | 90201-08045-00 | WASHER, PLATE Price: $6.49 |
| 12 | 90387-08041-00 | COLLAR Price: $9.49 |
| 13 | 95E32-08040-00 | BOLT, FLANGE DEEP RECESS Price: $0.95 |
| 14 | 4ES-22178-01-00 | TENSIONER Price: $9.49 |
| 15 | 90119-06200-00 | BOLT, WITH WASHER Price: $9.49 |
| 16 | 90387-064T3-00 | COLLAR Price: $8.49 |
