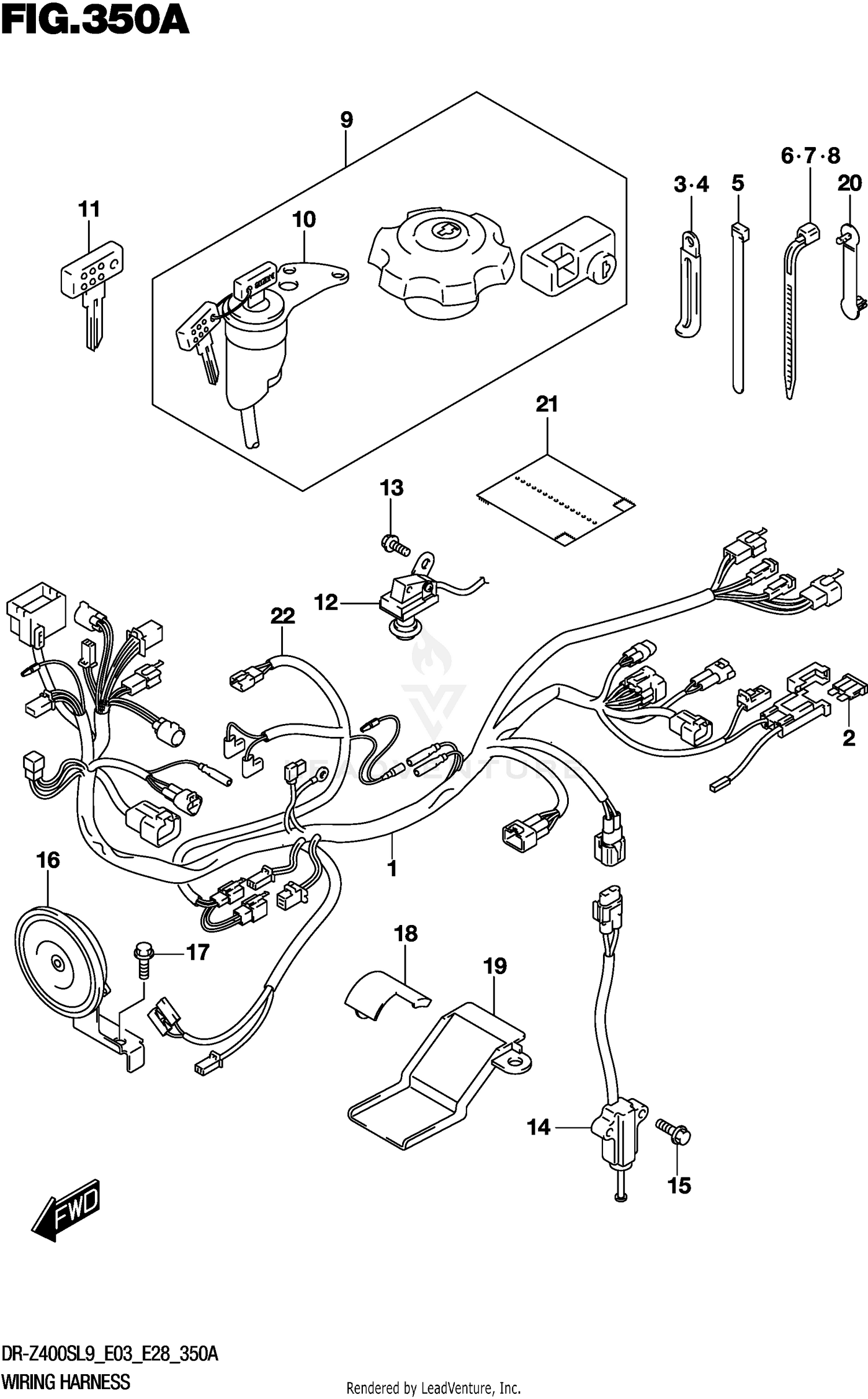

WIRING HARNESS (DR-Z400SL9 E03)
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 36610-29FF1 | HARNESS WIRING This part replaces 36610-29FF0. Price: $346.69 |
| 2 | 09481-20101 | FUSE (20A) Price: $2.58 |
| 3 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
| 4 | 09404-06036 | CLAMP(L:80) This part replaces 09404-06433. Price: $2.12 |
| 5 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 6 | 09407-14403 | CLAMP (L:125) Price: $2.72 |
| 7 | 09407-18402 | CLAMP (L:165) Price: $2.68 |
| 8 | 09407-25401 | CLAMP (L:235) Price: $5.68 |
| 9 | 37000-29824 | LOCK SET This part replaces 37000-29821. Price: $218.56 |
| 10 | 37110-29F01 | SWITCH ASSY,IGN This part replaces 37110-29F00. Price: $149.57 |
| 12 | 37740-29F00 | SWITCH ASSY Price: $139.92 |
| 13 | 02162-0608B | SCREW Price: $2.68 |
| 14 | 37840-11X52 | SWITCH ASSY,SID This part replaces 37840-11X50. Price: $85.53 |
| 15 | 01550-0616A | BOLT Price: $2.37 |
| 16 | 38500-29F01 | HORN ASSY Price: $91.97 |
| 17 | 01550-0612A | BOLT Price: $2.37 |
| 18 | 36611-29F10 | PROTECTOR WIRING HARNESS Price: $6.72 |
| 19 | 36611-29F00 | PROTECTOR WIRING HARNESS Price: $9.73 |
| 20 | 36651-48E00 | CLAMP (L:63) Price: $3.51 |
| 21 | 36618-15D21 | COVER WIRING HARNESS This part replaces 36618-15D20. Price: $20.38 |
